Copyright © 1999 U 262 -06/99 3 of 4
Room Temperature Unit (RTU) 062, 063
A single RTU may be connected to the Boiler Control 262 in order to provide the control with indoor temperature
feedback for a single zone heating system in Mode = —1— (Refer to Essay E 002). When multiple zones are
required for the heating system, use either a tekmar Zone Control or, through the boiler demand input, on/off
zone control. When using an RTU, several items related to the heating system are no longer available in the
control’s User Interface. These items are available only in the RTU’s User Interface. Also, the number of items
that are available on the RTU depends on the type of RTU that is connected to the control.
35 to 85˚F
(2 to 29˚C)
Current room air temperature.
14 to 167˚F
(-10 to 75˚C)
Target room air temperature.
-67 to 149 °F
(-55 to 65 °C)
Current slab sensor temperature. This item is only available if a
tekmar slab sensor is connected to a RTU 063. -58 to 167 °F
(-50 to 75 °C)
262 RTU View Menu Item
LT
D
USER
Range
062 063
• • • •
• • •
• • • •
• •
NONE, TMPY Occ, PERM
Occ, TMPY UnOcc, PERM
UnOcc, AWAY
•
262 Schd (Schedule) Menu Item
LT
D
USER
Range
None – No override. TMPY Occ – Overrides to Occupied setting for 3 hours. PERM Occ – Overrides to Occupied setting until
new override is selected.
TMPY Unocc – Overrides to Unoccupied for 3 hours. PERM Unocc – Overrides to Unoccupied setting
until new override is selected. AWAY – Room & WWSD temperature at 62 °F (17°C), no DHW.
Current outdoor air temperature as measured by the outdoor sensor.
Note: Depending on the settings the installer set in the control, certain menu items may not appear.
-67 to 149˚F
(-55 to 65˚C)
-67 to 149˚F
(-55 to 65˚C)
The highest DHW tank temperature since this item was last cleared.
To clear this item, press both the and buttons until ‘CLR’ is
displayed.
The lowest DHW tank temperature since this item was last cleared.
To clear this item, press both the and buttons until ‘CLR’ is
displayed.
0 to 255˚F
(-18 to 124˚C)
0 to 255˚F
(-18 to 124˚C)
• •
• •
• •
• •

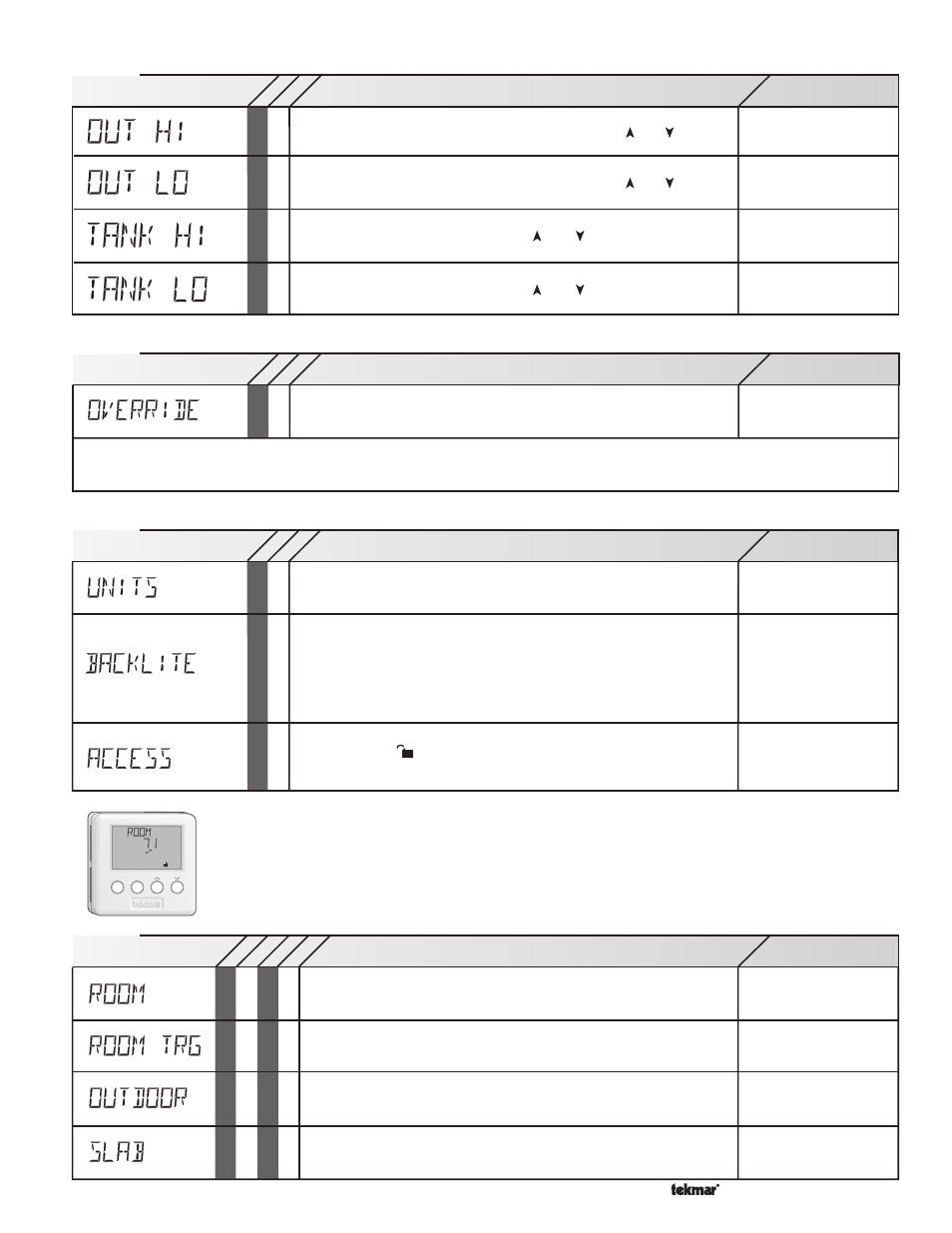

262 Monitor Menu Item
LT
D
USER
Range
The highest outdoor air temperature recorded since this item was
last cleared. To clear this item, press and hold the and buttons
until ‘CLR’ is displayed.
The lowest outdoor air temperature recorded since this item was
last cleared. To clear this item, press and hold the and buttons
until ‘CLR’ is displayed.
Item Menu
UnOc 1
°F
Vie
Hea
The units of measurement in which all of the temperatures are to be
displayed by the control.
˚F, ˚C
•
•
The operating mode for the back lighting of the LCD and the time
until the control returns to the view menu after any button was
pressed.
If Backlight is set to OFF, the control returns after 10
seconds and the backlight stays off. If Backlight is set to 30 SEC,
the control returns after 30 seconds and the backlight stays on for
30 seconds after any button press.
If Backlight is set to ON, the
control returns after 90 seconds and the backlight stays on.
OFF, 30 sec, ON
• •
The access level that is to be used by the control.
DIP switch =
Only qualified service people should adjust items in the ADV (Advance)
and INST (Installer) access levels.
ADV, INST, USER, LTD
262 Misc (Miscellaneous) Menu Item
LT
D
USER
Range
The type of setback override that is in effect.
DIP switch = Setback
AWAY is available even if DIP ≠ Setback
