2. Using an HDMI cable (not included)

For TVs that support it, HDMI can provide the

best quality audio and video output (depending

on media source), and so is the preferred

connection type. The HDMI cable incorporates

both audio and video signals, so you will have

just one cable running from the unit to your TV.

Using an HDMI cable (not included), connect

the HDMI OUT jack on your unit to the HDMI IN

jack on your TV or HDMI-compatible display.

• Configure the Video Setup options (found

in the SETUP menu) to best match the

capabilities of your TV.

• Set the HDMI resolution to match the capabilities of your TV. This setting is also in the Video

Setup section of the SETUP menu. Note: this setting can be selected only when the HDMI cable

is connected to a TV.

Note:

• Refer to your TV owner’s manual as well.

• When you connect the player to your TV, be sure to turn off the power and unplug both units from

the wall outlet before making any connections.

• When a HDMI cable is connected, the unit's speaker will be mute and the audio are output from

the connected device.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered

trademarks of HDMI licensing LLC.

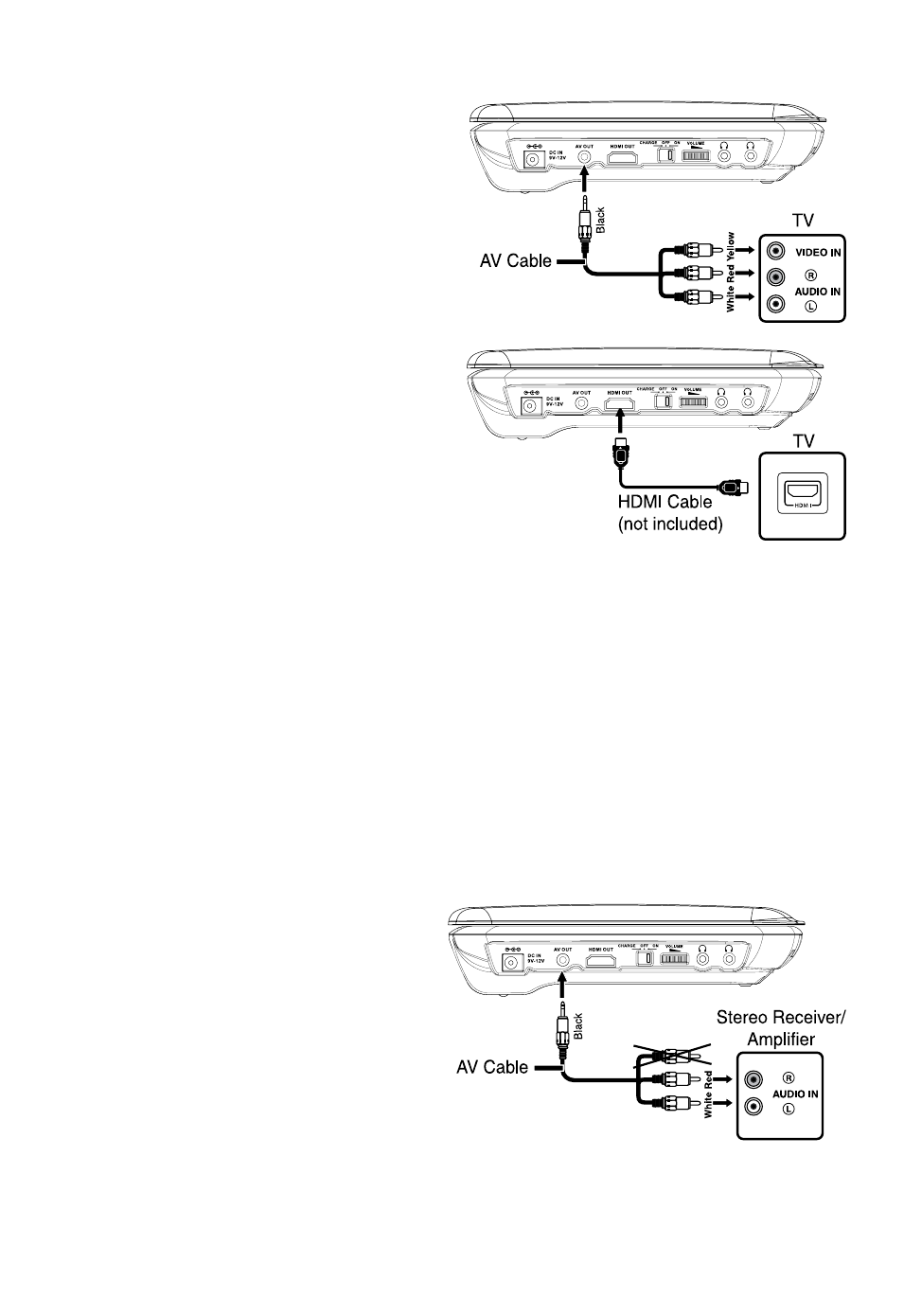

A. Connecting to a TV
1. Using the supplied AV cable

If your TV has Audio/Video inputs, you can

connect the player to your TV using the supplied

AV cable.

B. Connecting an Audio Receiver

This player will down-mix Dolby Digital or

DTS multi-channel audio to stereo audio for

playback on the player's internal speakers or

for output to a connected amplifier.

Listening on External Audio Equipment

1. Connect the player to the left/right Audio

In jacks on the other equipment using the

included AV cable.

2. Turn on your audio equipment and follow

the instructions provided with it to select the

AUDIO IN function. Unit's speaker will be

mute and the audio are output from the connected device

Note:

• Make sure to use the correct cable. Connecting the plugs incorrectly may cause lack of signal, or

weak signal.
