7
Quick Start Guide

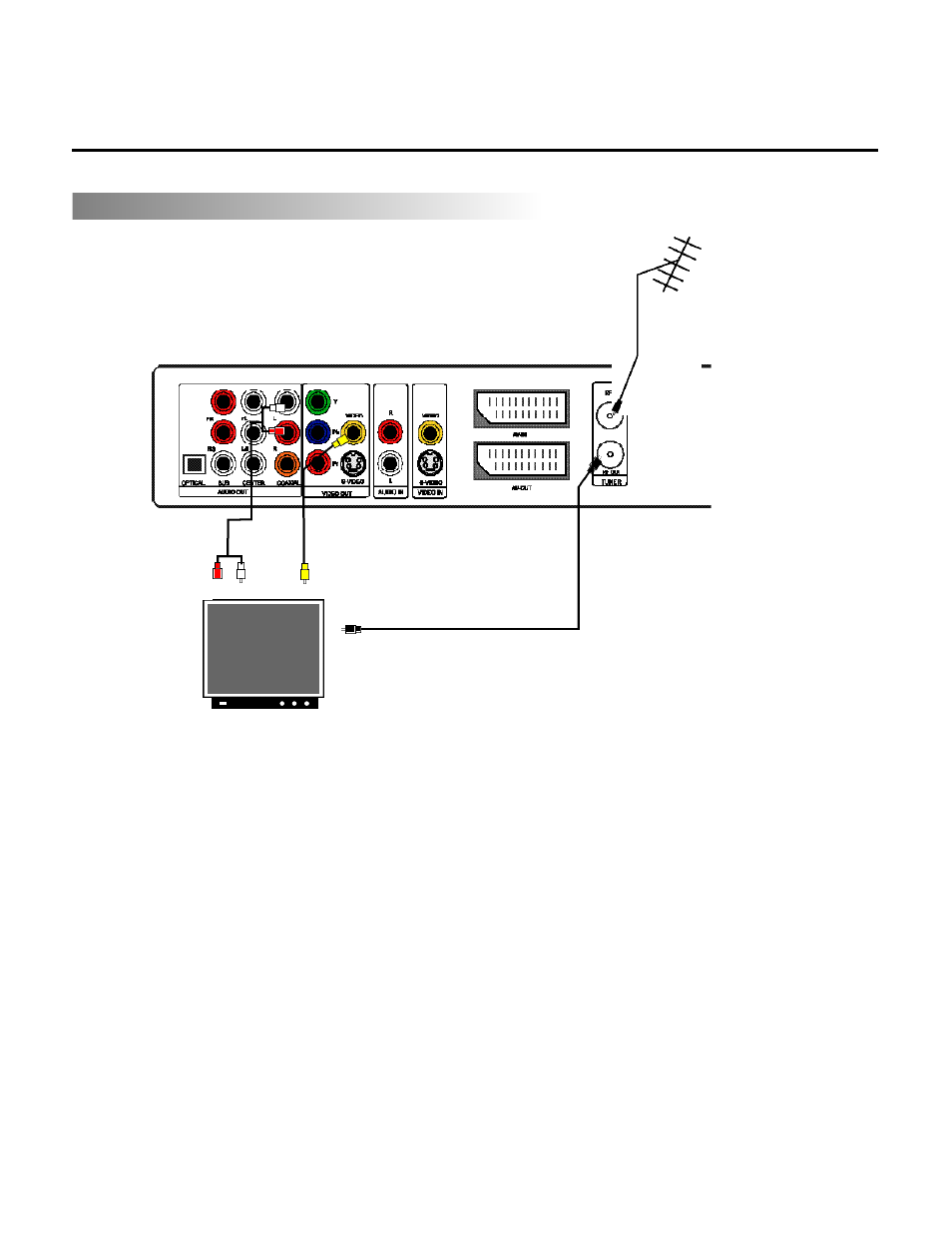

CONNECTING TO TV TUNER
Video output from your
recorder to RCAphono video
input (yellow) on TV. Audio output from your
recorder to RCAphono
left/right audio inputs
(white/red) on TV.
To transfer TV signal through your recorder:
1. Remove the aerial cable plug from your TV set. Insert it into the RF IN socket on the rear panel of your
recorder.
2. Insert one end of an aerial cable into the RF OUT socket on the rear panel of your recorder and the other end
into the aerial input socket on the TV set.
There are several connection options for audio/video output (details see the chapter “Connection for
Playback”) to a TV set or audio system, the connection mode illustrated above is for analogue AV:
3. Insert one end of the supplied video cable into the VIDEO socket in the frame VIDEO OUT on the rear panel
of the recorder and the other end into video socket on the TV set.
4. Insert one end of the red/write audio cable into the socket L(left) / R (right) respectively, and the other end into
the corresponding socket on the TV set.
Then, insert the power plug of the recorder to the mains socket, and power on both your recorder and TV
set.
TVsignal input from the
antenna or CATV to the jack
RF IN on your recorder.
TV signal in
TV signal out
Note
• Refer to the manual of the connected system.
• Turn off the power and unplug both units before setting up any connections.
