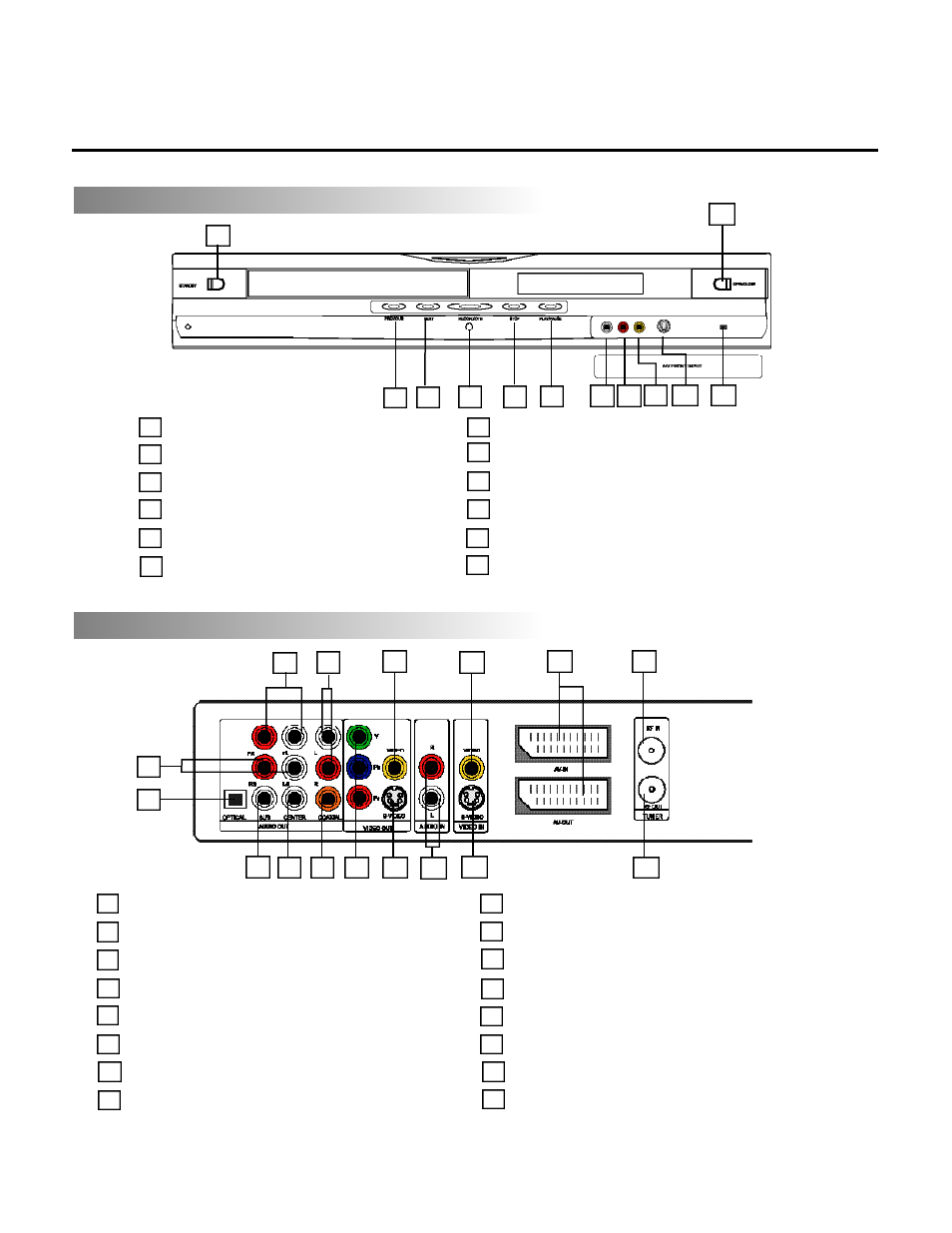

Recorder Overview
FRONT PANEL
REAR PANEL
1
1 AUDIO OUTPUT (FRONT LEFT, RIGHT)
2 AUDIO OUTPUT (SURROUND LEFT, RIGHT)
3 ANALOG AUDIO OUTPUT LEFT, RIGHT
4 DIGITAL AUDIO-OPTICAL OUTPUT
5 SUBWOOFER
6 AUDIO OUTPUT (CENTER)
7 DIGITAL AUDIO-COAXIAL OUTPUT
8 COMPONENT VIDEO OUTPUT (Y, Pb, Pr)
9 COMPOSITE VIDEO OUTPUT
10 S-VIDEO OUTPUT
11 COMPOSITE AUDIO INPUT (LEFT, RIGHT)
12 COMPOSITE VIDEO INPUT
13 S-VIDEO INPUT
14 21-PIN SCART SOCKET (AV-IN, AV-OUT)
15 RF SIGNAL INPUT
16 RF SIGNAL OUTPUT
2
3
4
5 6 7 8
9
10 11
12
13
14 15
16
2 3
1
4 5 6 7 8 9 10
1 STANDBY
2 PREVIOUS
3 NEXT
4 RECORD/OTR
5 STOP
6 PLAY/PAUSE
7 AUDIO INPUT (FRONT LEFT)
8 AUDIO INPUT (FRONT RIGHT)
9 COMPOSITE VIDEO INPUT (FRONT)
10 S-VIDEO INPUT (FRONT)
11 OPEN/CLOSE
12 I.LINK DV
