Connection for Playback

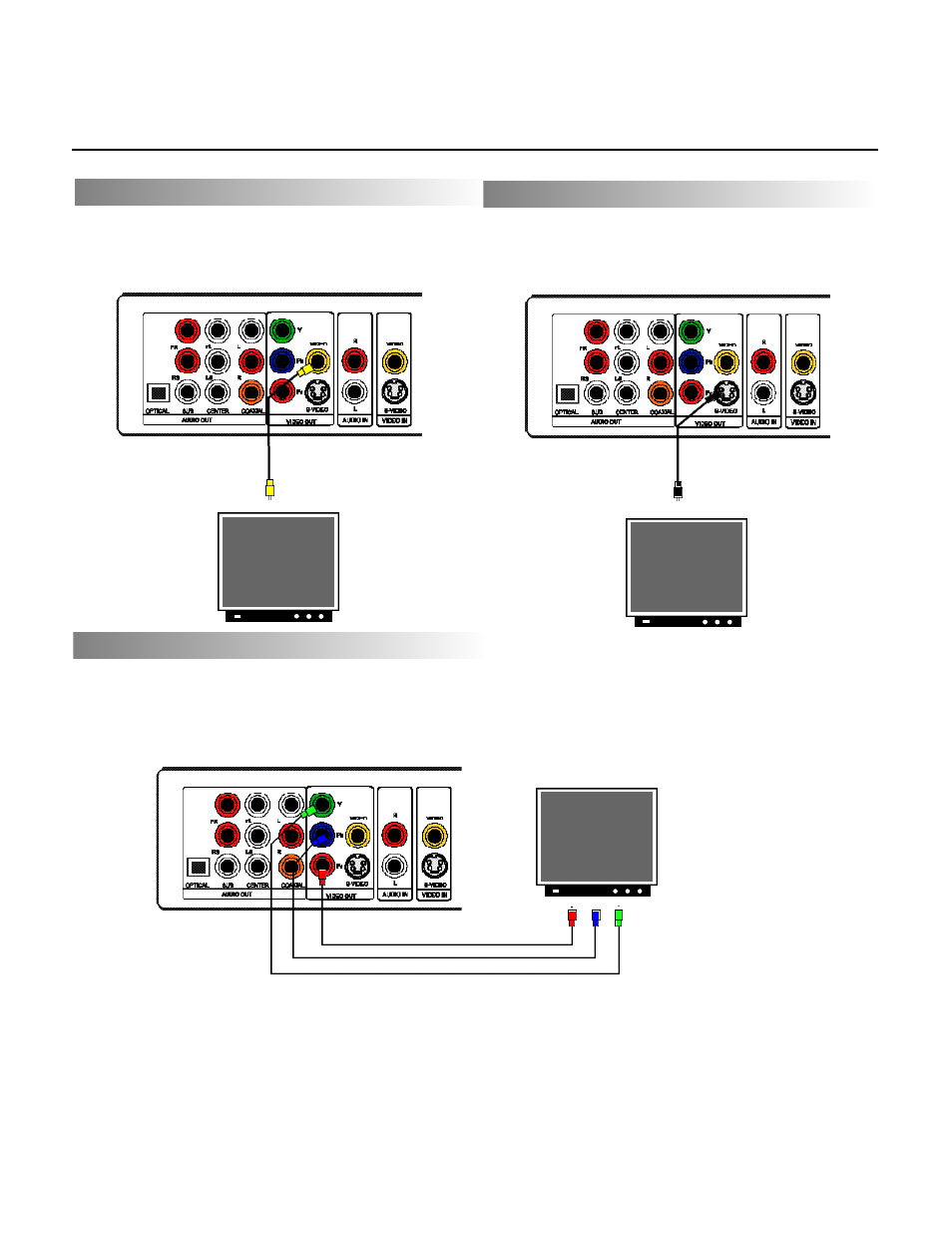

VIDEO OUTPUT (GOOD)
With the supplied yellow video cable, connect your
recorder from the video output jack to your TV’s video
input jack.
Video output from your
recorder to RCAphono video
input (yellow) on TV.
VIDEO OUTPUT (BETTER)
Connect your recorder with the S-Video cable, if the TV
has an S-Video input. Do not connect the yellow video
cable if using the S-Video cable.
Stereo jack plug S-Video
output from the recorder to S-
Video on TV.
COMPONENT VIDEO OUTPUT (BEST)
The Component Video output allows you to enjoy the best picture quality from a DVD video disc.
Progressive scan creates a picture with double the scan line of traditional video pictures and provides a sharper
image. The advantages of progressive scan video output are reduced picture flickering, motion artifacts and the finest
detail on large screen HDTV sets.
Connect your recorder with Y Video, Pr Video and Pb Video, if TV has Progressive Scan or Component Video Input.
Press I/P button on the remote to switch between Progressive Scan or Interlace Scan, or switch these two modes from
the Setup Menu: Init Setup-- Video Setup Page -- TV Mode -- Interlace/P-SCAN.
Pb VIDEO OUT
Pr VIDEO OUT
Y VIDEO OUT
Note
• Refer to the manual of the connected system.
• Turn off the power and unplug both units before setting up any connections.
