LOUDSPEAKER OVERVIEW
DRIVER COMPLEMENT I20/I30
The numbers in Figure 3 (left) correspond with the
numbered items in this section.
1. Tweeter
• 1-inch (25mm) titanium dome
• Under-hung with copper-clad aluminum
wire for low distortion
• Ferrofluid for high-power handling with
reduced compression
2. Woofer
• 7.5-inch (190.5mm)/9-inch (228.6mm)
cones constructed with Organic Ceramic
Composite cone material for low distortion
• True pistonic operation for increased free-
dom from coloration
• Symmetrical Field Gap design for low over-
all distortion
• Aluminum ring for flux stabilization great-
ly reduces distortion at low frequencies
• Butyl rubber surround for large, linear
excursion capabilities
• Carbon composite aluminum (CCA) flat-
wire voice coil wound on a 1.5-inch
(38.1mm) fiberglass bobbin for low mass
and higher power handling
• Vented center pole for improved heat dissi-
pation and low compression
Continued on next page
REVEL I20/I30 In-wall
Owner’s Manual

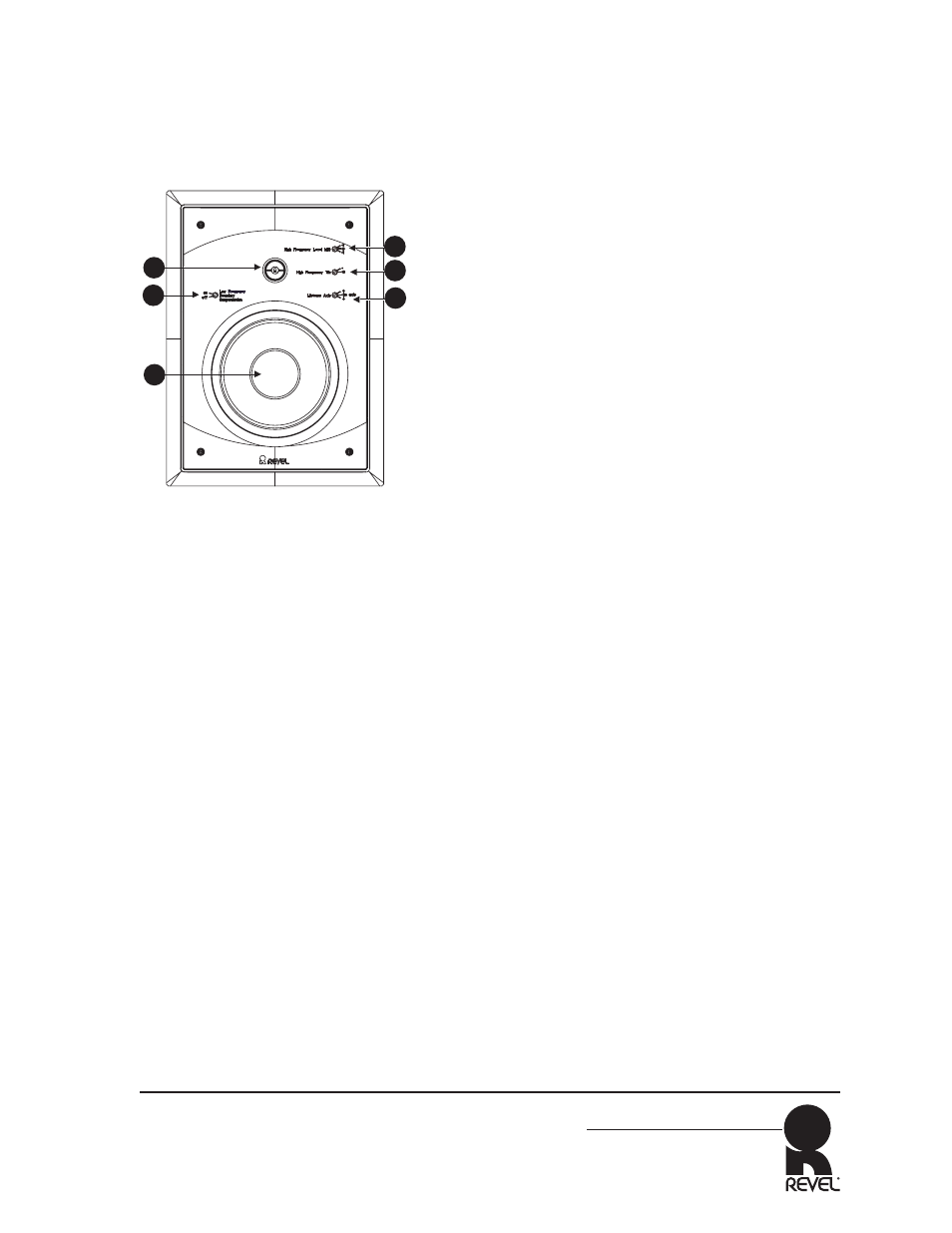

Figure 3: I20 Speaker (Front View)
The numbers in Figure 3 (above) correspond
with the numbered items in the Driver
Complement section that begins in the next
column.
5
4
3
1
2
6
