7. Insert the Frame Alignment tool hori-
zontally into the center of the frame.
This tool functions as a frame spreader,
while the clamps are being tightened,
as shown in Figure 15 (above).
8. Starting from the lower right corner
and working in a diagonal torque
sequence, use a power screwdriver to
tighten each of the clamp screws (only
until almost snug). If needed, adjust
the mounting frame so it is level and
centered in the cutout.
9. Perform a final torque sequence.
Hand-tighten frame screws and check
each screw at least twice to make sure
they are fully tightened to prevent
rattles.
10. Remove the Frame Alignment Tool.
11. Place the included fiberglass insulation
in the back of the mounting frame as
shown in Figure 16 below. If desired,
cut an “x” into the insulation and
thread wire(s) through.
12. Make speaker wire connections. Refer
to the Making Connections section on
page 16 for instructions.
13. Slide the baffle into place into the
mounting frame.
Continued on next page
Mounting Frame
Clamp
Frame
Alignment Tool

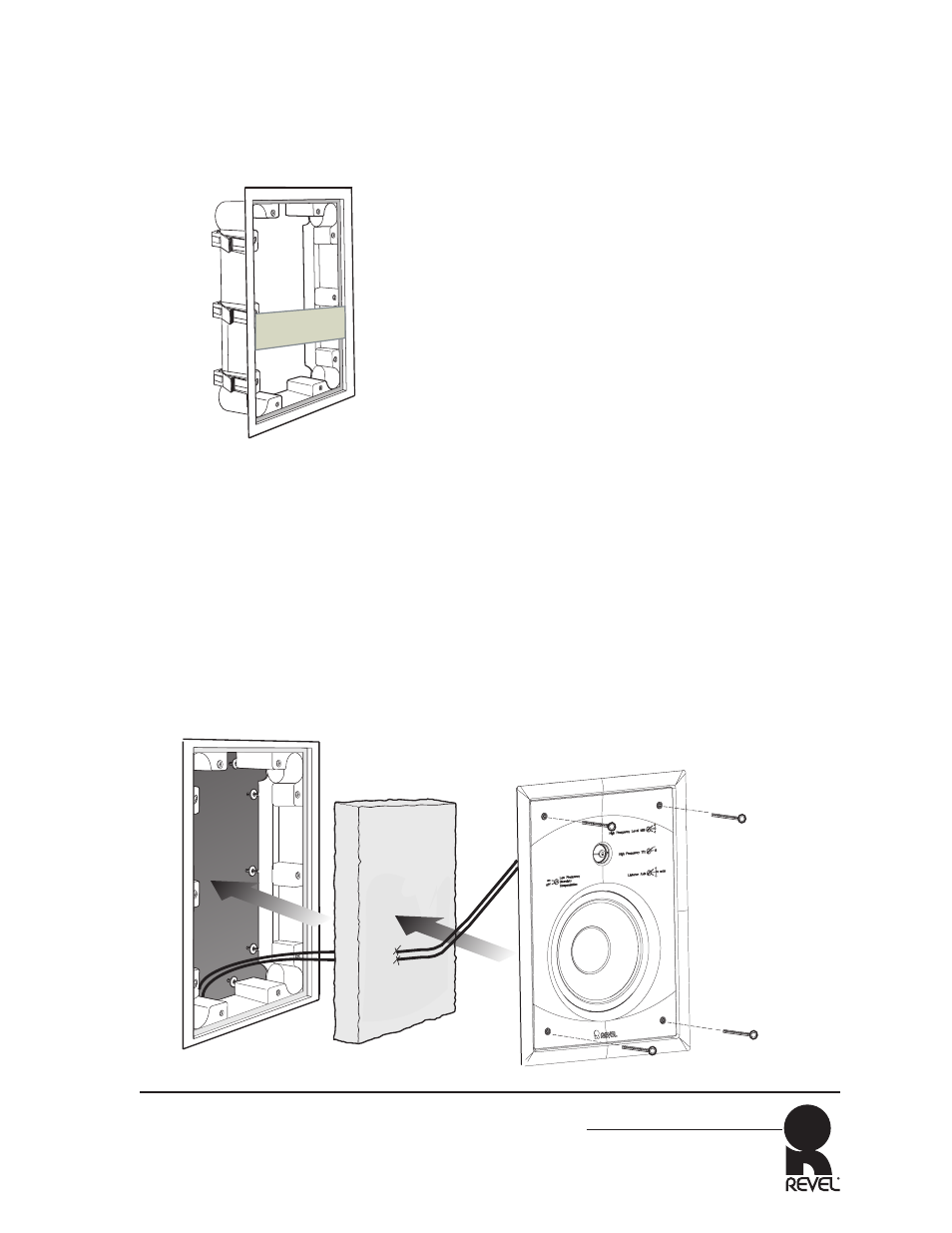

Figure 15: Frame Alignment Tool
Figure 16: Install the Insulation and Baffle
Baffle
Assembly
Thread Speaker Wires
Fiberglass Insulation
Allen Head
Screws
Installation Instructions
(continued)
