21
Grille Removal
To remove the grille:
1. Insert the small end of the included
1/16-inch allen key into one of the
metal mesh holes in the top corner of
the grille as shown in Figure 20
(below).
2. With the end of the allen key in the
grille hole approximately 1/8-inch,
with thumb and forefinger close to the
grille, pull up on the allen key to
wedge it into the grille hole.
3. Gently pull the allen key to partially
pop out the corner of the grille.
4. Repeat steps 1 to 3 for the other top
corner.
5. Apply steps 1 to 4 for the bottom
corners.
6. When all corners are partially popped
out, the grille can easily be removed.
CAUTION
Do not attempt to pry the grille out
using the allen key (or any other
object) as a pry bar against the plastic
frame.This will cause damage to the
frame and mar the paint.
Speaker Frame Removal
To remove the speaker frame from wall
opening:
1. Fully unscrew all of the clamps around
the speaker housing. The clamp screws
have an acorn nut attached on their
end to prevent accidental disassembly.
2. Move the speaker housing away from
the wall enough to wedge your hand
behind and pinch a clamp shut.
3. While the clamp is shut, work the
speaker housing forward enough to
catch the shut clamp in the wall open-
ing.
4. Work around the perimeter, carefully
closing each clamp and then slowly
pull the speaker housing from the wall.
LOUDSPEAKER VOLUME LEVELS
High-order filters include steep cut-offs to
reduce potential damage from “out-of-
band” frequencies. Combined with careful-
ly selected transducers and filter network
components, this approach helps the
I20/I30 to maintain its performance under
extreme operating conditions.
However, all loudspeakers have limits
when it comes to continuous playback. To
extend these limits, avoid playback at
volume levels that distort or strain sound.
REVEL I20/I30 In-wall
Owner’s Manual
Grille
1/16-inch Allen key
Frame

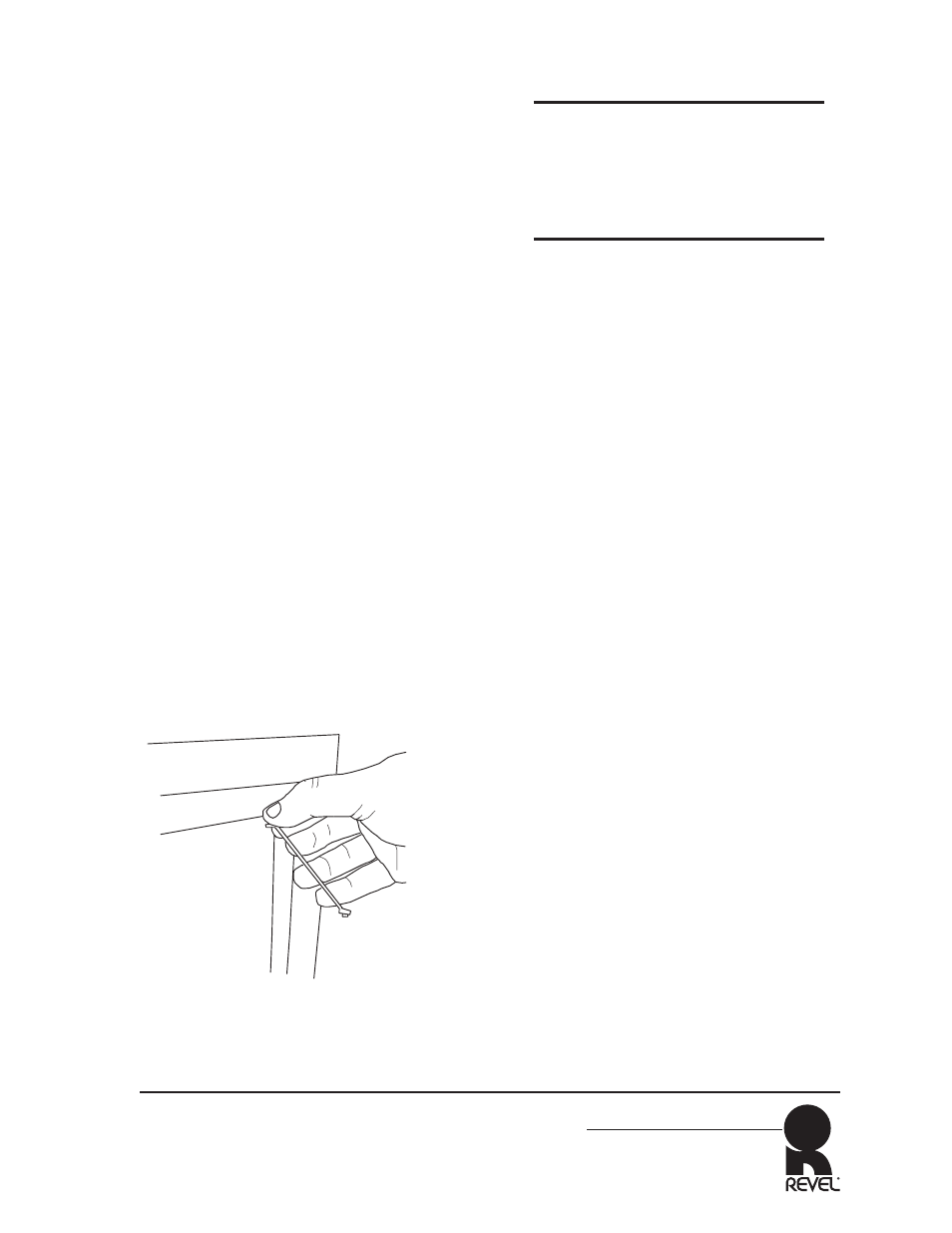

Figure 20: Removing the Grille
