INPUT PANEL
Number 1 in Figure 5 (below) corresponds
with the numbered item below.
1. Input Connectors
Provide input connections from the
associated power amplifier/receiver(s).
One positive (+) and one negative (-)
gold-plated binding post is available.
Refer to the Making Connections sec-
tion that begins on page 16 for addi-
tional information.
INSTALLATION
CONSIDERATIONS
Loudspeaker fidelity depends on the following
three factors:
1. Loudspeaker accuracy
2. Loudspeaker placement
3. Listening room acoustics
Advanced Revel design features allow the
I20/I30 to achieve exceptional acoustical
precision. However, proper placement and
listening room acoustics have a significant
impact on the I20/I30’s performance.
Caution
• The I20/I30 should be installed by a
professional.
• Installers must adhere to local build-
ing codes to ensure a proper installa-
tion. Harman Specialty Group is not
responsible for any possible damages
caused by improper installation.
Continued on next page
REVEL I20/I30 In-wall
Owner’s Manual
1
1
I20
I30

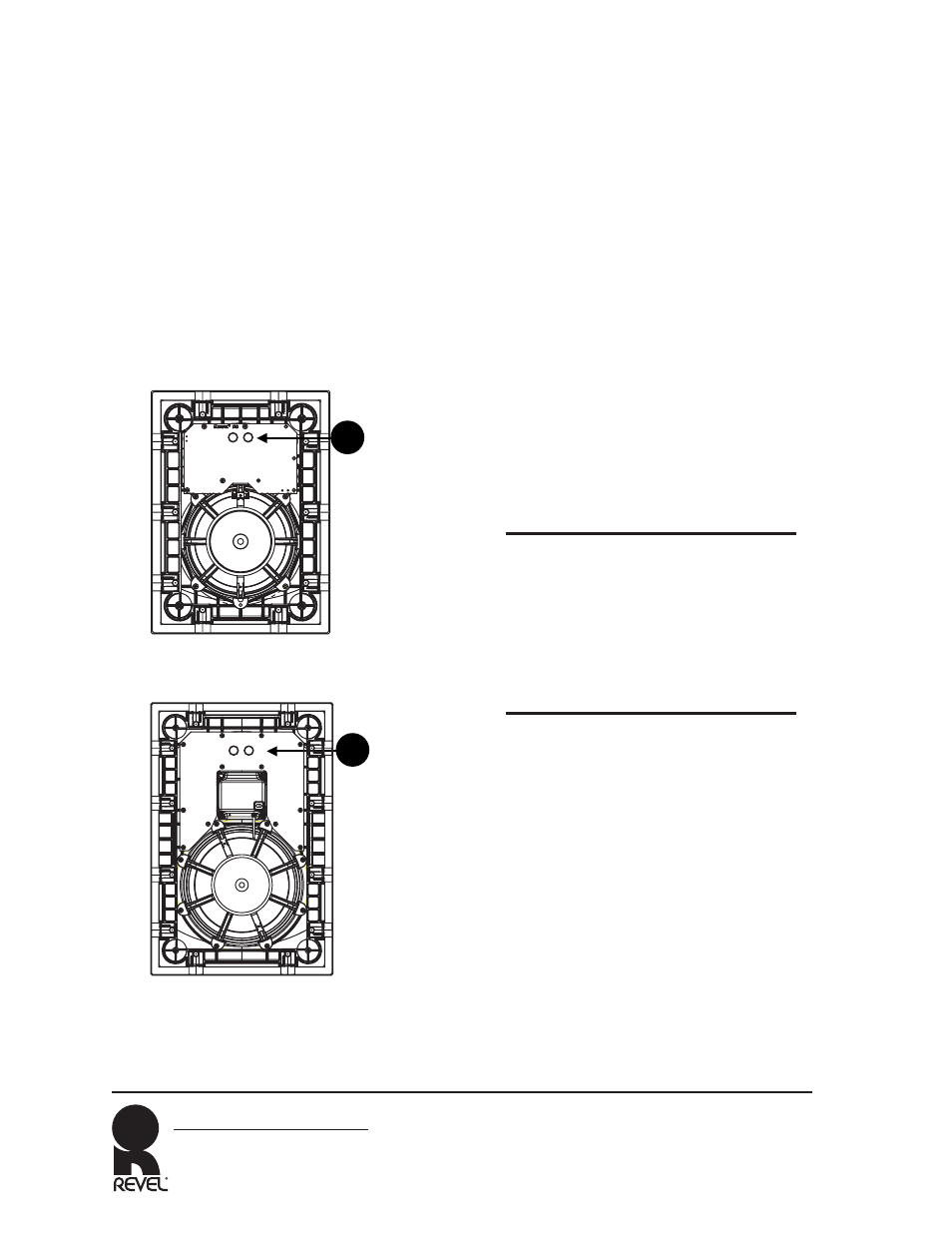

Figure 5: Rear of I20/I30
