12
• The rear speakers should be placed
along the rear wall facing the front of
the room. Each rear speaker should be
about one-third of the way into the
room as shown in Figure 8 (above).
INSTALLATION
INSTRUCTIONS
For installations in new construction proj-
ects, use the Revel I20/I30 In-Wall Rough-
in bracket which should be installed by a
professional. Refer to the Revel I20/I30 In-
Wall Rough-in Bracket Installation
Instructions for more information.
The Revel I20 and I30 in-wall speakers
were designed to be easily installed into
existing walls. It is recommended that they
be professionally installed. The following
tools are required for installation:
• (4) allen head screws (included)
• 5/32-inch allen key (included)
• 1/16-inch allen key (included)
• cardboard installation template
(included)
• pencil
• Phillips head screwdriver
• measuring tape
• utility knife
• carpenter’s level
• flat blade screwdriver
• stud finder
To install the I20/I30:
1. Locate the wall studs.
2. Use the supplied template to trace an
outline to mark the desired location to
mount the speaker system. Use caution
to cut the hole approximately centered
between wall studs, allowing at least
1-inch between the cutout and wall
studs as shown in Figure 9 (below).
Use carpenter’s level to ensure a level
measurement.
Continued on next page
Revel I20/I30 In-wall
Owner’s Manual
At least
1-inch At least
1-inch

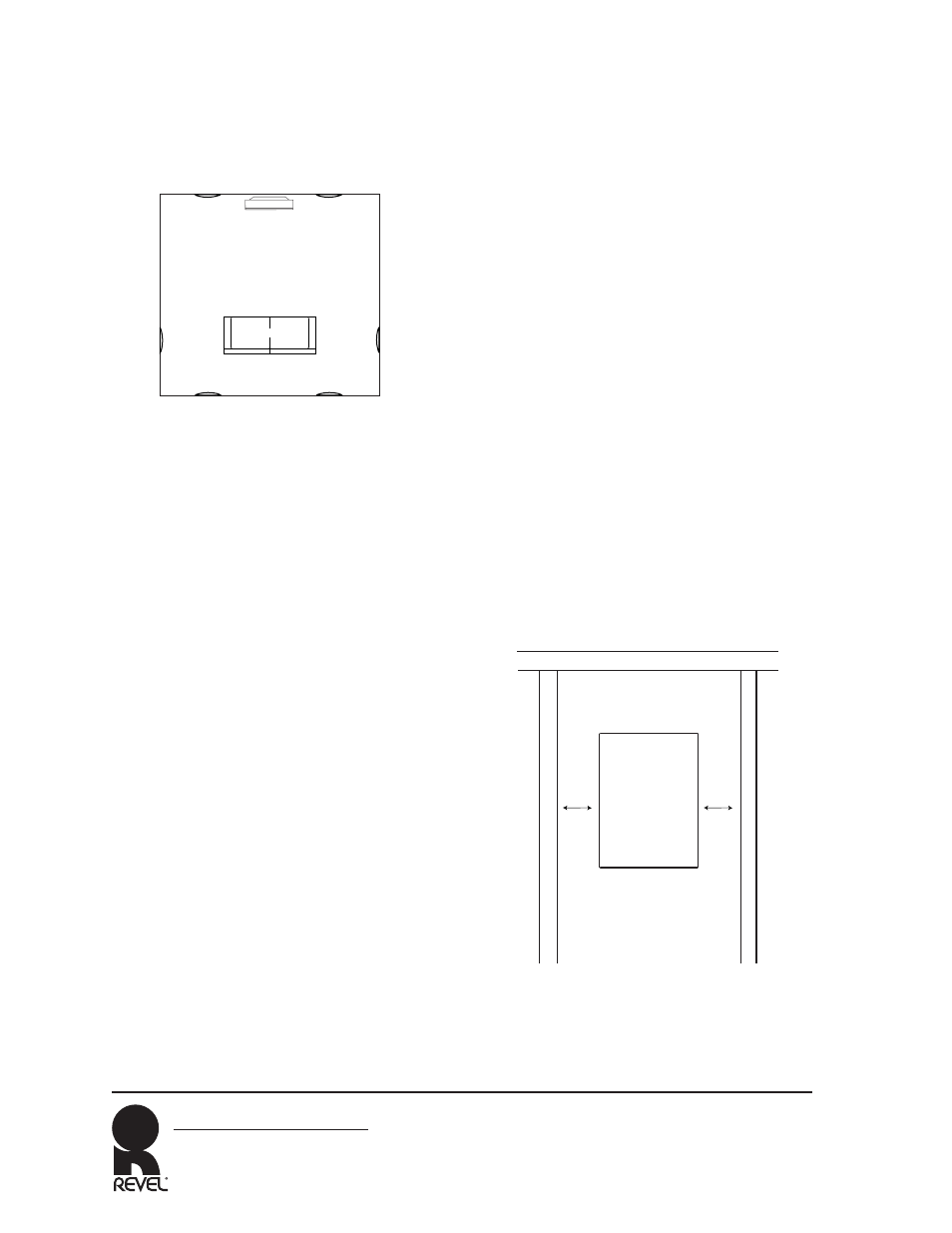

Figure 9: Use wall template
Loudspeaker Placement
(continued)
Front
Right
TV
Front
Left
Left
Side
Right
Side
Left
Rear
Right
Rear
Couch
Figure 8: Surround Channels with Rear Speakers
