Kino Flo Blanket Light 6X6 DMX - Manual (Page 3)

3

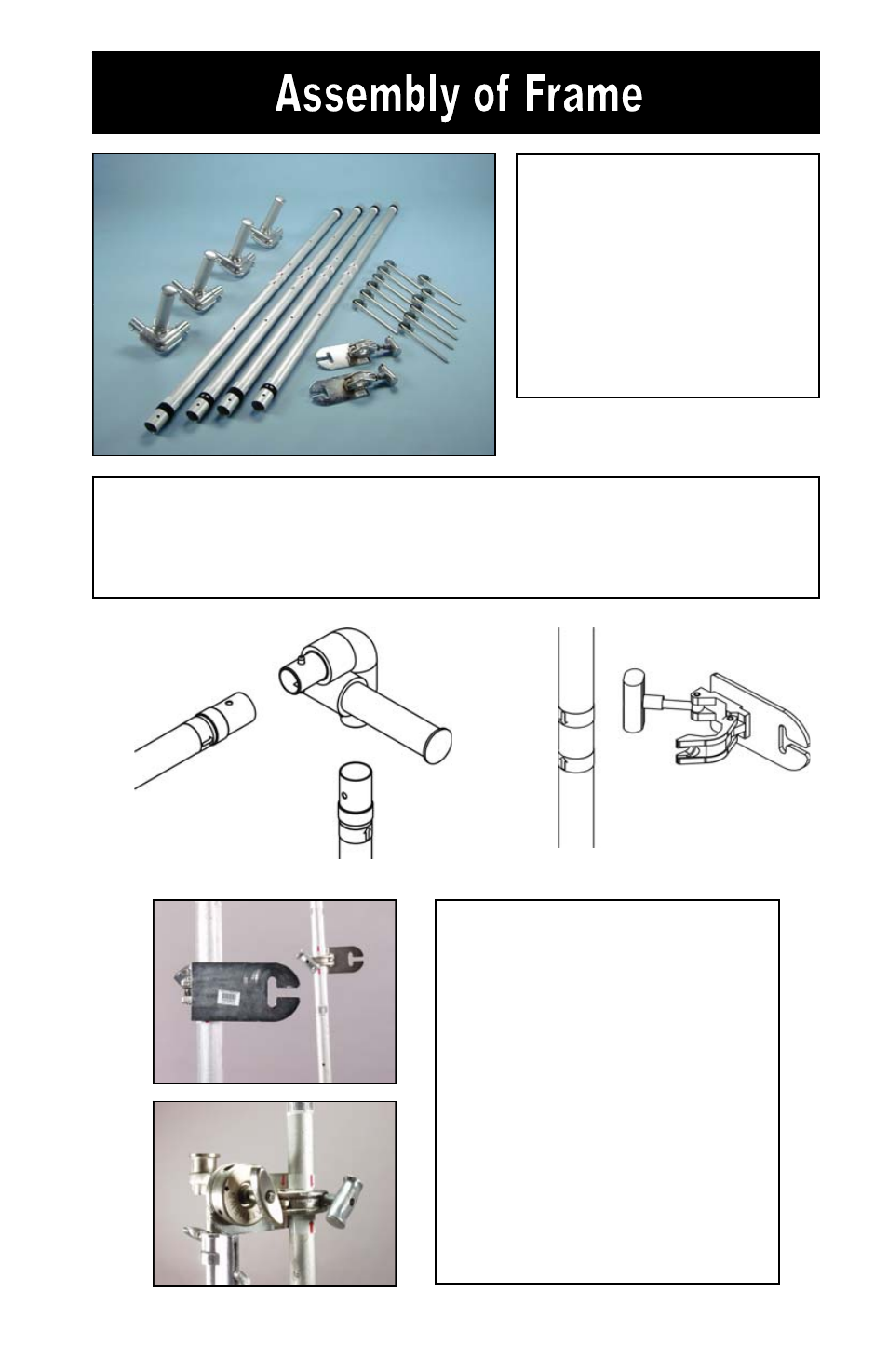

The Frame Assembly
(FRM-6X6) consists of:
4 Frame Corners
4 Frame Pipes
12 Frame Clip Pins
2 Frame Ears
No tools are required to assemble the frame. Depress pins on the
frame corners and twist until they mate with holes in the Frame Pipe.
Once attached to the Pipe, Frame Corners should all be facing the
same way.
Frame Pipe
Frame
Corner
Clamp the two frame ears
between the two arrows found
midway on the pipe frame.
Face in the same direction as
the frame corners.
The ears mount into a large
grip head on high roller stands
or other like stands.
Note: The locking knuckles
should be pointed to the
inside
of the frame.
Frame Ear
