12

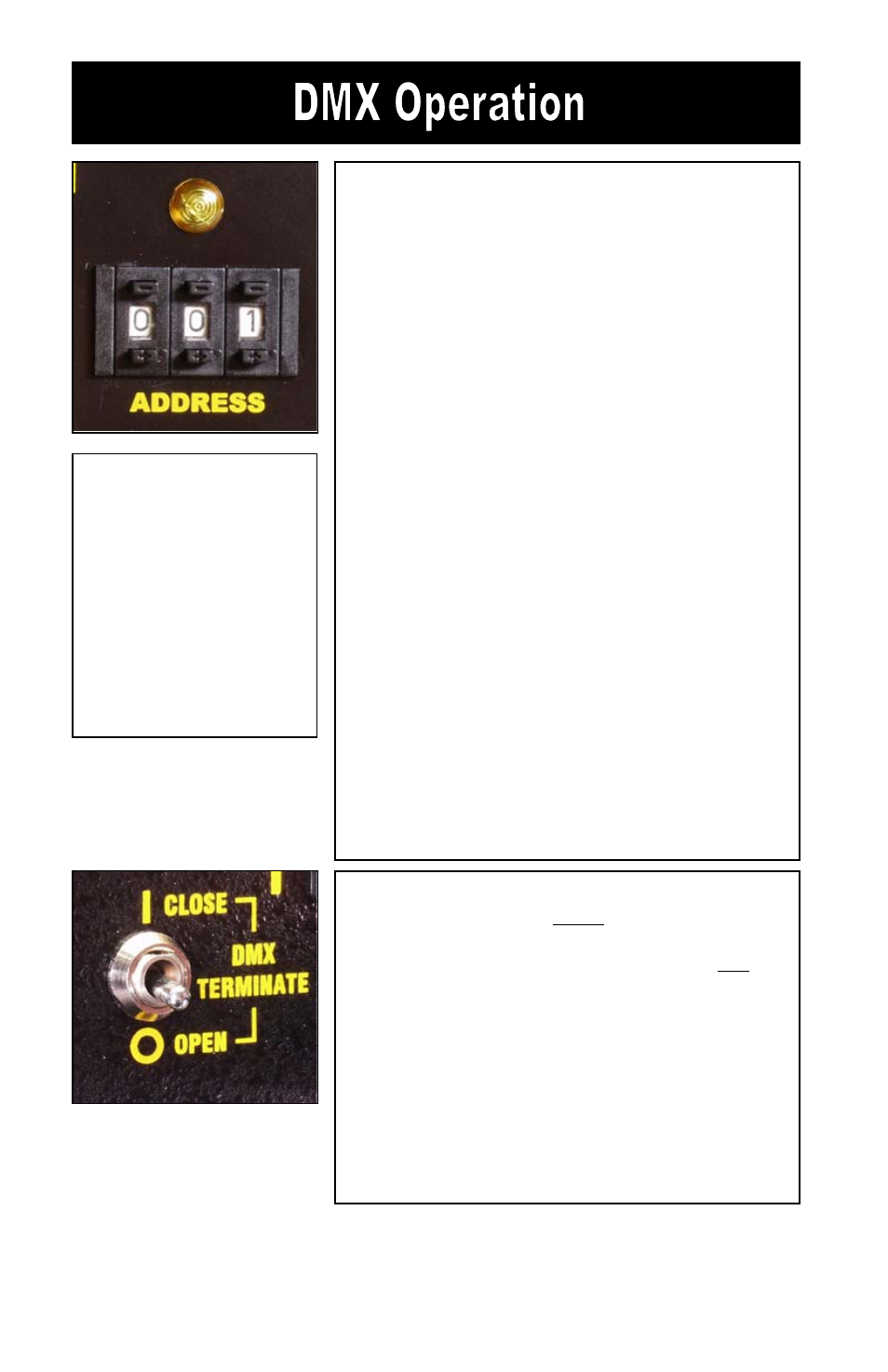

The DMX Terminate Switch must be set to
open ( O ) on Ballasts within the DMX chain.
Set to closed ( I ) when the Ballast is the last
DMX control device in the chain.
Note: When the last Ballast’s DMX Terminate
Switch is set to “I,” it will absorb all energy in the
DMX line, ensuring DMX signals are transmitted
correctly. If a signal is not terminated, it is called
a “Reflected Wave,” and may create
transmission errors by causing valid DMX
signals to be canceled.
DMX Addressing
Push the tabs above or below the number
window to set the address.
(Valid addresses range from 001 to 512.)
The yellow light above the address block
will illuminate if a DMX signal is present.
Each Mega 4Bank DMX ballast operates
on 5 addresses.
After the DMX address is entered, the
ballast automatically assigns the next 4
addresses to lamps 2,3,4 and a 5
th
address
controls the STD setting. Programming the
5
th
address at full dimmer setting activates
the STD setting.
Note: When DMX cables are applied the
manual HO/STD select feature will be disabled.
To get manual control of the HO/STD feature
1)Unplug the DMX cable or 2) leave cables
plugged in and set address to ”000”.
There is a 5 second delay when switching
between DMX and Manual control.
Manual lamp switching is not affected by
DMX control.
IMPORTANT!
The dimmer board/light
console should have its
channel set to LINEAR
light output response.
(LINEAR response is
the default
setting
Lamp Select
Feature
