11

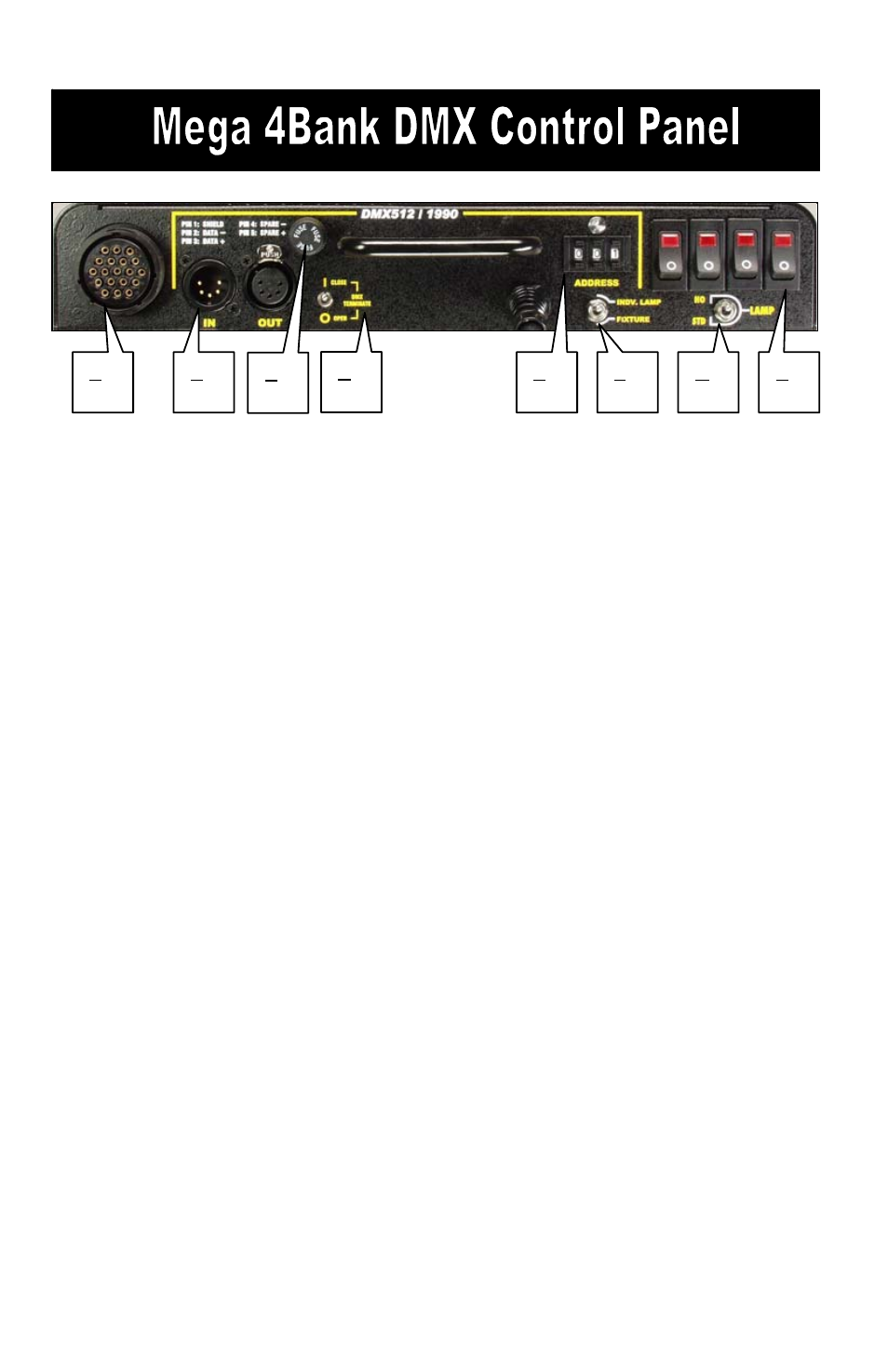

A) Circular Output Connector: Provides electrical power
to the lamp head with the use of a 4Bank extension cable.
B) DMX-In & DMX-Out: DMX-IN receives DMX signals from
Dimmer Board. DMX-OUT relays DMX signal through to other
Fixtures or Instruments.
C) Fuse: Provides circuit protection. Note: If Fuse is "blown"
or "open" replace with same type of fuse rating as marked.
D) DMX TERMINATE Switch: Terminates DMX signal at the
end of Fixture series.
E) DMX Address: Sets DMX Address of Fixture.
F) Individual Lamp / Fixture Switch: Converts between
INDIVIDUAL LAMP and FIXTURE methods of DMX control.
G) Lamp Select: Set to HO for burning lamps at high output and
STD for burning lamps at Standard Light Output.
H) Manual Switches: Turns lamps on and off manually.
A E F G H B D C
