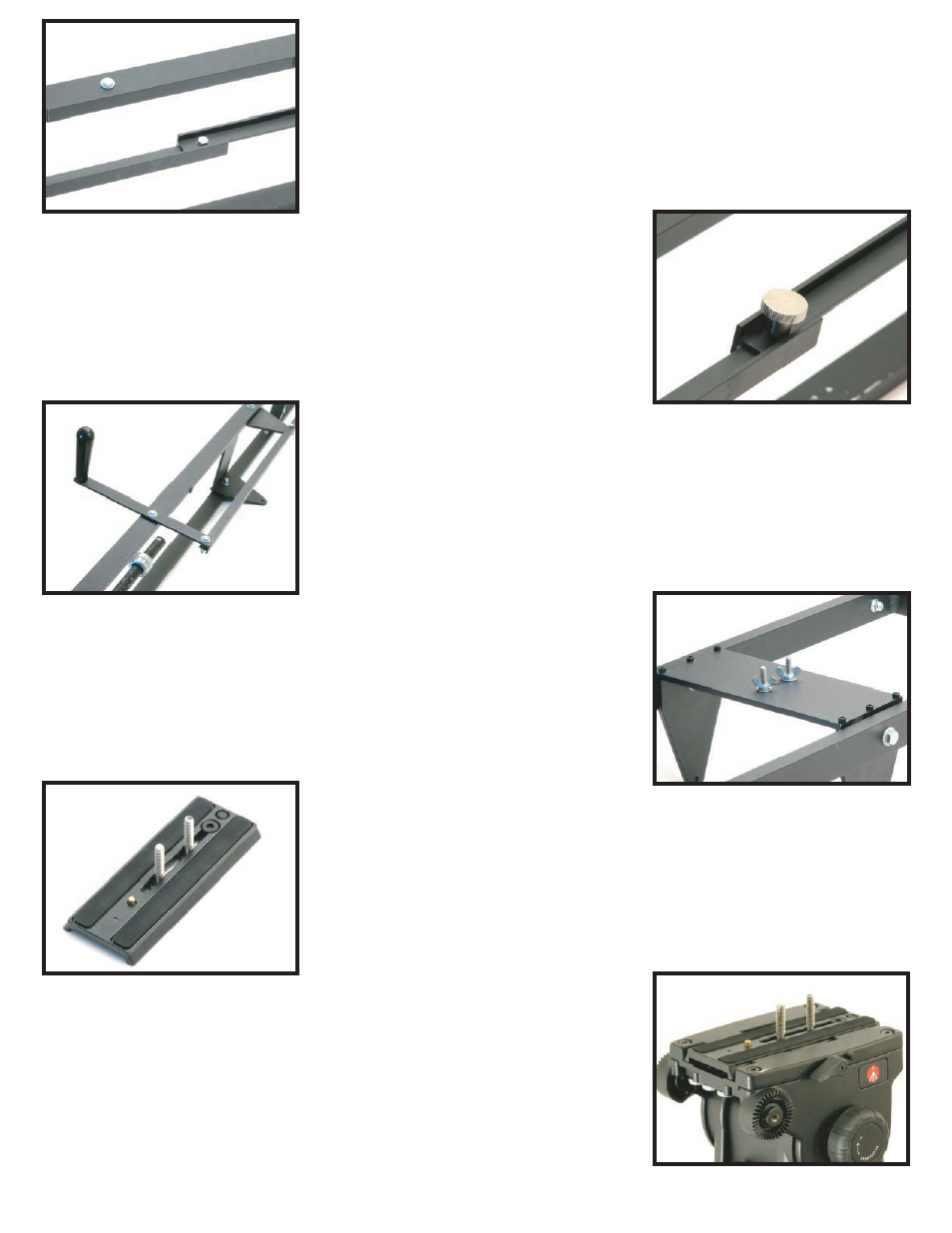

STEP 4B
If you purchased the optional Tool Less kit, insert the
stainless steal thumb knob, apply wing nut, and securely
tighten.
STEP 5
Attach the handle to the handle bar.
STEP 4
Overlap the two T-Bars (control rods), align the holes and
insert the ¼”-20 bolt from the backside and apply the nut.
Use the socket and wrench to securely tighten.
STEP 6
Remove the (2) mounting screws from the pivot plate
located on the base frame section.
STEP 7
Replace the camera mounting screw that should already be
attached to your tripod head quick plate with the (2) mount-
ing screws.
STEP 8
Lock your quick plate into the tripod head and make sure
that you are able to tighten the plate securing lever very
firmly.
IMPORTANT: For in depth instructions on how to correctly
adjust the mounting plate securing lever, please view the
appropriate video at www.KesslerCrane.com
(Crane/Quickplate to Fluid Head Mounting Procedure)
