14

E-flite Shoestring 15e ARF Assembly Manual

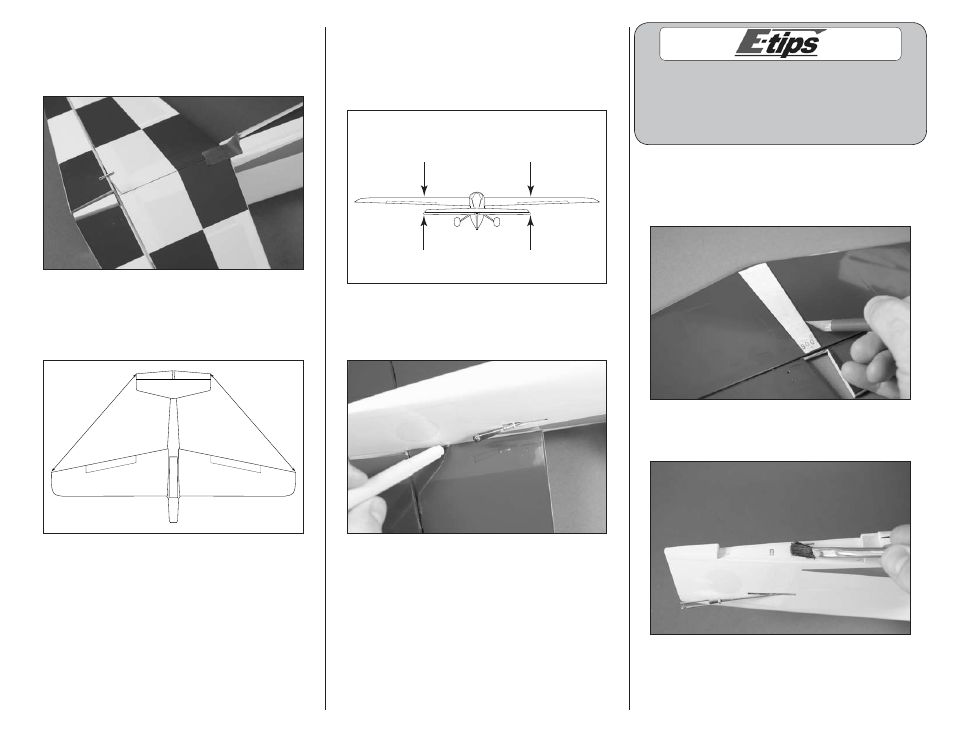

6. Place the stabilizer in position. Use a T-pin at the

rear of the stabilizer and tape at the front so it can

be easily repositioned. The line drawn earlier will

help in setting the initial alignment.

7. Measure from each wing tip to corresponding

stabilizer tip. These measurements must match

exactly for the stabilizer to be in alignment. Remove

the tape and move the stabilizer if necessary.

A

A=A

A

8. Step back from the model 3–6 feet (1–2 meters)

and view the model from the rear. Check that the

wing and stabilizer are in alignment with each other.

You might need to lightly sand the stabilizer saddle

to bring the wing and stabilizer into alignment.

Check Alignment

9. After the stabilizer has been aligned, trace

the outline of the fuselage on the bottom of the

stabilizer using a felt-tipped pen.

When cutting the covering, make sure not to

cut into the underlying wood and weaken the

stabilizer. Another option is to use a soldering

iron or hot knife to melt the covering, rather than

cutting, to avoid damaging the stabilizer.

10. Remove the stabilizer from the fuselage. Use

a hobby knife with a new #11 blade to trim the

covering 1/16 inch (1.5mm) inside the line drawn

in the previous step.

11. Mix 1/2 ounce (15ml) of 30-minute epoxy.

Lightly brush epoxy on the stabilizer saddle.
