17 E-flite Piper L-4 Grasshopper ARF Assembly Manual
Wing Attachment, Struts and
Top Windscreen Installation
Required Parts
Assembled fuselage Carbon wing tube
Wing strut (right and left)
Top windscreen
Assembled wing panel (right and left)
Required Tools and Adhesives
Clear tape Hobby scissors

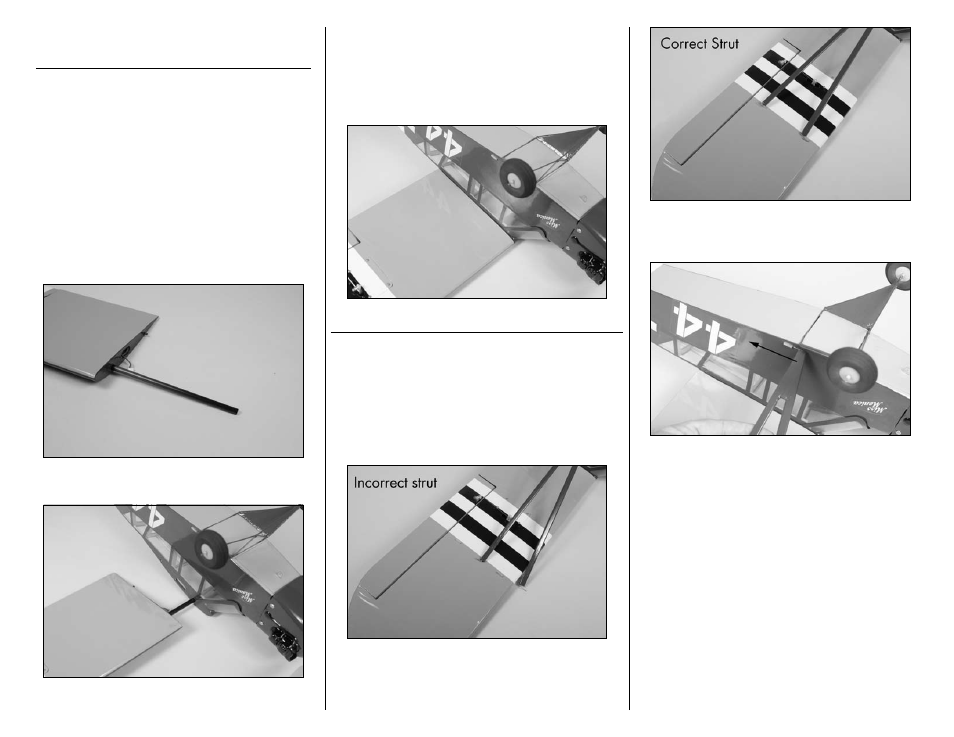

 1. Slide the carbon wing tube into the socket in one
of the wing panels. The tube will slide easily into
the socket. Do not force the tube farther than it will
easily slide.
 2. Slide the tube into the socket in the fuselage.
 3. Continue sliding the wing into position,
guiding the aileron servo lead in the fuselage.
Now is a good time to plug the aileron leads
into the Y-harness. The wing will fit tight against
the fuselage and snap into position. It is held in
position by a magnet and the wing struts.
IMPORTANT NOTE
The wings struts for the Piper L-4 are
functional and must be used.
 4. Make sure you have the correct strut on the
correct side. The wider strut will always face
forward. The strut should naturally align with the
fittings on the wing. If not, you will need to use the
opposite strut.
 5. Position the wing strut in the fitting at the
fuselage. The strut slides rearward into the fitting.
