E-flite P-38/F-5E Lightning Assembly Manual

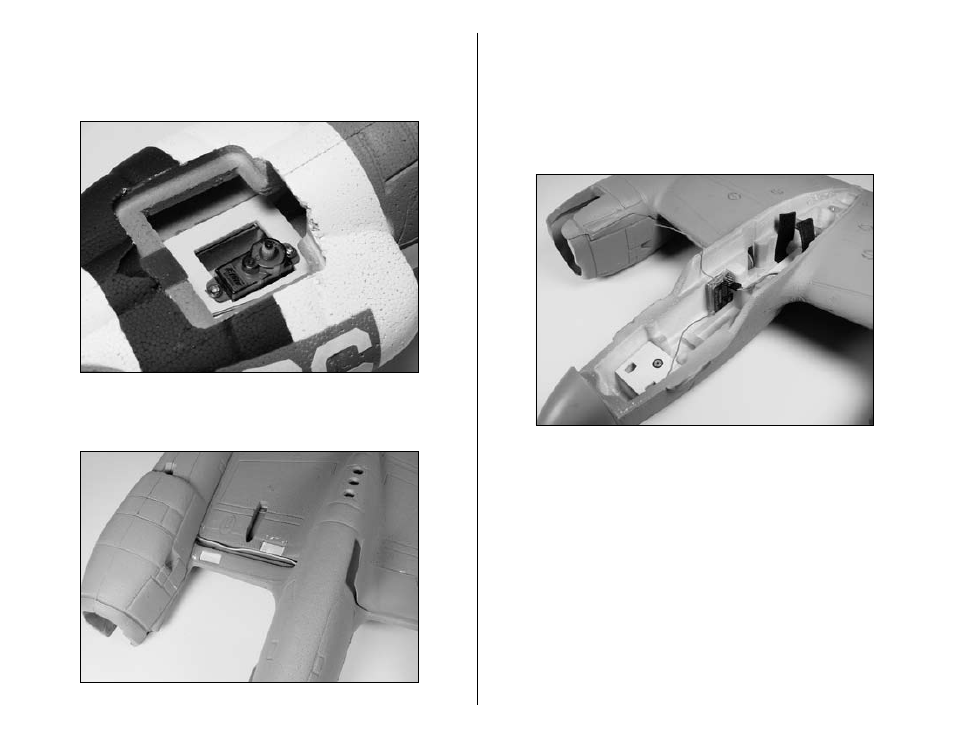

7. Position the elevator servo in the servo tray on the

side with the "S9" decal with the output shaft towards the

front of the boom. Secure the servo using the hardware

provided with the servo.

8. Route the servo extension through the channel in the

bottom of the wing to the center fuselage.

9. Attach the receiver to the fuselage using the included

double-sided tape. Plug the elevator servo extension into

the elevator channel of the receiver.

Note: Use the manufacturer's instructions for routing

your antenna. Never cut the receiver antenna as this will

greatly reduce the range of your radio system.

10. Turn on the transmitter and apply power to the

receiver. Check that the elevator servo is operating

properly. Center the elevator trim and control stick and

set any sub-trims to 0.
