3210 Timer Settings
Page 6
Typical Programming Procedure
Calculate the gallon capacity of the system, subtract
the necessary reserve requirement and set the gallons
available opposite the small white dot on the program
wheel gear.

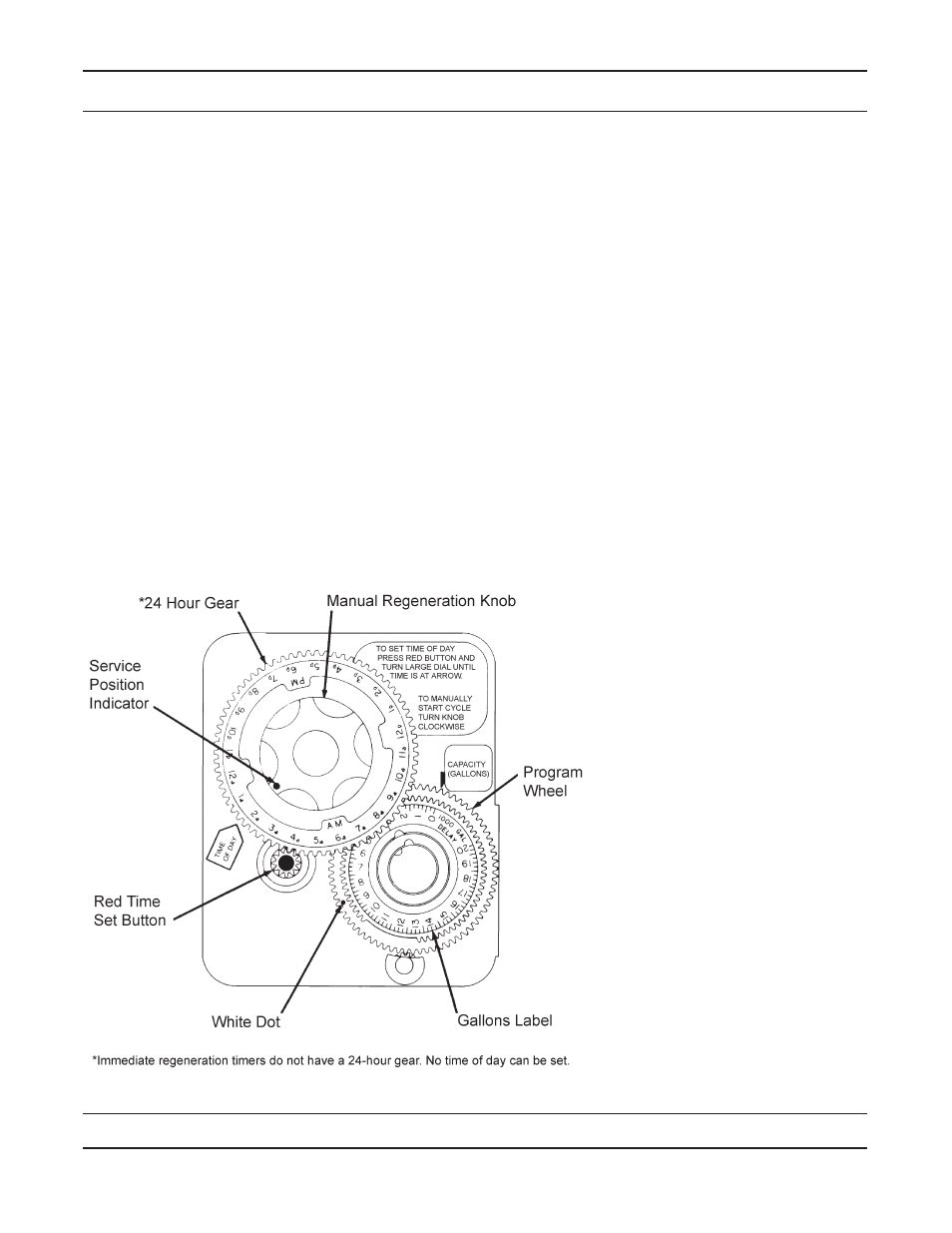

NOTE: Drawing shows 8,750 gallon setting. The
capacity (gallons) arrow denotes remaining gallons
exclusive of fixed reserve.
How To Set The Time Of Day:
Press and hold the red button in to disengage the
drive gear.
Turn the large gear until the actual time of day is
opposite the time of day pointer.
Release the red button to again engage the drive
gear.
1.
2.
3.
How To Manually Regenerate Your Water Condi-
tioner At Any Time:
Turn the manual regeneration knob clockwise.
This slight movement of the manual regeneration
knob engages the program wheel and starts the
regeneration program.
The black center knob will make one revolution in
the following approximately three hours and stop in
the position shown in the drawing.
Even though it takes three hours for this center
knob to complete one revolution, the regeneration
cycle of your unit might be set for only one half of
this time.
In any event, conditioned water may be drawn after
rinse water stops flowing from the water conditioner
drain line.
Immediate Regeneration Timers:
These timers do not have a 24 hour gear. Setting the
gallons on the program wheel and manual regeneration
procedure are the same as previous instructions.
1.
2.
3.
4.
5.
NOTE: To set meter capacity
rotate manual knob one - 360°
revolution to set gallonage.
