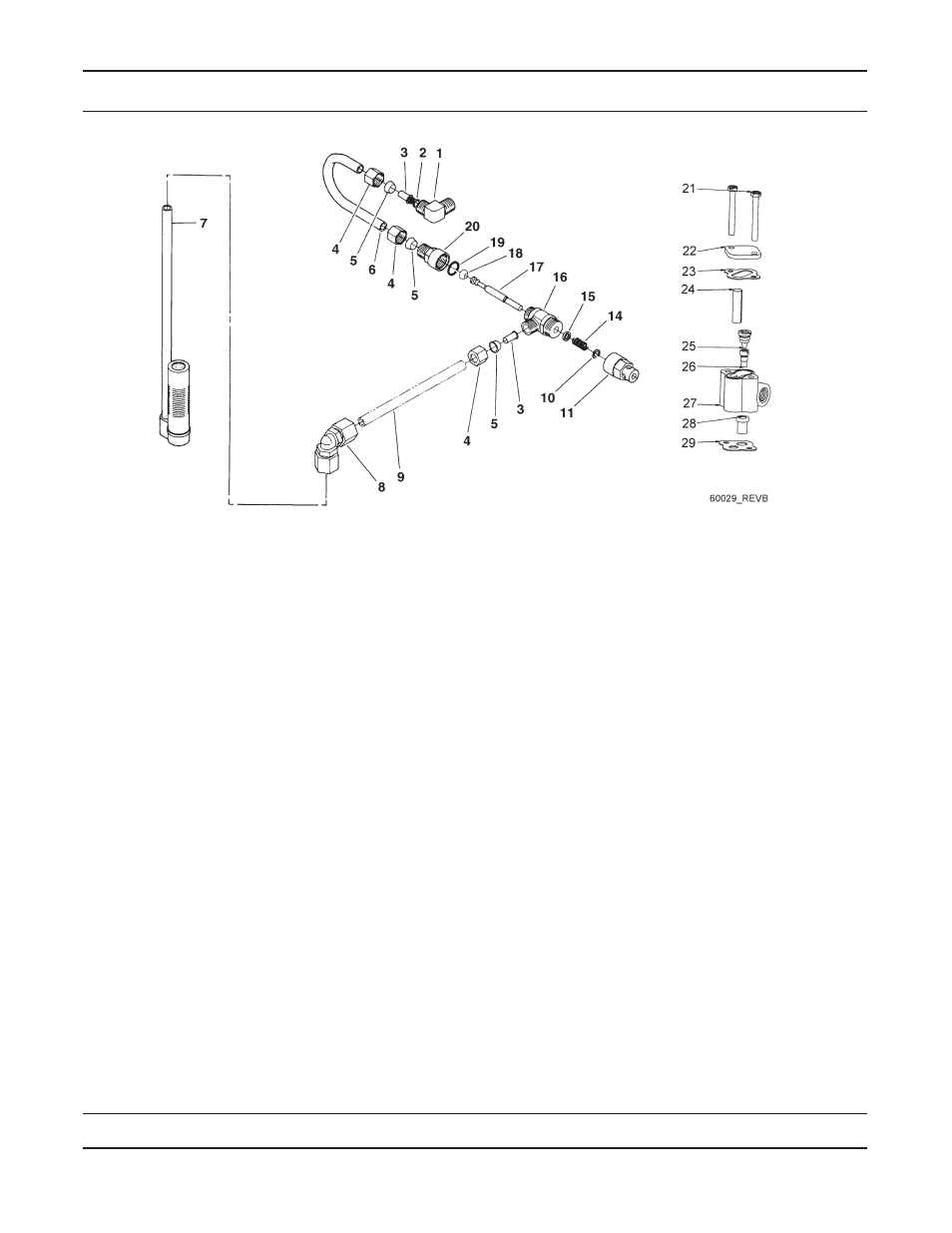

1600 Series Brine System Assembly
Item No.
Quantity
Part No.
Description
.
1.....................1.......................10328...........................Elbow, 90 Deg. 1/4 NPT x 3/8T
.
2.....................1.......................12767...........................Screen, Brine
.
3.....................2.......................10332...........................Fitting, Insert, 3/8
.
4.....................3.......................10329...........................Fitting, Tube, 3/8 Nut, Brass
.
5.....................3.......................10330...........................Fitting, Sleeve, 3/8 Celcon
.
6.....................1.......................15221...........................Tube, Brine Valve, Gray
.
7.....................1.......................60002...........................Air Check, #500
.
.
.
60003...........................Air Check, #500, HW
.
8.....................1.......................12794...........................Fitting, Elbow, 90 Deg 3/8, White, Poly Tube
.
9.....................1.......................Not Supplied................Brine Line Tube (3/8” Flexible Tube)
.
10...................1.......................10250...........................Ring, Retaining
.
11...................1.......................11749...........................Guide, Brine Valve Stem
.
14...................1.......................10249...........................Spring, Brine Valve
.
15...................1.......................12550...........................Quad Ring, -009
.
16...................1.......................12748...........................Brine Valve Body Assy, 1600 w/Quad Ring
.
17...................1.......................12552...........................Brine Valve Stem, 1600
.
18...................1.......................12626...........................Seat, Brine Valve
.
19...................1.......................11982...........................O-ring, -016
.
20...................1.......................60020-25.....................BLFC, .25 GPM, 1600
60020-50.....................BLFC, .50 GPM, 1600
60020-100...................BLFC, 1.0 GPM, 1600
.
21...................2.......................10692...........................Screw, Slot Hex Hd, 10-24 x 18-8
.
22...................1.......................11893...........................Cap, Injector, SS
.
23...................1.......................10229...........................Gasket, Injector Cap, 1600
.
24...................1.......................10227...........................Screen, Injector
.
25...................1.......................10913...........................Nozzle, Injector
.
26...................1.......................10914...........................Throat, Injector
.
27...................1.......................17776...........................Body, Injector, 1600
.
28...................1.......................16221...........................Disperser, Air
.
29...................1.......................14805...........................Gasket, Injector Body, 1600/1700
For Service Assembly Numbers, See the Back of this Manual
