Watts P60 - Manual

Series P60-M1
Miniature Plastic Water
Pressure Regulators
Size: 1 ⁄
4
" (8mm)
Series P60-M1 Miniature Plastic Water Pressure Regulators
are ideal for applications where a small economical package is
required. This series is also suitable for deionized water. Series
P60-M1 features a balanced piston design for applications
where a constant downstream and accurate flow performance
is required.
Features
• Corrosion resistant thermoplastic body
• Compact design and lightweight construction
• All external components are made of NSF approved
thermoplastics
• All internal rubber components such as disc, diaphragm and
seals are all FDA grade elastomers
• All internal metal components in contact with fluid are of 300
series stainless steel
• Straight through or 90º inlet to outlet option (suffix 4 option)
• High capacity
• Bottom "clean out plug" for service
Options
add suffix:
HC
3 ⁄
4
" (20mm) hose connection
G 1 ⁄
4
" (8mm) 0-160 gauge
S strainer
4
gauge port or 90º inlet to outlet
QD quick disconnect for plastic tubing
MK Mounting Kit
See Pressure-Temperature section for reduced
pressure range options: 0-25psi, 0-60psi, or 0-125psi
Specifications
A miniature plastic water pressure regulator shall be installed
where indicated on the plans. Regulator shall be corrosion
resistant, compact and lightweight. Regulator shall be manu-
factured from NSF approved plastics and contain FDA grade
internal rubber and metal parts. Regulator shall be a Watts
Series P60-M1.
For General Purpose and OEM Applications
ES-P60
Job Name ––––––––––––––––––––––––––––––––––––––––––– Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location ––––––––––––––––––––––––––––––––––––––––– Approval –––––––––––––––––––––––––––––––––––––––––––––
Engineer ––––––––––––––––––––––––––––––––––––––––––––– Contractor’s P.O. No. ––––––––––––––––––––––––––––––––––
Approval ––––––––––––––––––––––––––––––––––––––––––––– Representative ––––––––––––––––––––––––––––––––––––––––

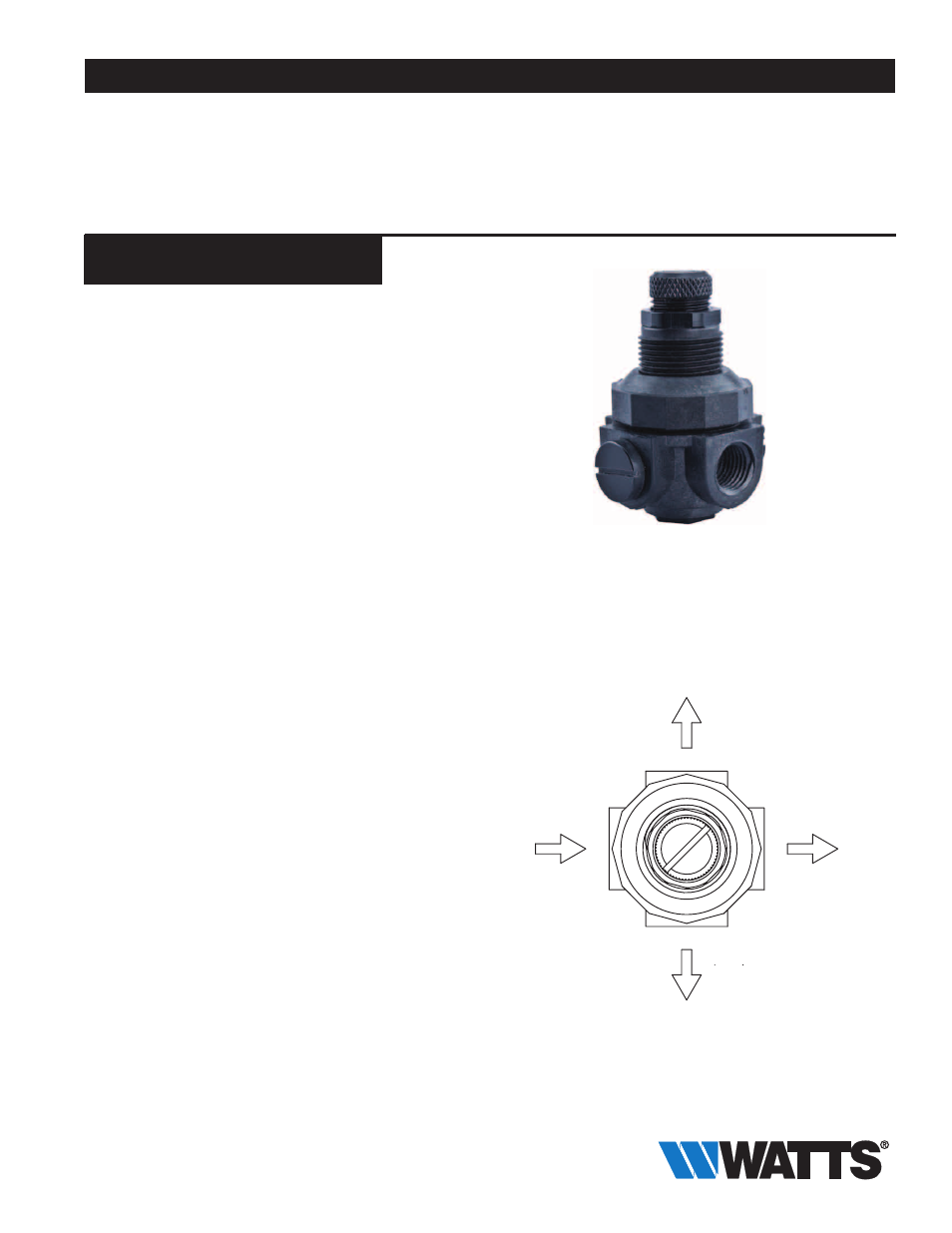

P60-M1
Top View
Standard valve furnished with straight port only. Suffix 4 option
shown below provides additional left and right ports with two
1 ⁄
4
" NPT pipe plugs provided.
Straight Port
Left port
High Pressure Inlet Reduced Pressure
Outlet
Right port
LEAD FREE
*
* The wetted surface of this product contacted by consumable
water contains less than 0.25% of lead by weight.
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with-
out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
