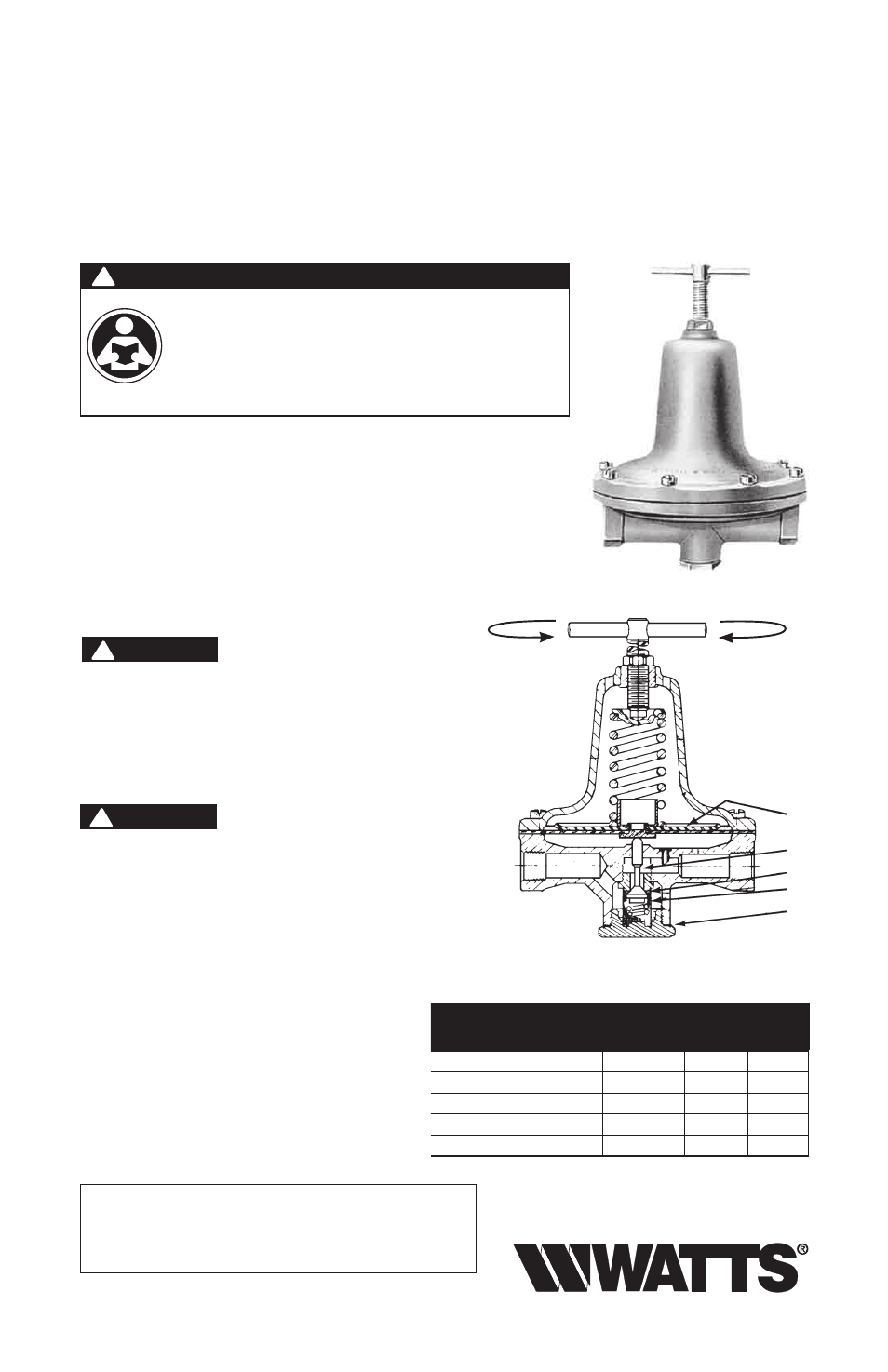

Series lf215 water regulator, Installation and operating instructions, Installation

IS-215

Series LF215

Water Regulator

Installation and Operating Instructions

LF215

Kit for Model LF215
includes parts shown

Part Name

OrderiNg

COde NO.

kit NO.

Size

A - Diaphragm Assembly 0877060 215YRK

⁄

B - Disc Assembly

C - Seat and O-ring

D - Strainer

E - Bottom Plug Gasket

a
B
C
d

Decrease - Turn

Counterclockwise

Increase - Turn

Clockwise

Installation

• This valve should be installed where it is accessi-

ble with sufficient clearance for cleaning, service

or adjustment.

• Flush line

• Optimize performance by installing close to

equipment

• Install with arrow in direction of flow

• Adjust pressure setting while flowing

DANGER

Any time a reducing valve is adjusted, the use of

a pressure gauge is recommended to verify cor-

rect pressure setting. Do not bottom out adjusting

screw on spring cage.

WARNING

read this manual BeFOre using this equipment.
Failure to read and follow all safety and use information can

result in death, serious personal injury, property damage, or

damage to the equipment.
keep this manual for future reference.

Repair

WARNING

Depressurize the valve before servicing.

Erratic operation is usually caused by dirt in seat area.

To clean; remove bottom plug, seat spring, strainer

and seat disc. Clean or replace and reassemble,

making sure seat disc is centered in hole.

WarNiNg: This product contains chemicals known to the

State of California to cause cancer and birth defects or

other reproductive harm.

For more information: www.watts.com/prop65
