Page 6
Time Setting
NOTE: DO NOT SET THE TIME BY ROTATING “OUTER” DIAL.
TO SET THE CURRENT TIME, TURN THE MINUTE HAND CLOCKWISE.
Turn the minute hand clockwise until time of day on the outer dial is aligned with the
triangle marker on the inner dial.
Example for 10:30 AM. Turn the minute hand clockwise until 10:30 AM is aligned with the
triangle on the inner dial. The hour and the minute dial will show exactly 10:30.
Programming
24-Hour (Timer manual switch position)
The 24-Hour dial has quarter-hour division tabs plus AM/PM indications. Set the required
"ON/OFF" times on the programing ring by pushing the tabs away from or towards the
center of the ring. Tabs pushed away from the center ring indicate circulator "ON" while
tabs pushed towards the center ring indicate circulator is switched "OFF".
The circulator will now start/stop according to the settings of the programming tabs.
In case of power outage the timer will not keep time. Repeat time
setting step when power is restored.
TIMER OPERATION
NOTE: Before the circulator is started, the water
system must be filled with water and vented.
The timer has three modes of operation controlled
by a manual switch:
1) OFF position: No pumping - circulator off
The timer will still keep time of day
2) TIMER position: Circulator controlled
by programing tab settings "ON or OFF"
3) ON position: Circulator in
continuous pumping mode
24-hours/day 7-days a week

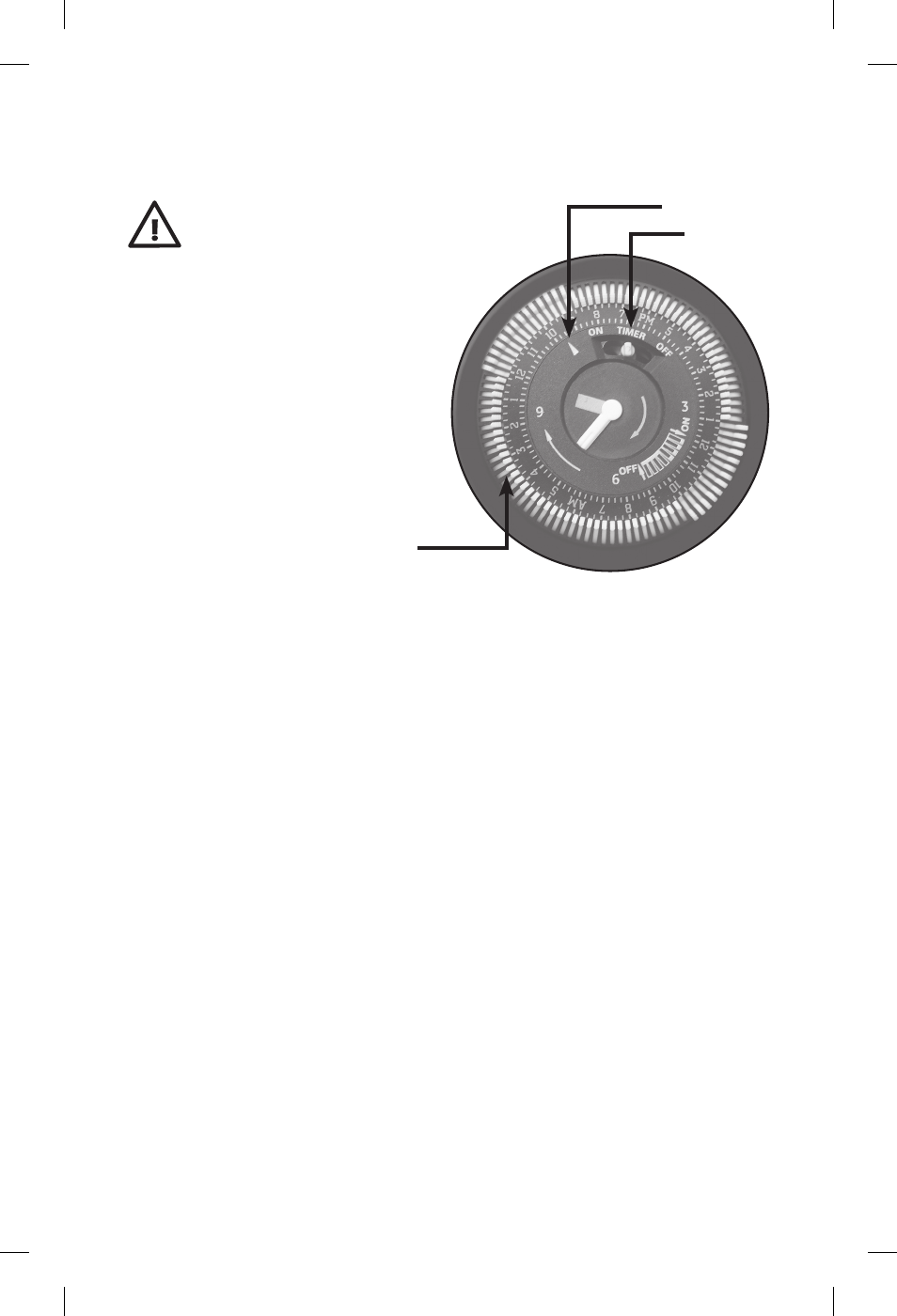

Triangle Marker
Manual Switch
Programing Tabs
