Sensor Valve Location

For the greatest effect, the valve should be located at a faucet with the greatest piping

distance from the hot water heater. If your home has a branched hot water line, more than

one Sensor Valve may be necessary. Additional Sensor Valve kits can be found at some

retail locations as well as the WATTS website at

www.watts.com

or by calling toll free at

(800) 752-5582.
NOTE: Do not use Teflon tape or pipe dope on the Sensor Valve threads.

Sensor Valve Installation

3/8" Stop Valve Installation

1. Close both the hot and cold stop valves below the sink

(see Picture 3).

2. Place supplied rubber washers in female end of

adapters. Attach adapters to both “Cold Water Out” and
“Hot Water Out” ports of Sensor Valve.

Finger tight

plus a quarter turn with wrench.

3. Disconnect existing supply line connection from both hot

and cold stop valves and then connect to adapter, attach

to Sensor Valve (see Picture 4).

4. Connect the new 1/2" x 3/8" flex hose to the hot water

stop valve (3/8" side) and the “Hot Water In” port (1/2"

side) of the Sensor Valve (see Picture 5 & 6). Connect

the remaining 1/2” x 3/8” flex hose to the cold water stop

valve.

5. Open both the hot water and cold water stop valves.

6. If desired, Sensor Valve can be mounted to the wall with

the mounting screws (see Figure 1).

1/2" or Other Stop Valve Installation

1. Close both the hot and cold stop valves below the sink

(see Picture 3).

2. Place supplied rubber washers in female end of

adapters. Attach adapters to both “Cold Water

Out” and “Hot Water Out” ports of Sensor Valve.

Finger tight plus a quarter turn with

wrench.

3. Disconnect existing supply line connection from

faucet connection leave stop valve connection

in place. Take disconected end and attach to

“Hot Water In” and “Cold Water In” connections

respectively

4. Connect the new 1/2" x 3/8" flex hose to the

already installed adapter (on Sensor Valve) (3/8"

side) and the faucet connection (1/2” side) for

both Hot Water and Cold Water respectively (see

Picture 5 & 6).

5. Open both the hot water and cold water stop

valves.

6. If desired, Sensor Valve can be mounted to the

wall with the mounting screws (see Figure 1).

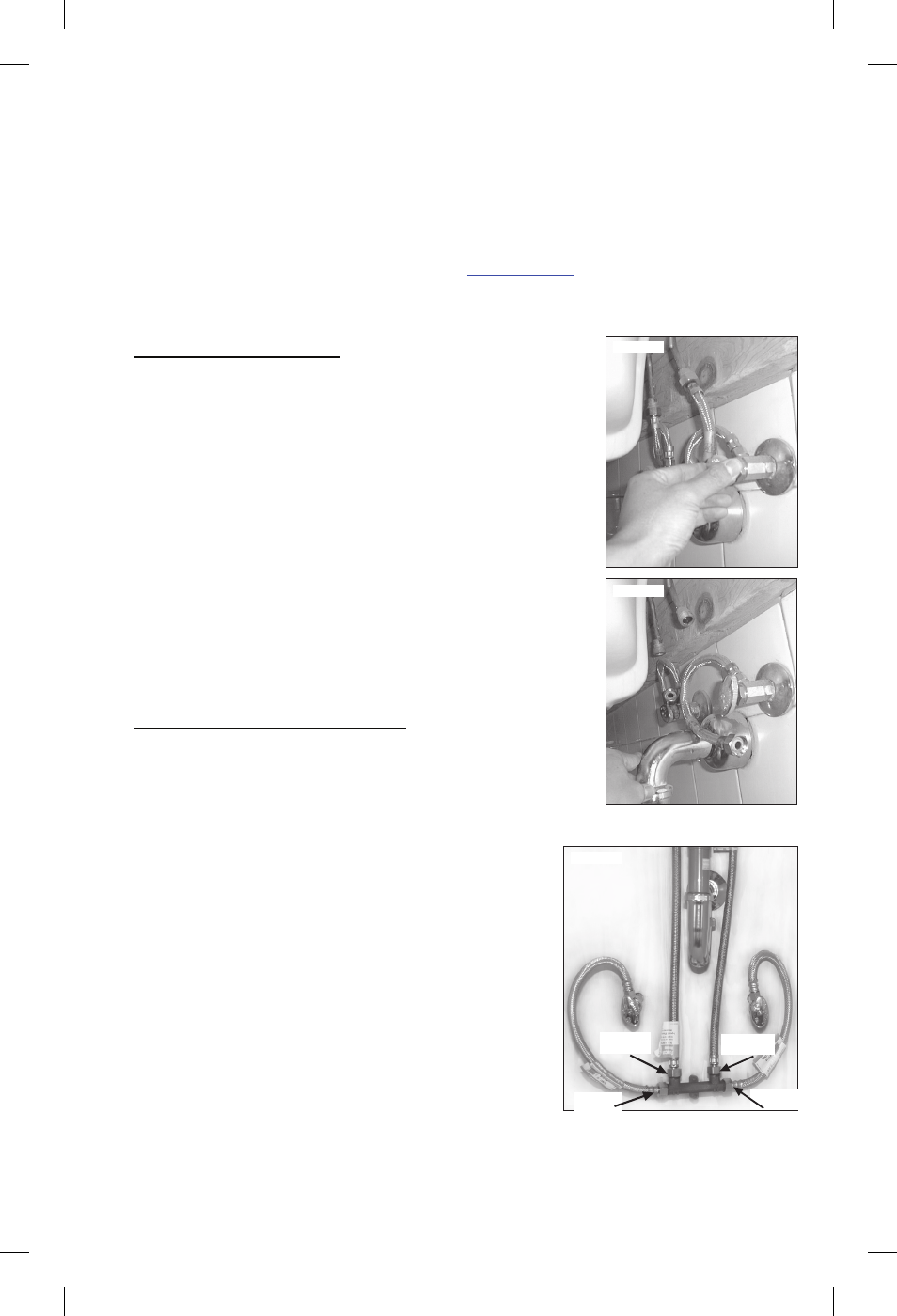

Picture 3

Picture 4

Picture 5

Hot Water

Out

Cold Water

Out

Cold Water

In

Hot Water

In
