assembly instructions
Family: Sussex Item No. 4794 EZ/BN
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling main fixture
body, installing the mounting hardware, making all necessary electrical connections,
hanging the fixture from the ceiling and then installing the fixture shades.
start here
4794
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. Slip center column assembly (2) along wire and thread into tubing (A) and tighten.
2. Slip loop (3) along wire and thread onto top of center column (2) and tighten.
3. Thread center stem (4) into coupler (B) approximately 3/8”.
4. Thread hex nut (C) up against coupler (B) and tighten to secure tubing (4).
5. Slip sleeve (5) over tubing (4) and hold in position.
6. Slip cap (6) onto tubing (4) and up against bottom of sleeve (5) and hold in position.
7. Slip rubber washer (7) and push both up against cap (6). Note: rubber washer (7)
should hold all parts in position.
8. Remove ball knobs (15) and rubber washer (16) from studs (F).
9. Slip one half of top glass plate (17) over stud (F).
10. Slip rubber washer (16) back onto stud (F) and then thread ball knob (15) onto stud
(F) to secure top glass plate (17). Repeat this step for other half of top glass plate (17).
11. Please refer to the hanging instruction sheet (I.S. 19) provided to hang fixture.
Then refer back to this sheet to install glass.
1. Prior to installing glass, fixture can now be lamped accordingly.
2. Hook one end of uprights (8) into loop (D) on ceiling canopy (E).
3. Hook circular loops on top of shade (9) onto other end of uprights (8).
4. Slip circular glass (10) onto tubing (4) and hold in position.
5. Slip flat washer (11) onto tubing (4) and hold in position.
6. Thread hex nut (12) onto tubing (4) and tighten to secure glass (10).
7. Slip bottom cap (13) onto tubing (4) and hold in position.
8. Thread bottom knob (14) onto tubing (4) and tighten to secure cap (13).

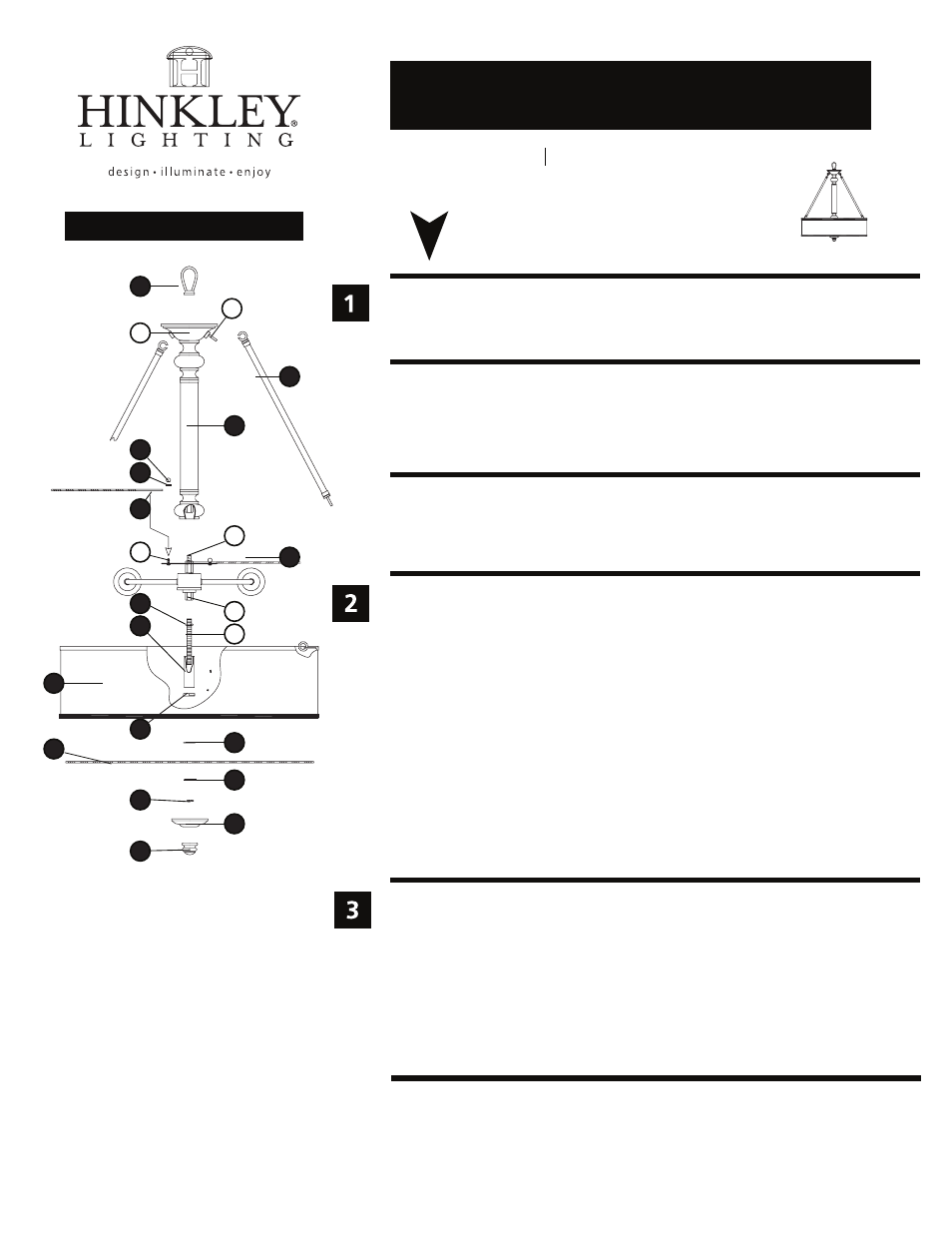

Drawing 1 - Fixture Assembly
3
9
10
15
16
17
8
1
E
F
D
2
6.7.09
A
B
4
6
5
C
12
7
14
11
13
