assembly instructions

Family: Mayflower Item No. 4161 OB

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the glass.

start here

41

61

6

1. To assemble fixture, slip column (1) along wire and thread into nipple (6) and tighten.
2. Take nipple (3) and thread it into coupler (7) approximately 1/4”.
3. Thread hex nut (8) up to base of coupler (7) and tighten to lock nipple (3) in place.

1. Prior to installing glass, fixture can be lamped accordingly.
2. Slip glass (4) onto nipple (3) - see Drawing 1.
3. While holding glass (4) in place, thread bottom finial (5) onto end of nipple (3) and
hand tighten only.
Note: Using a tool of any kind to tighten knob may cause damage to glass.

Drawing 3 - Fixture Mounting

Drawing 2 - Strap Detail

B

(side view)

gull wing

bracket

B

1

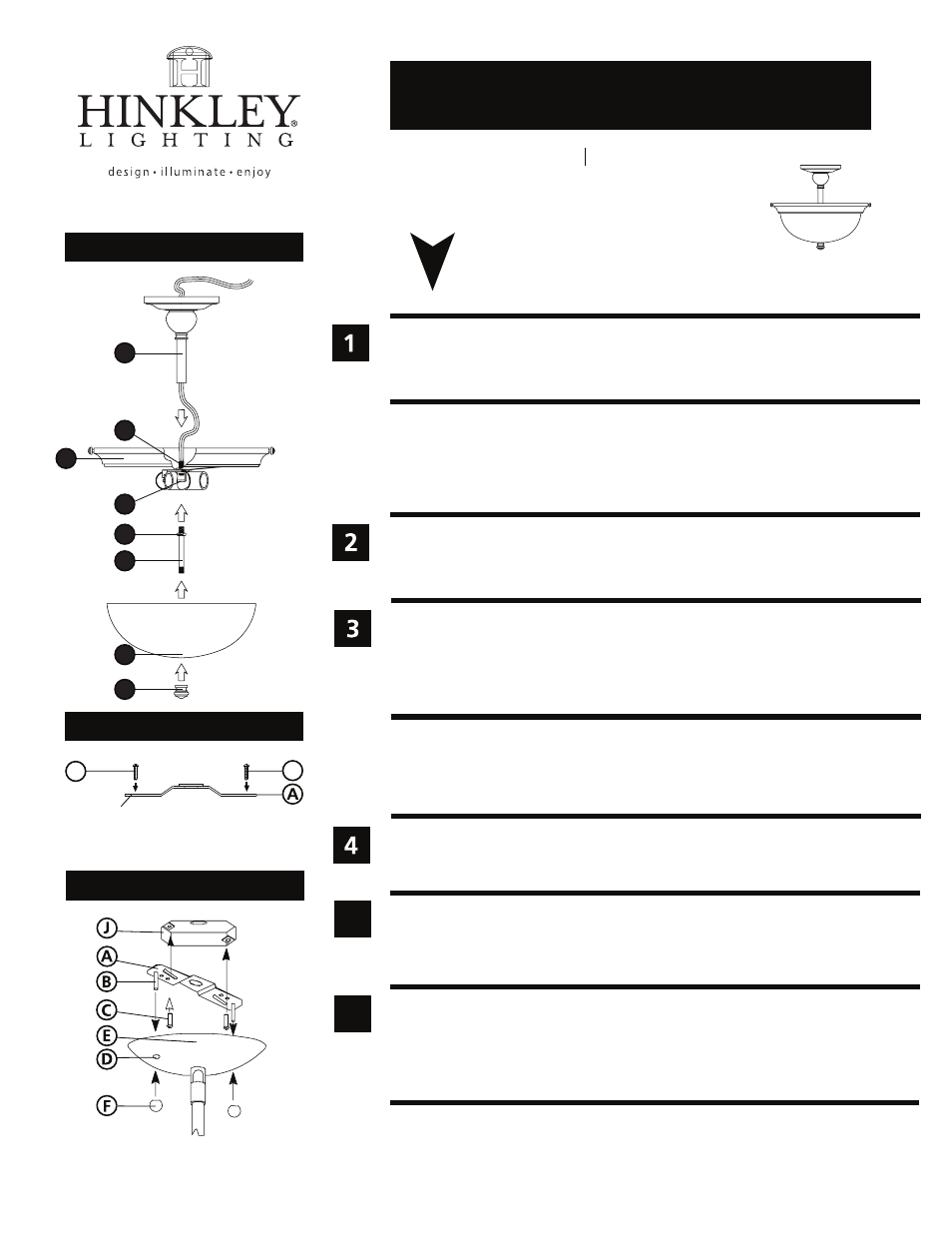

Drawing 1 - Fixture Assembly

6

7

8

2

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

1. Prepare gem strap (A) for mounting by threading two screws (B) provided into
back of gull wing bracket of gem strap (A) - see Drawing 2.
Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the canopy (E) - see Drawings 2 and 3.
2. Mount gem strap (A) to junction box (J), using the two 8-32” screws (C) provided.

5

3

4

5

1. Mount the fixture by slipping the holes (D) in the canopy, over the screws (B) in the
mounting strap - see Drawing 3.
2. Thread on ball knobs (F) onto the end of the mounting screws (B) to secure fixture
to the wall.

2.7.08
