Hinkley Lighting PRESCOTT 4968OB - Manual

assembly instructions
Family: Prescott Item No. 4968
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling and then installing the glass.
start here
4968
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To assemble main body, spread arms (A) of the body assembly (C) until they are
equally spaced 60 degrees apart - see Drawing 1.
2. Spread arms (B) of the body assembly (1) until they are equally spaced 120 degrees
apart.
3. Please refer to hanging instruction sheet (I.S. 19) provided to hang fixture. Then
refer back to this sheet to continue installation of this fixture.

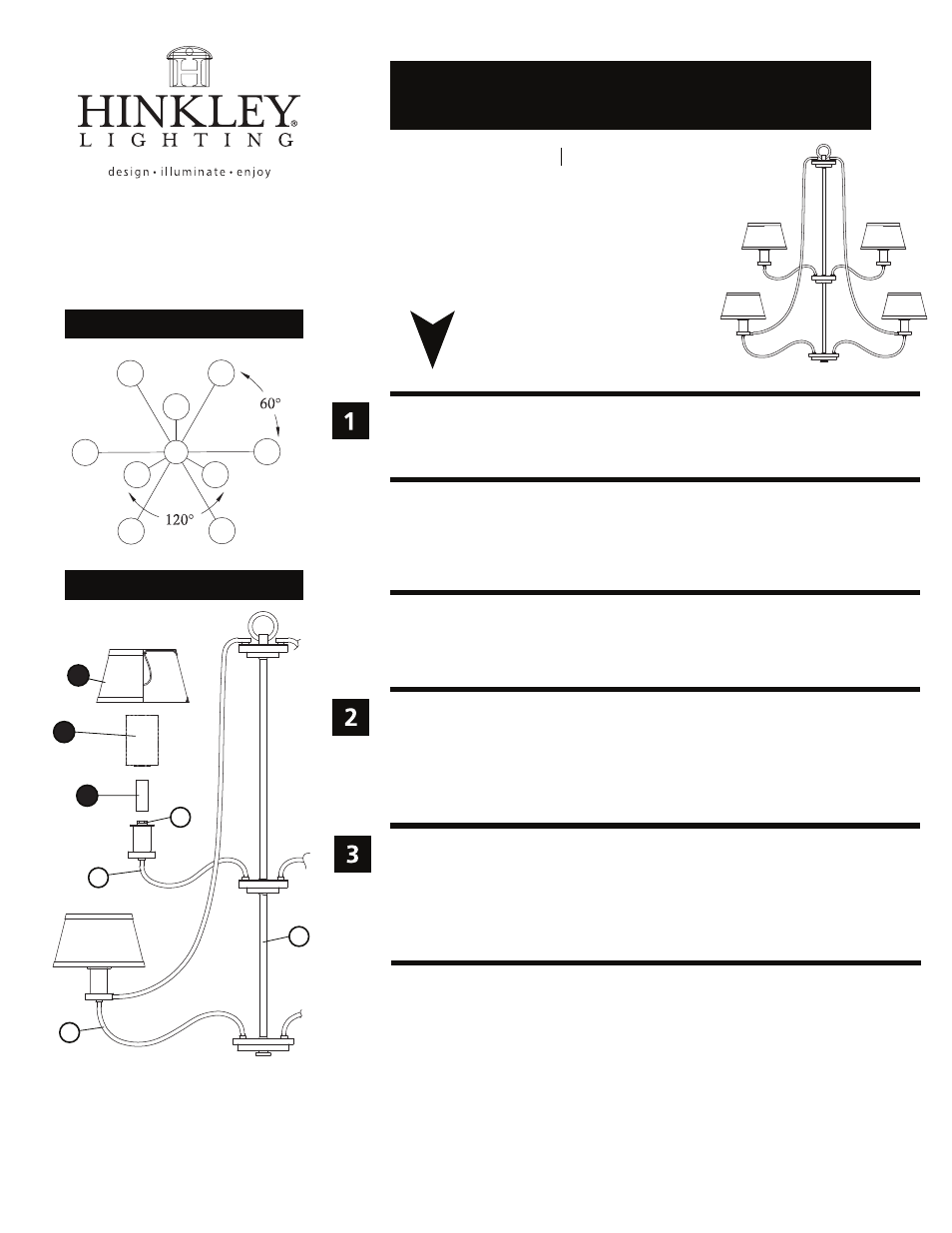

Drawing 1 - Arm Rotation
Drawing 2 - Fixture Assembly
B
A
A
A A
A
A
B B
06.01.13
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
1
2
3
S
1. To install glass (2), first slip candle sleeve (1) over socket (S).
2. Slip glass (2) over candle sleeve (1).
3. Fixture can be lamped apropriatly at this time.
4. After lamp is installed, shade (3) can be clipped onto bulb.
A
B
C
