Hinkley Lighting LANZA 5100 - Manual

assembly instructions
Family: Lanza Item No. 5100 AN/BR
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall and then installing the glass.
star t here
5100
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

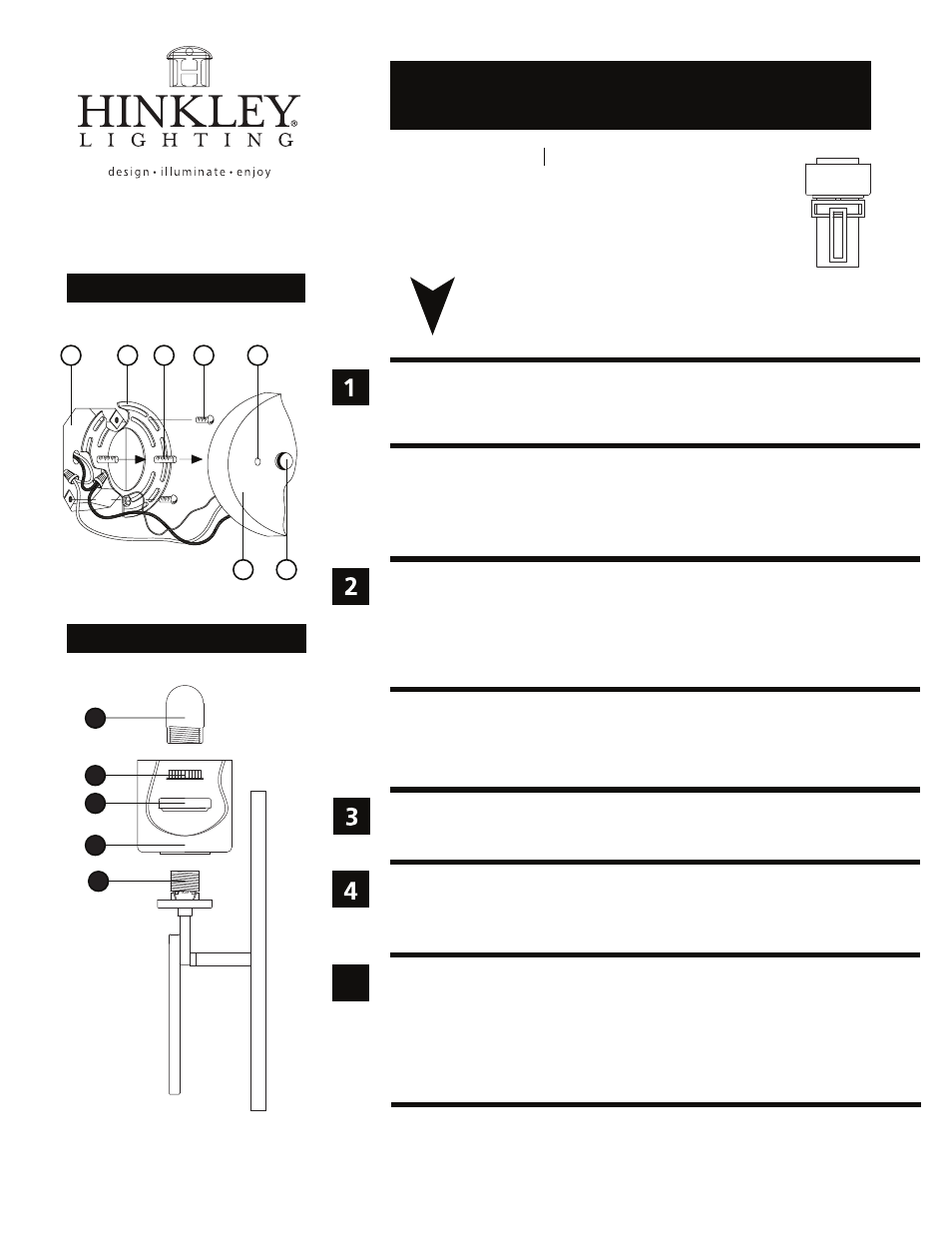

Drawing 1 - Fixture Mounting
Drawing 2 - Glass Installation
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to continue installation of this fixture.
5
A J B C D
E F
back plate
1. Prepare mounting strap (A) by threading the two 1” long mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the backplate (E).
2. Attach mounting strap (A) to junction box (J) using two screws (C).
1. To mount fixture, slip the two mounting screws (B) through the two mounting holes (D) in the
backplate (E) - see Drawing 1.
2. While holding fixture in place, thread the two ball knobs (F) onto the end of the mounting
screws (B), and tighten.
4.15.09
1
2
5
3
4
1. To install glass, remove socket ring (1) and spacer (2) from the socket (5) - see Drawing 2.
2. Slip glass (3) over socket (5).
3. Slip spacer (2) and thread socket ring (1) onto socket (5) to secure glass (3).
4. Fixture can now be lamped accordingly.
5. Thread glass shield (4) onto socket (5).
