Hinkley Lighting HAMLET FR42864VBZ User Manual
Hamlet

FR42864
HAMLET
[DRAWING 1]
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first assembling the primary fixture
body, making all necessary electrical connections, hanging the fixture from the ceiling,
and then installing the crystals.
SAFETY WARNING:
Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1

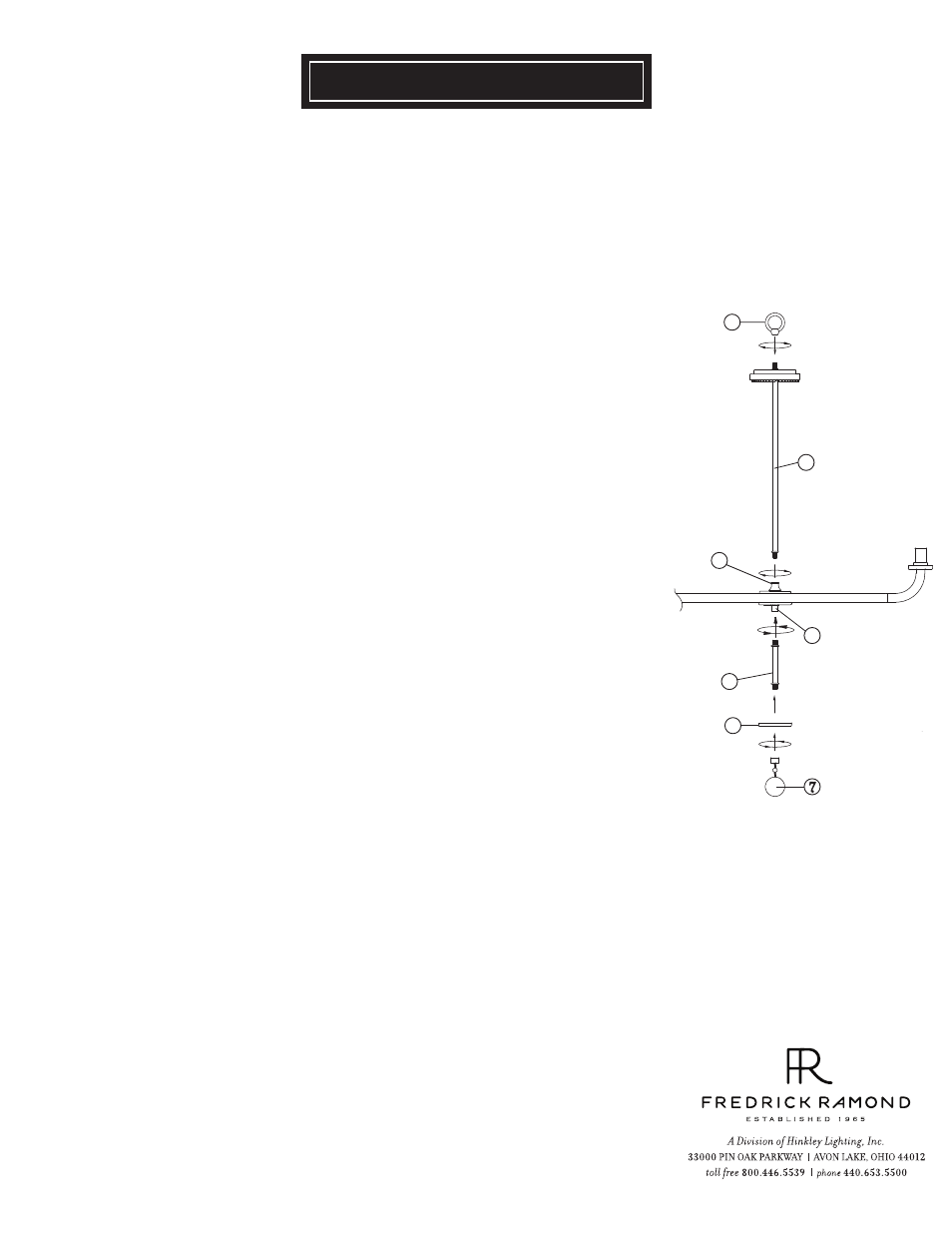

To complete primary assembly of the fixture body, slip center column (1) along
supply wire and thread into top of fixture body (2) and tighten. - See Drawing 1.
2
3
5
Fixture can be installed at this time.
STEP 2
Refer to Hanging Instruction Sheet [FRIS19] to hang fixture.Then refer back
to this sheet to install crystals.
STEP 3
1
Plesse reference Crystal and Rope installation instrutions to complete assembly.
.
Bulbs:
60W CANDELABRA
Slip loop (3) along supply wire and thread onto top of c eenter column (1).
Thread bottom center stem (4) into coupler (5) located on the bottom of the
fixture in the center.
Slip center hole of bottom cap (6) onto bottom of center stem (4) and thread
on finial with ball (7) to secure cap (6) to fixture.
06.01.13
3
4
2
5
1
6
4
7
