Hinkley Lighting MONTEREY FR42508BME - Manual

fR42508BME
MONTEREY

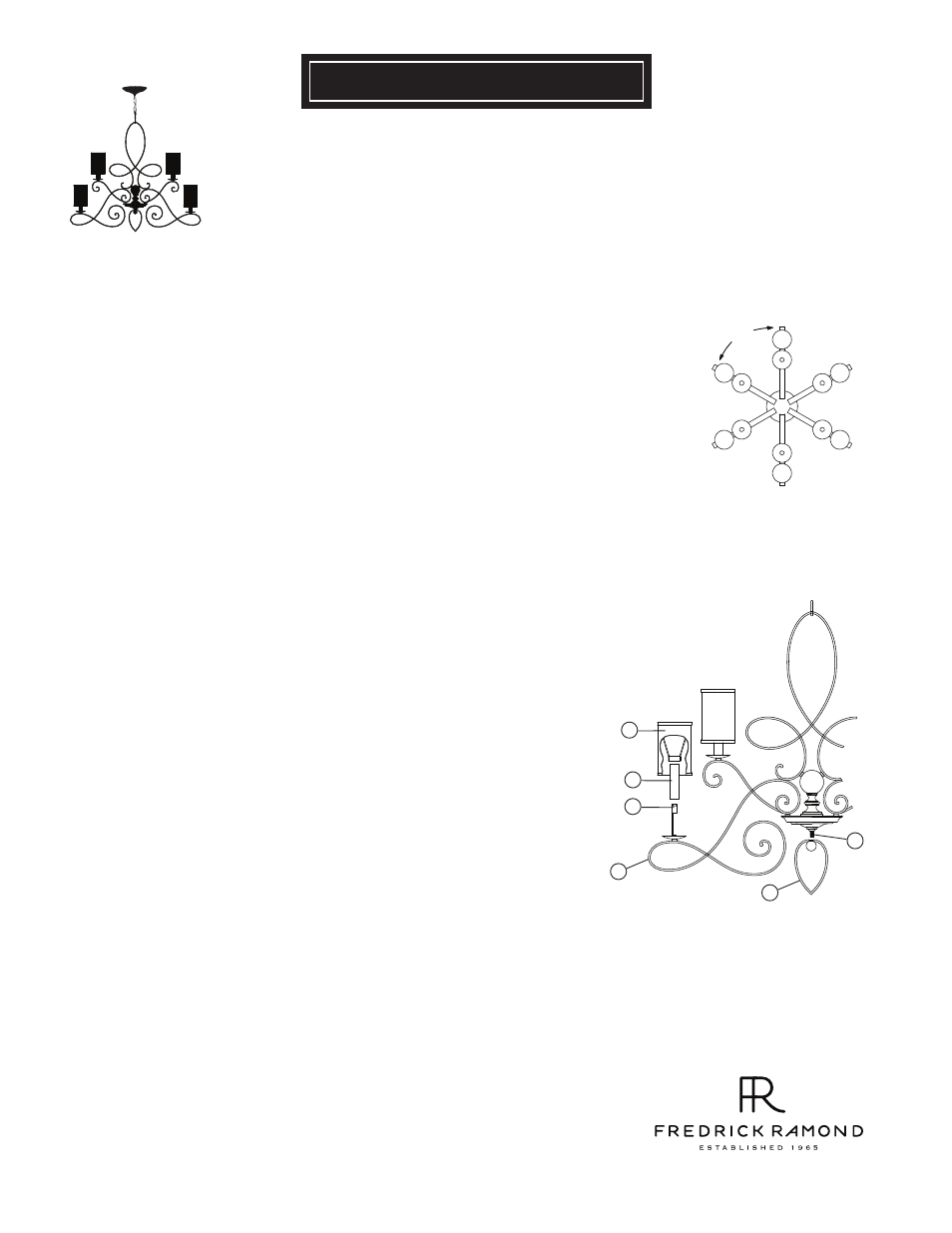

ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first assembling the body of the
fixture, installing the mounting hardware to the junction box, making all necessary
electrical connections, hanging the fixture and then installing the fixture glass.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
Refer to Hanging Instruction Sheet [FRIS19] to hang fixture. Then refer back
to this sheet to continue installation of this fixture.
STEP 3
1 - See Drawing 2.
2 Slip shade (3) onto top of candle sleeve (2).
3
4
Thread ball knob / finial (4) onto end of stem (5) and tighten to secure part .
Making sure part (4) is parallel with two opposing arms.
[DRAWING 1]
Bulbs: 12-60W CAND. Replacement Parts: GLASS: R42506SH
01.01.11
800.421.3517 WWW.FREDRICKRAMOND.COM
Fixture can now be lamped accordingly.
STEP 2
2
3
1
4
6
[DRAWING 2]
Carefully fold out arms (a) until they are equally spaced 60 degrees apart.
Slip candle sleeve (2) over socket (1)
1
a
a
a
a
a
a
a
60
2 Fixture can now be installed, please return to this section to completer assembly
after installation.
