assembly instructions

Family: Ledgewood Item No. 1121 VK/MR

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. Remove ball knobs (2) located under the lip of the roof (1) and lift roof (1) off of
cage assembly (4) - see Drawing 1
2. Fixture can now be lamped accordingly.
3. Place roof (1) back onto cage assembly (4).
4. Line up holes (5) in the roof (1) with the holes (6) in the cage assembly (4).
5. Thread ball knobs (2) back into holes to secure roof (1).

*** The construction of this fixture will be accomplished by first assembling
main body of the fixture, making all necessary electrical connections, and then
mounting the fixture to pre-installed post.

start here

1121

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Note: Maximum wattage for 1121 fixture is 100 watts per bulb.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

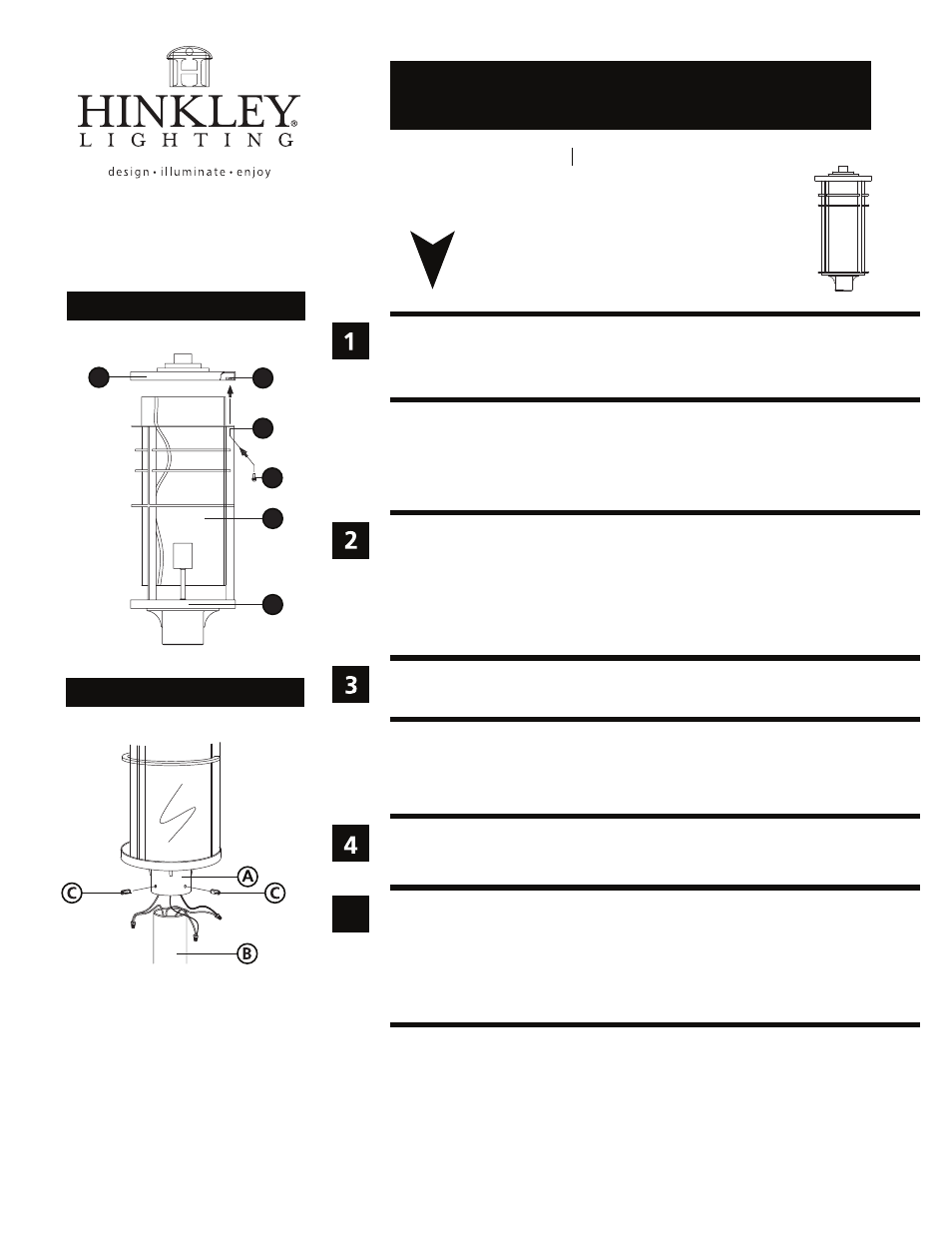

Drawing 2 - Fixture Mounting

Drawing 1 - Fixture Assembly

1

5

6

4

3

2

1. Fixture is mounted using 3 - 1/4-20 set screws.
2. Make all necessary electrical connections following wiring instructions below.

5

1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B) making sure all wire connections are tucked inside the pole - see Drawing 2.
2. When fixture is slipped over pole make sure no wires are being pinched between
the top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screws (C) to secure fixture to post.

2.7.08
