FRIS19-91
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
01.01.12
800.421.3517 WWW.FREDRICKRAMOND.COM

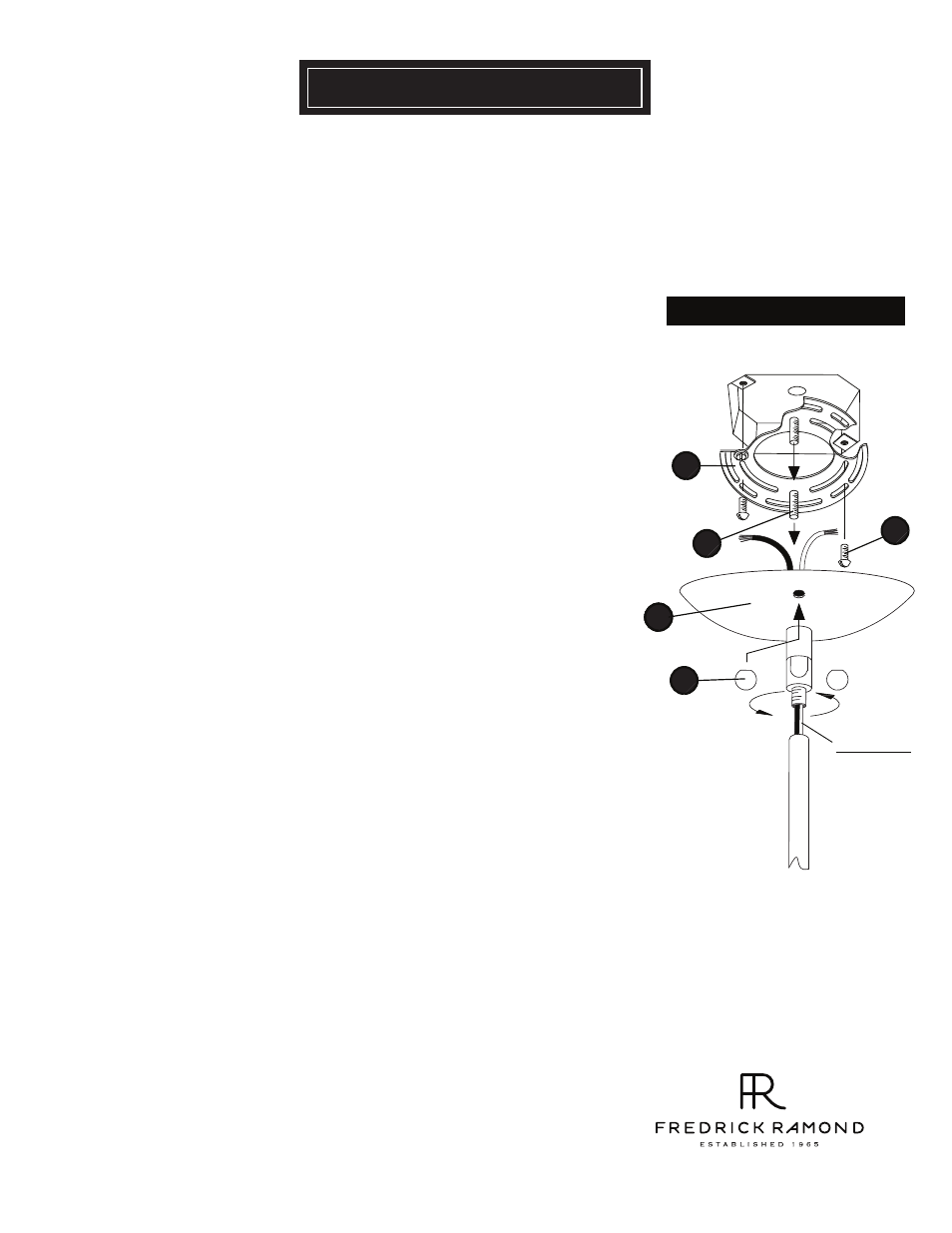

Drawing 1 - Mounting instructions
2223
4
2
1
5
supply wire
Shut off electrical current before starting. If the fixture you are replacing is
turned on and off by a wall switch, simply turn the switch off. If not, remove
the appropriate fuse (or open the circut breakers) until the fixture is dead.
• DO NOT restore current - either by fuse, breaker or switch - until the new
fixture is completely wired and in place.
Slip canopy assembly with swivel (3) along wire and thread onto top of rods
that are attached to fixture.
STEP
1
1
STEP
2
Thread two long 8-32 (1) screws provided into the mounting strap (2).
Note: the two screws should be threaded into holes that line up with the holes
(3) - see Drawing 1.
Attach mount strap (2) to junction box with two short 8-32 screws (5) .
Make wire connections following the instructions on (I.S.18) instruction sheet
provided.
Slip canopy/fixture over screws (1) and secure fixture with ball knobs (4).
in the canopy
STEP
3
