Hinkley Lighting HAMPTON 3200AN - Manual

assembly instructions
Family: Hampton Item No. 3200 AN/BR
1. Find a clear area in which you can work.
1. Attach acrylic lens assembly (1) by threading coupler (2) onto end of lower upright
stems (3) - see Drawings 1 and 2.
1. Fasten mounting strap (B) to outlet box (A) with the original box screws (C) - see
Drawing 3.
2. Thread nipple (D) into mounting strap (B) approximately 3/8”.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
.
*** The construction of this fixture will be accomplished by first assembling the
main body structure, installing the mounting hardware to the junction box,
mounting the fixture to the ceiling and then installing the shade.
start here
3200
9.31.09
3

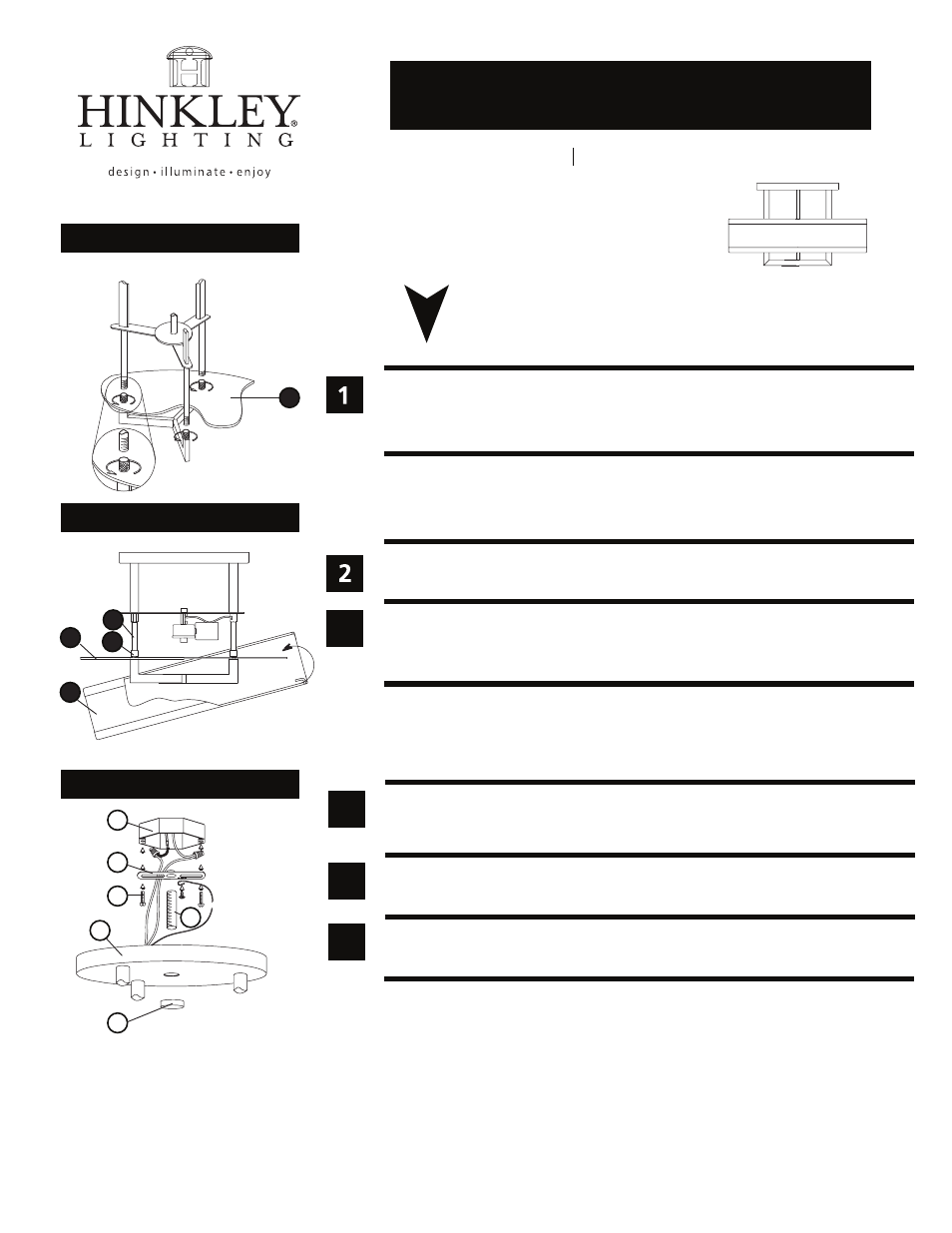

Drawing 1 - Fixtu
Drawing 2 - Fixture Assembly
Drawing 3 - Mounting Instructions
re Assembly
A
1
2
1
B
C
4
3
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this page to continue installation of this fixture. 4
5
6
1. Slip canopy (E) over nipple (D) and up against ceiling - see Drawing 3.
2. Thread decorative finial (F) onto end of nipple (D).
1. Fixture can now be lamped accordingly.
2. Slip shade (4) onto acrylic assembly (1) - see Drawing 2.
F
E
D
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
