Hinkley Lighting CASCADE 1831 - Manual

assembly instructions
Item No. 1831
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
.
start here
1831
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

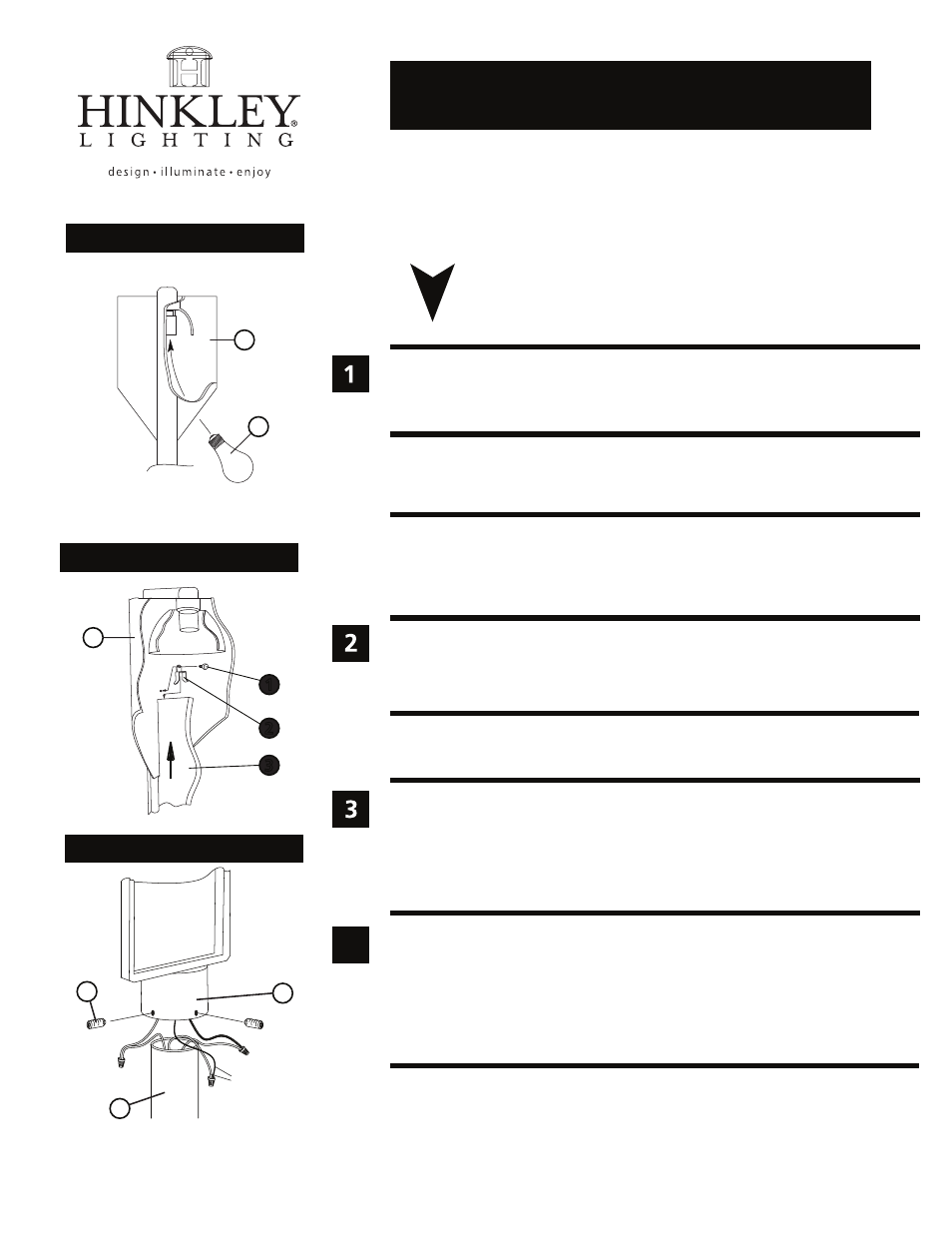

Drawing 1 - Installing lamp
*** The construction of this fixture will be accomplished by first lamping the
fixture making all necessary electrical connections, and then mounting the
fixture to pre-installed post.
01.01.13
Drawing 3 - Fixture installation
1. After wiring connections are complete, slip post fitter (F) over top of pre-installed
post (D) making sure all wire connections are tucked inside the pole - see Drawing 3.
2. When fixture is slipped over pole make sure no wires are being pinched between
the top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (E) into pre-tapped holes in post fitter.
4. Tighten set screws (E) with allen wrench provied to secure fixture to post.
ground wires
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
Drawing 2 - Glass Replacement
D
E F
4
GLASS INSTALLATION OR REPLACEMENT: please follow the instructions below:
1. Reach up into roof (B) of fixture, and on the side, unthread barrel knob (1) and remove
- see Drawing 2.
2. Lift glass clip (2) upward and remove. Repeat process for other side making sure to
support glass when second clip is removed.
3. Install / remove glass (3) slip glass into fixture or remove broken glass by lifting up.
When installing glass slip bottom of glass into support slot in bottom of fixture.
4. Slip glass clips (2) over top of glass and thread barrel knob (3)
back in place to secrure glass, repeat for other side.
1. To install lamp in fixture slip bulb (A) throught opening in bottom of fixture
roof (B) - see Drawing 1.
2. Thread bulb (A) into socket.
B
A
B
1
2
3
