Hinkley Lighting CELLO 4563AT - Manual

assembly instructions
Family: Cello Item No. 4563 AT
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the glass.
start here
45
63
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To assemble main body, thread center column (2) into coupler (A) located on the top
of the arm assembly (1). Making sure to align studs (C) on top of center column (2),
over studs (D) of arm assembly (1) - see Drawing 2.
2. Rotate arms (B) of arm assembly (1) outward until they are approximately 120
degrees apart - see Drawings 1 & 2.
3. Slip decorative scroll (3) onto stud (C) at the top and stud (D) at the bottom.
4. Secure decorative scroll (3) using ball knobs (4).
5. Please refer to hanging instruction sheet (I.S. 19) provided to hang fixture. Then
refer back to this sheet to continue installation of this fixture.
1. To install glass, remove socket ring (5) from the socket (E) - see Drawing 2.
2. Slip glass (6) over socket (E) and hold in position.
3. Thread socket ring (5) onto socket (E) and tighten to secure glass (6).
4. To assembly bottom finial, thread stem (7) into bottom of fixture
approximately 3/8”.
5. Slip break (8) onto stem (7) and then thread deocrative knob (9) onto end of stem
and tighten.
4. Fixture is complete and can now be lamped accordingly.

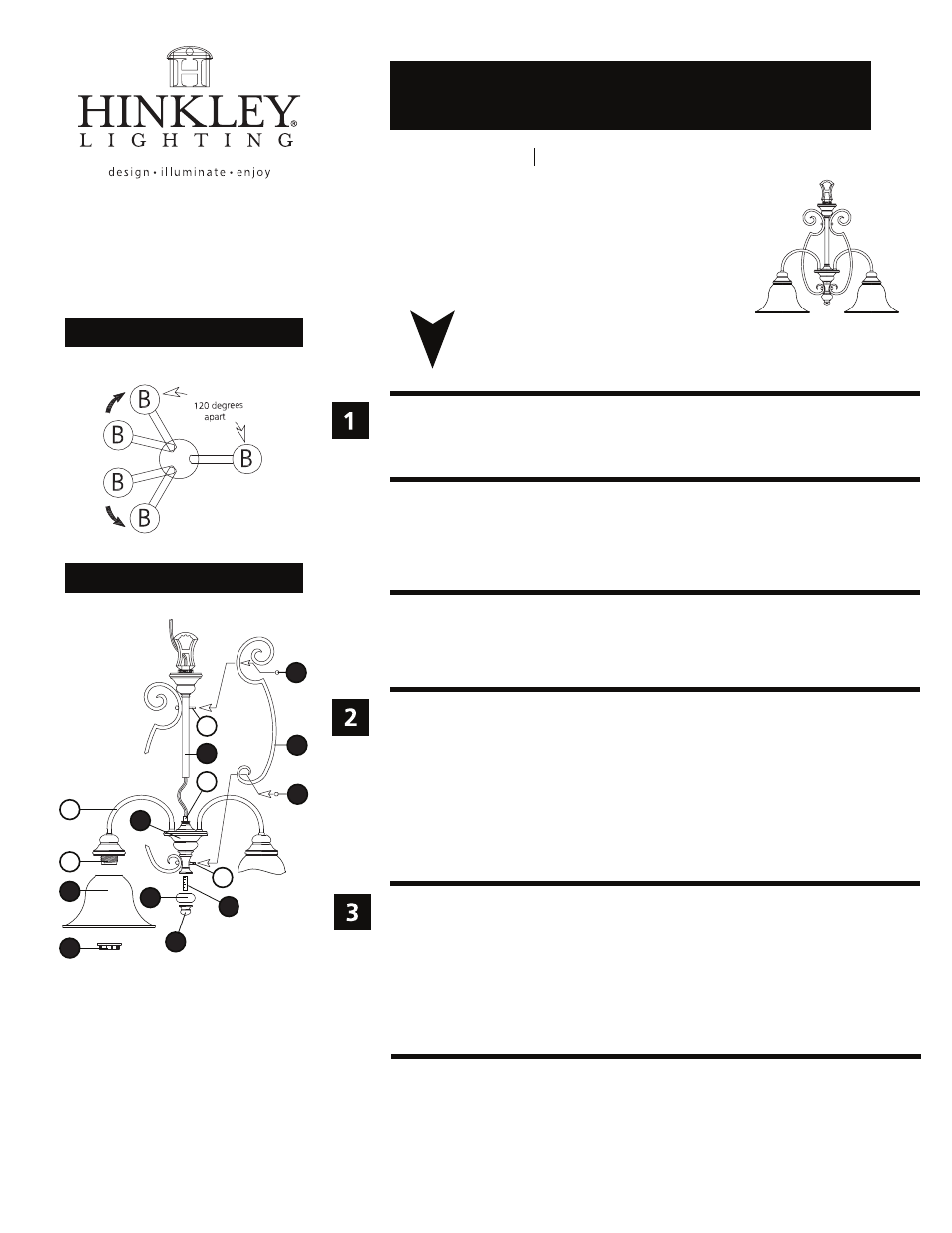

Drawing 1 - Fixture Assembly
Drawing 2 - Fixture Assembly
4
C
2
D
1
A
E
6
5
3
4
B
2.7.08
7
8
9
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
