Page 2

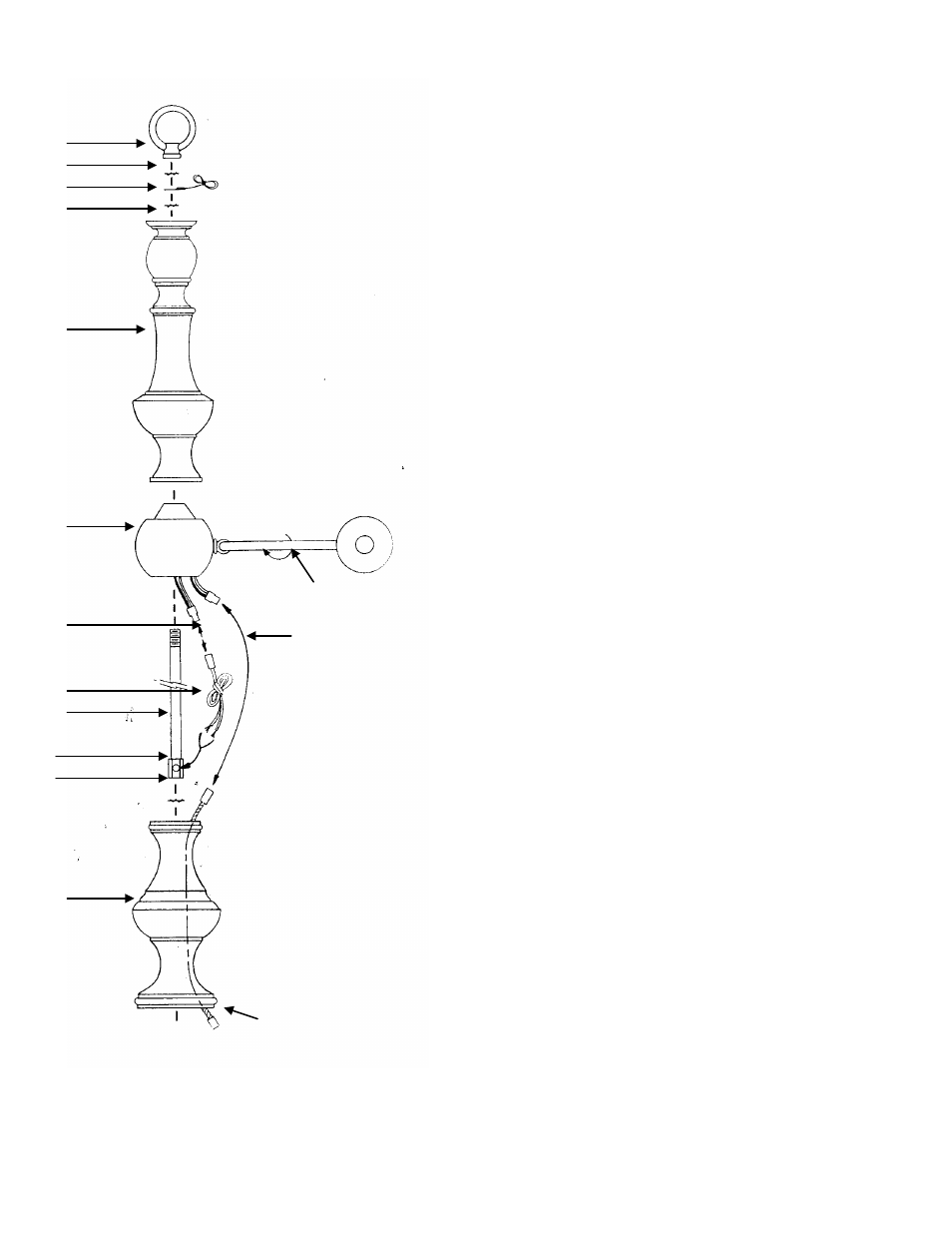

30
29
28
27
26
23
31
24
25
22
20
21
19
18
17
Lower column (18) over tube (13) with
wider/open end of column pointing down toward
middle body (10). Before resting column on body,
push wire connectors (17) together until you hear
them click. Rest column on middle body, making
sure that the column bottom checks inside the
large hole and the top of the tube (13) goes
through the top-center column hole.
Place lockwasher (19) over top of tube (13).
Screw tube (20), with hex hickey (21), on to
top end of tube (13). USE PLIERS TO TIGHTEN
TUBE!
Find the coiled piece of power supply wire
(22) provided with this fixture. One end has a wire
connector and one end doesn’t. Uncoil the wire
and push the end without a wire connector
through the hole in the hex-hickey (21) and UP
through the tube (20). When the end of the cord
comes up out of the top of the tube, pull that end
until there are about three inches of cord left
coming out of the hex-hickey hole.
Lower small body (23) over tube (20) so that
the large hole is facing down toward the column.
Before resting the body on the column, make two
wire connections. First, make the connection (25)
between the wire connector coming from the top
of the column and either one of the wire
connectors coming out of the small body. Push the
connectors together until you hear them click.
Second, make the connection (24) between the
power supply wire and the second wire connector
coming out of the small body. Push the connectors
together until you hear them click. Now you can
rest the small body on the column. Make sure that
the top of the column fits inside the large hole of
the small body.
Thread the power supply wire through the
open end of column (26) (large hole) and out the
small hole at the closed end. Lower the column
over the tube (20) and the small body (23). Make
sure that the open end of the column is facing the
small body and the end of the tube (20) goes
through the small hole at the top of the column.
Place one lockwasher (27) over the top of
the tube (20).
Place the groundwire ring (28) over the
lockwasher (27).
Place one lockwasher (29) over the top of
the groundwire ring (28).
Screw loop (30) on to top of tube (20).
TIGHTEN LOOP!
Turn small arms (31) 90 degrees so that the
light sockets point up.
