Hinkley Lighting CAMERON FR42341PCM - Manual

fR42341pCM
FREDRICK RAMOND
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished assemblying main body,
attaching the mounting strap to the
electrical connections, and then hanging the fixture from the ceiling.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1 Prepare mounting strap (a) by threading the two longest screws (b) into the back
of the mounting strap (a), making sure the holes into which the screws are
threaded match the spacing of holes (d) in the backplate (e)
- See Drawing 2.
2 Attach mounting strap (a) to junction box (j) using two screws (c).
3 Make electrical connections from supply wire to fixture lead wires. Refer to
instruction sheet [FRIS18] and follow all instructions to make all necessary
wiring connections. Then refer back to this sheet to continue installation of
this fixture.
4 To mount fixture, slip the two mounting screws (b) through the two mounting
holes (d) in the backplate (e).
5 While holding fixture in place, thread the two ball knobs (f) on to the end of the
mounting screws (b), and tighten.
STEP 2

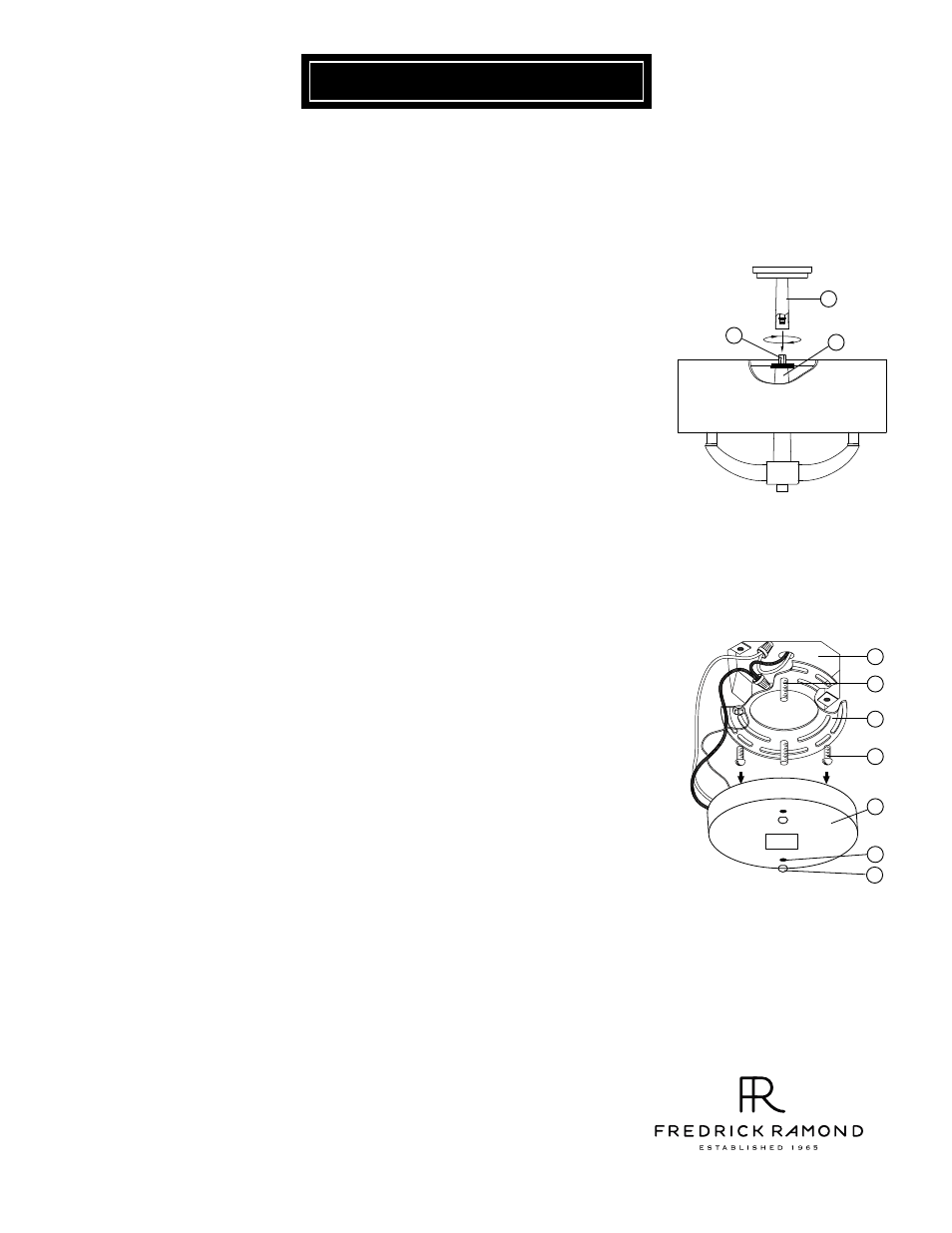

[DRAWING 1]
[DRAWING 2]
Replacement Parts: SHADE: R47341SH
j
a
c
e
d
f
b
01.01.12
800.421.3517 WWW.FREDRICKRAMOND.COM
junction box, then making all necessary
1
2
To assembly main body of fixture, slip wires from center column (1) of main body
assembly through center tube of upper column (2) - see Drawing 1.
Thread upper column (2) onto coupler (3) located at the top of the center column (1).
Fixture is ready for installation, please follow instructions below. 3
