assembly instructions
Family: Thistledown Item No. 4179 VZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the glass.
start here
41
79
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To assemble main body, slip bottom tube (2) along wire and thread into coupler (A) -
see Drawing 1.
2. Slip top column (1) onto bottom tube (2).
3. Please refer to the hanging instruction sheet (I.S. 19-50) provided to hang this fixture.
Then refer back to this sheet to install glass.
1. To install glass, remove socket ring (5) from socket (F) - see Drawing 2.
2. Slip glass (6) over socket (F).
3. Thread socket ring (5) on socket (F). Hand tightening only.
Note: Over tightening ring, using a tool, may cause damage to glass.
4. Fixture can now be lamped accordingly.

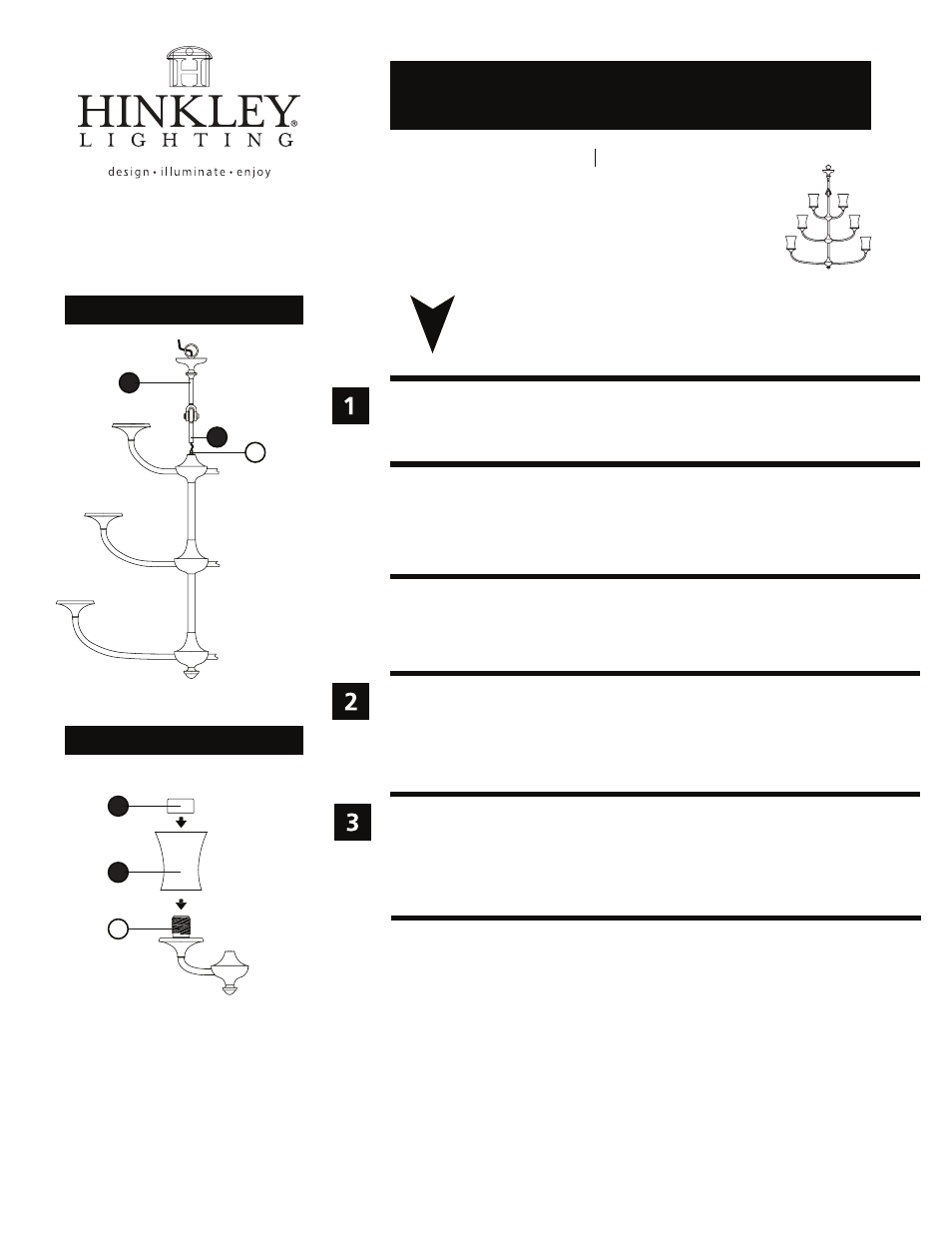

Drawing 1 - Fixture Assembly
1
Drawing 2 - Glass Installation
6
5
F
A
2
5.29.08
