Hinkley Lighting CARLTON 4779SL - Manual

assembly instructions
Family: Carlton Item No. 4779
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To assemble fixture, slip loop (1) along wire and thread onto threaded tube (B) at the
top of fixture - see Drawing 2.
2. Rotate arms (A) until they are equally spaced 30 degrees apart - see Drawing 1.
3. Slip candle sleeve (2) over each socket (C) - see Drawing 2.
*** The construction of this fixture will be accomplished by first rotating the fixture
arms into the correct position, assembling the basic fixture, installing the mounting
hardware, making all necessary electrical connections, mounting the fixture to the
ceiling and then hanging the crystals.
start here
4779
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

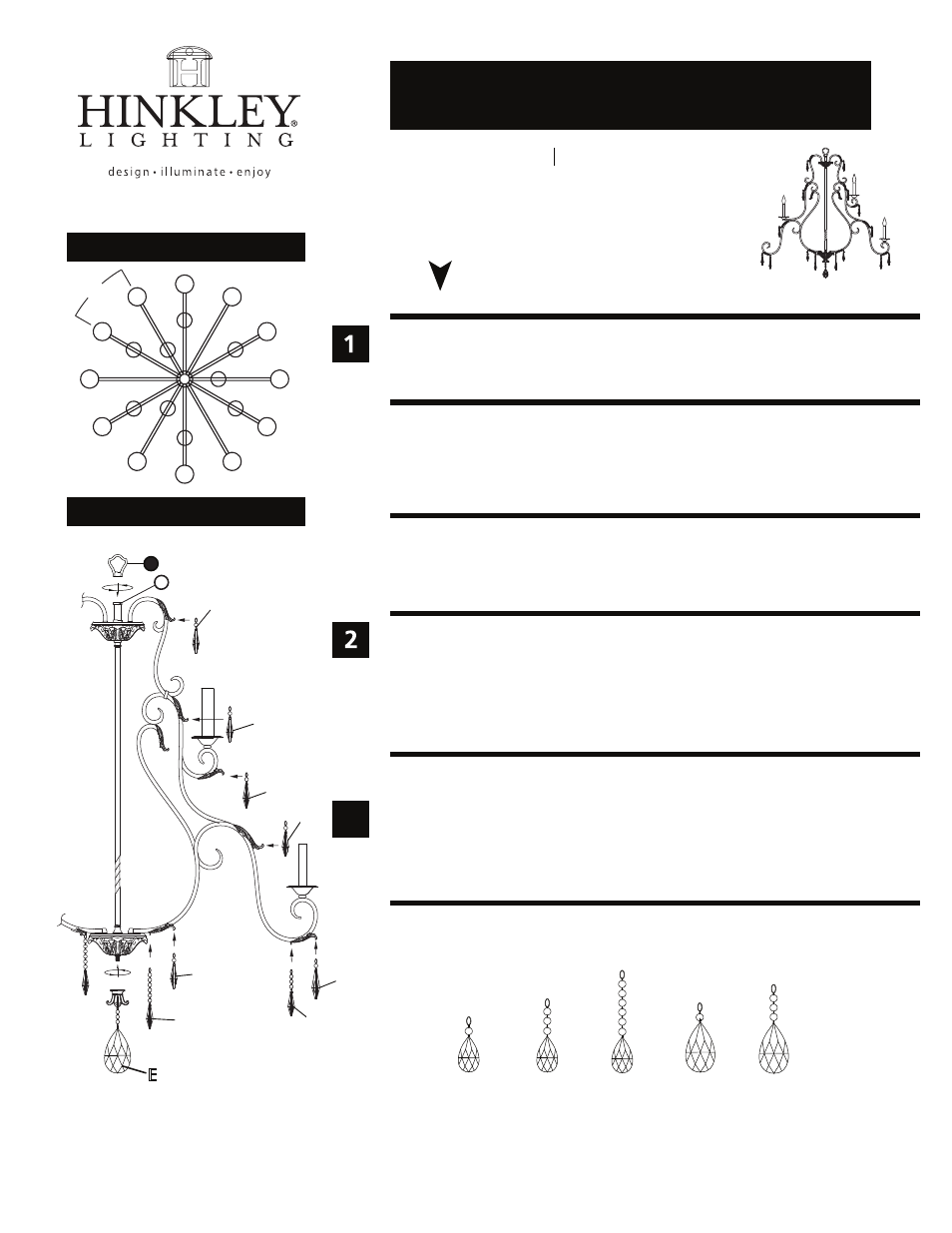

Drawing 1 - Fixture Assembly
Drawing 2 - Fixture Assembly
3
01.01.13
4. Fixture can now be installed, please refer to instruction sheet (IS-19-50) provided. After
completion please return to this sheet to finish assembly.
1. To complete assembly, first thread bottom finial (3) with crystal (E) attached onto
bottom of fixture - see Drawing 2.
2. Proceed to attach crystals using Drawing 2 as a reference quide. If a crystal must
be replaced, please use the part no.s provided below the crystal drawings when
ordering.
3. The crystals are referenced with the quantity ( Ex. ? x 6) required following the
letter.
R4778CRY-A R4778CRY-B R4778CRY-C R4775CRY-B R4775CRY-A
B C D
CRYSTAL IDENTIFICATION
A
A A
A
A
A
30º
A
A
A
A
A
A
A
A
A
A
D X 12
A X 51
B X 12 C X 12
1
B
A E
E
