Hinkley Lighting LUNA 1647SK - Manual

assembly instructions
Family: Atlantis Item No. 1647
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prepare mounting strap (A) by threading the two 8-32 x 1 mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (E)
in the fixture (F).
2. Attach mounting strap (A) to junction box (J) by threading 2 screws (C) provided
into holes (D) of junction box (J).
3. Un-thread the 2 screws (3) from the bottom lens cover (4) and thenremove lens
cover (4) - see Drawing 2.
4. Un-thread thumb screws (G) from inside the lower lamp compartment of fixture (F).
5. Remove ribbed plate (H) from the center of fixture (F), exposing mounting holes (E).
1. To mount fixture, line up holes (E) on fixture (F) and slide fixture over both 8-32 x 1
screws (B) - see Drawing 1.
2. While holding fixture in place, thread the two 8-32 battery nuts (5) provided onto
screws (B).
3. Re-insert ribbed plate (H) and secure using thumb screws (G).
1. Bottom of fixture can now be lamped accordingly.
2. Re-place bottom lens cover (4) and secure with the 2 screws (3) - see Drawing 2.
3. To lamp top of fixture. remove lens cover (6) by un-threading 2 screws (7).
4. Top of fixture can now be lamped accordingly.
5. Replace lens cover and secure with the 2 screws (7).
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then lamping the fixture.
start here
1647
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

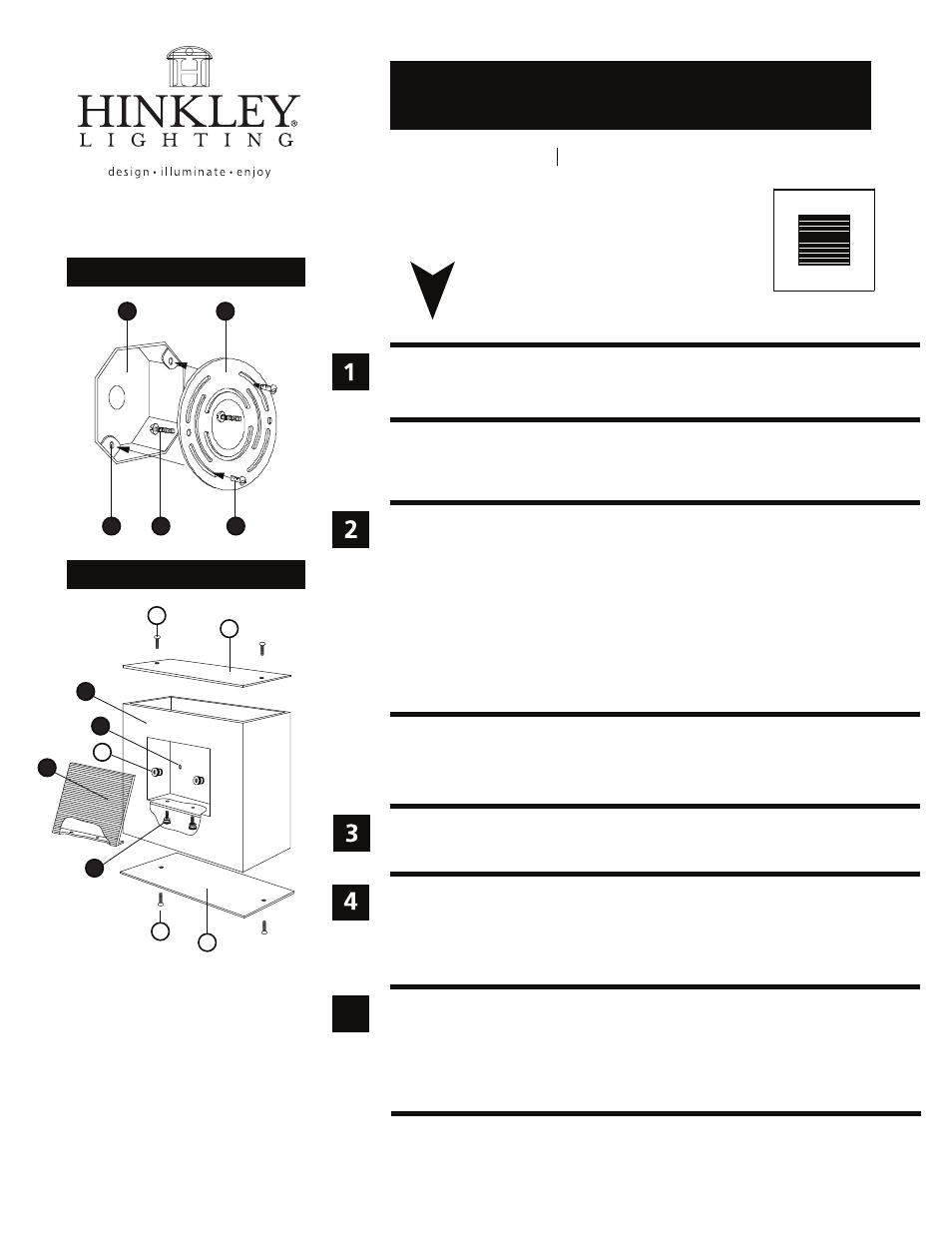

Drawing 1 - Fixture Mounting
Drawing 2 - Fixture Mounting
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
5
3
4
E
F
A J
H
G
7
6
C B D
2.7.08
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
