Hinkley Lighting XANADU FR43352PSS User Manual
Xanadu, Crystal 1, Crystal 2
FR43352
xANADU
ASSEMBLY INSTRUCTIONS
This fixture comes completely assembled.
SAFETY WARNING:
Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
Refer to Hanging Instruction Sheet [FRIS19] to hang fixture. Then refer back
to this sheet to continue installation of this fixture.
STEP 2
This Xanadu chandelier uses 3 sizes of half pear crystal pendalogues.
1
Working from the top of the fixture down, Attach medium size crystal penda-
logues (2) to eyelets (b)
- See Drawing 1.
2
Attach smallest crystal pendalogues (1) to eyelets (a).
3
Attach largest crystal pendalogues (3) to eyelets (c).
4
Repeat steps 1-3 for remaining scrolls.

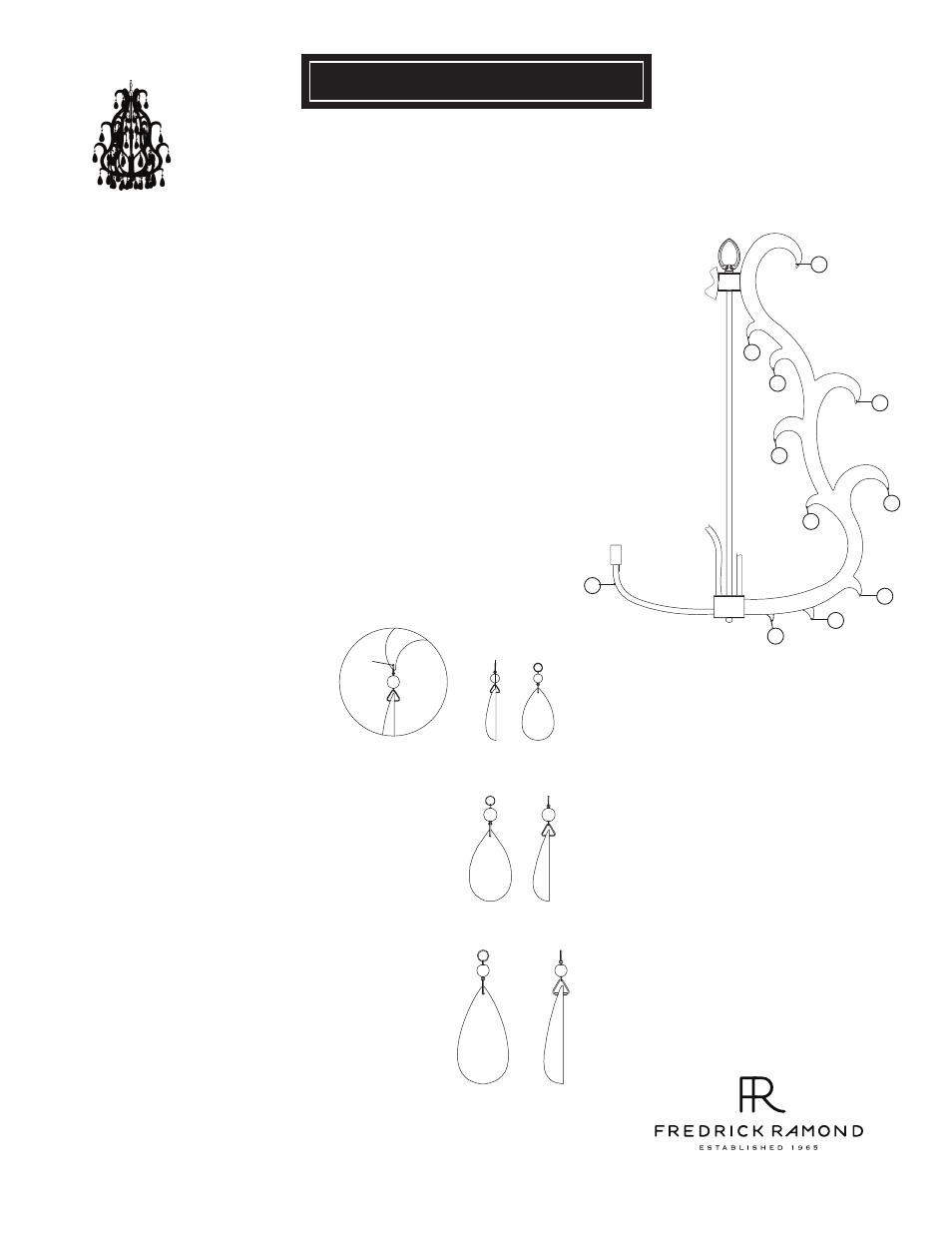

[DRAWING 1]
Bulbs:
60W CAND.
Replacement Parts:
CRYSTALS: R43358CRY-A , R43358CRY-B, R43358CRY-C
b
a
c
c
b
b
8.13.08
800.421.3517 WWW.FREDRICKRAMOND.COM
crystal 1
R43358CRY-A
crystal 2
R43358CRY-B
crystal 3
R43358CRY-C
b
c
c
c
eyelet
a
