assembly instructions

Item No. 1382

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first assembling
main body of fixture, making all necessary electrical connections, hanging the
fixture from the ceiling, and then installing the glass.

start here

1382

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer to instruction sheet (I.S. 19) for hanging instructions. Then refer back to
this sheet to continue installation of this fixture.

1. Slip loop (L) along wire and thread onto stem (A) and tighten.

2. Slip candle sleeve (2) over socket (S) - see Drawing 1.

3. Thread center stem (3) into center hole (B) located at the base of cluster assembly (C)

which is attached to the main body assembly (1).

4. Fixture main body (1) can be installed at this time prior to installing the glass.

1. Before installing glass, fixture can be lamped accordingly.
2. To install glass, slip glass (4) into cage assembly (5) making sure bottom of glass rest

in ring (R).
3. Slip center stem (3) through bottom center hole in cage assembly (5) and hold in

position.
4. Thread hex nut (6) onto center stem (3).
5. Thread decorative knob (7) onto end of center stem (3) to complete assembly.

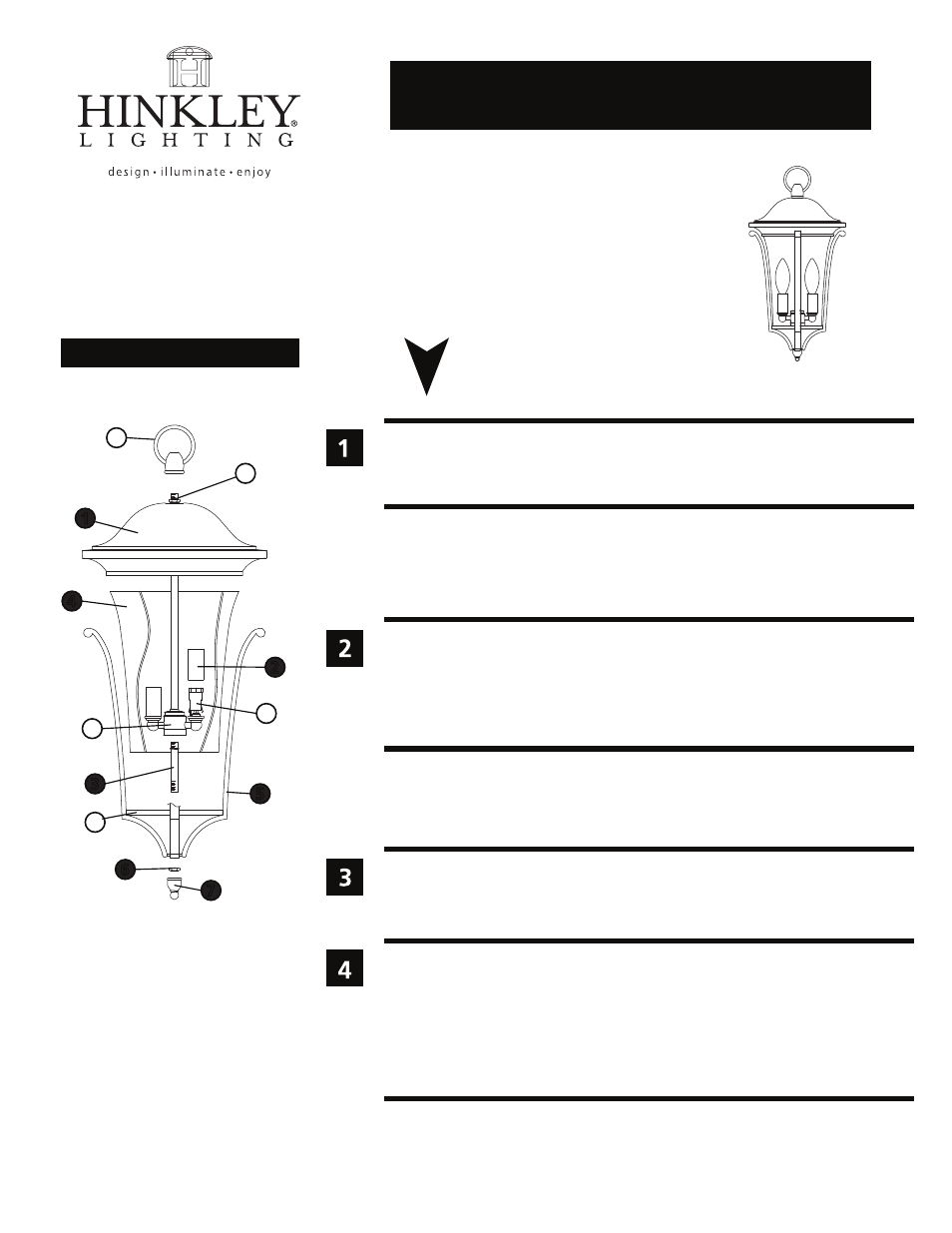

Drawing 1 - Fixture Assembly

01.01.13

C

R

S

1

2

3

4

5

6

7

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com

A

L
