Hinkley Lighting YORK 1845 - Manual

assembly instructions
Item No. 1840 / 1844 / 1845
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To install glass panels (2), slip them up through the open bottom of the cage (1). The center
stem that is attached to the socket cluster assembly (not shown) is on a swivel and can be moved
to aid in installing the glass - see Drawing 1.
2. Slip bottom of glass panels (2) into channel (3) in bottom of cage (1) tip top of panel into
position, and bend over clips (4) to secure glass in cage. Repeat procedure for remaining panels of
glass.
*** The construction of this fixture will be accomplished by first installing the glass, attaching
mounting hardware to the junction box, making all necessary electrical connections, attaching
the fixture to the wall.
star t here
1844
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

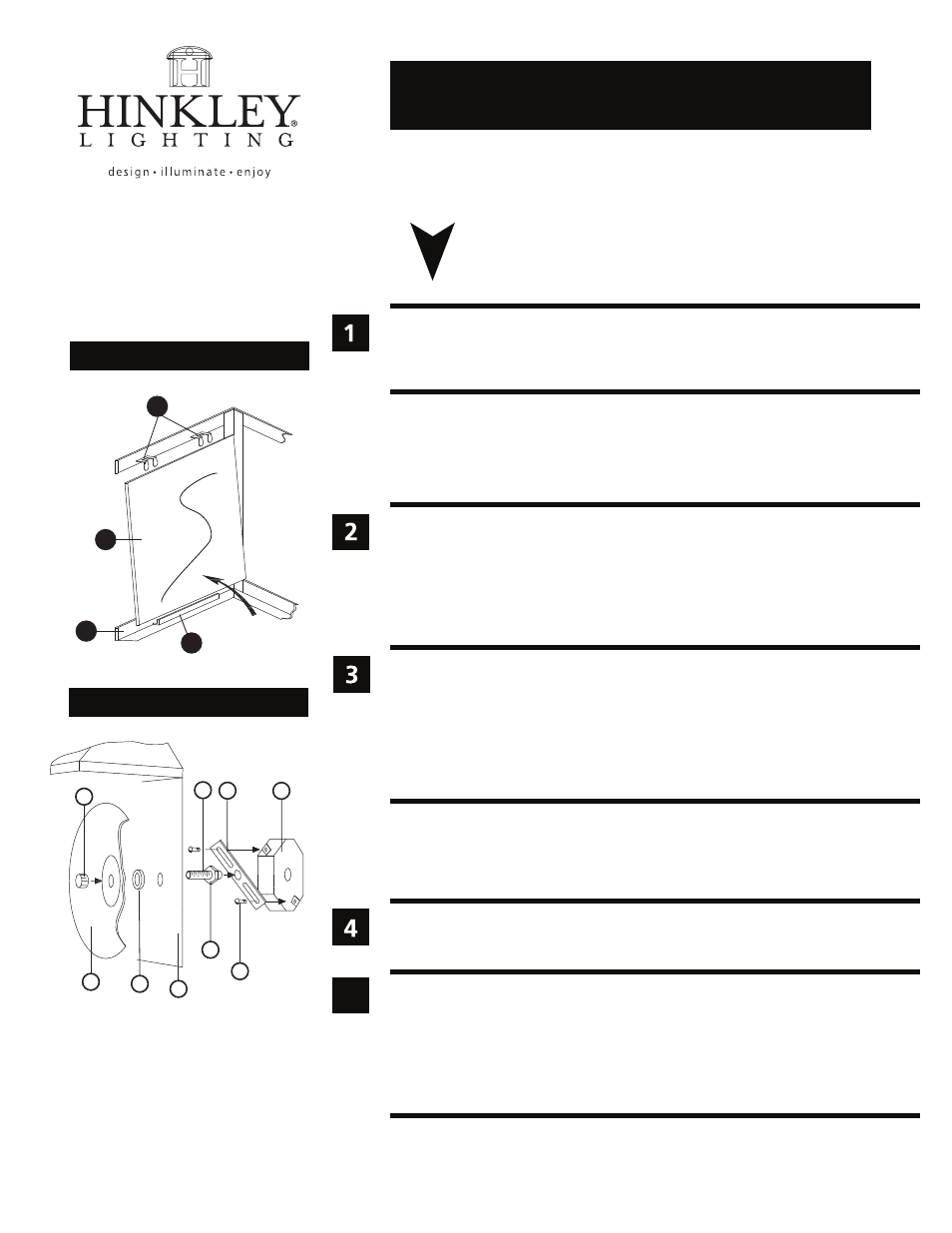

Drawing 1 - Glass Installation
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S. 18)
and follow all instructions to make all necessary wiring connections. Then refer back to this sheet to
continue installation of this fixture.
5
6.1.12
Drawing 2 - Fixture Mounting
1. Prepare threaded tube (C) by threading on hex nut (D) approximately 1/2”.
2. Thread tube (C) in mounting strap (A), approximately 1/4 “ - see Drawing 2.
3. Attach mounting strap (A) to junction box (J) using two screws (B) provided.
4. It will be necessary to adjust threaded tube (C). This is done by slippiing the mounting hole (E)
over threaded tube (C) and holding the fixture against the wall. Adjust threaded tube (C) until
there is approximately 3/8” of thread showing inside the fixture. Remove fixture from wall and
tighten hex nut (D) against mounting bracket (A) to secure threaded tube (C) in place.
1. To mount fixture, slip center hole of backplate (E) over threaded tube (C) and hold fixture in
position - see Drawing 1.
2. Thread decorative nut (F) onto end of threaded tube (C) and tighten to secure fixture.
3. Slip reflector (G) onto threaded tube (C).
4. To complete assembly thread barrel knob (H) onto end of threaded tube (C) and tighten.
5. your fixture can now be lamped accordingly.
1840 1845
A J
B
C
E
F
H
D
4
3
1
2
G
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
