Hinkley Lighting KINGSLEY FR42728SLF User Manual

Kingsley

background image

FR42728SLF

KINGSLEY

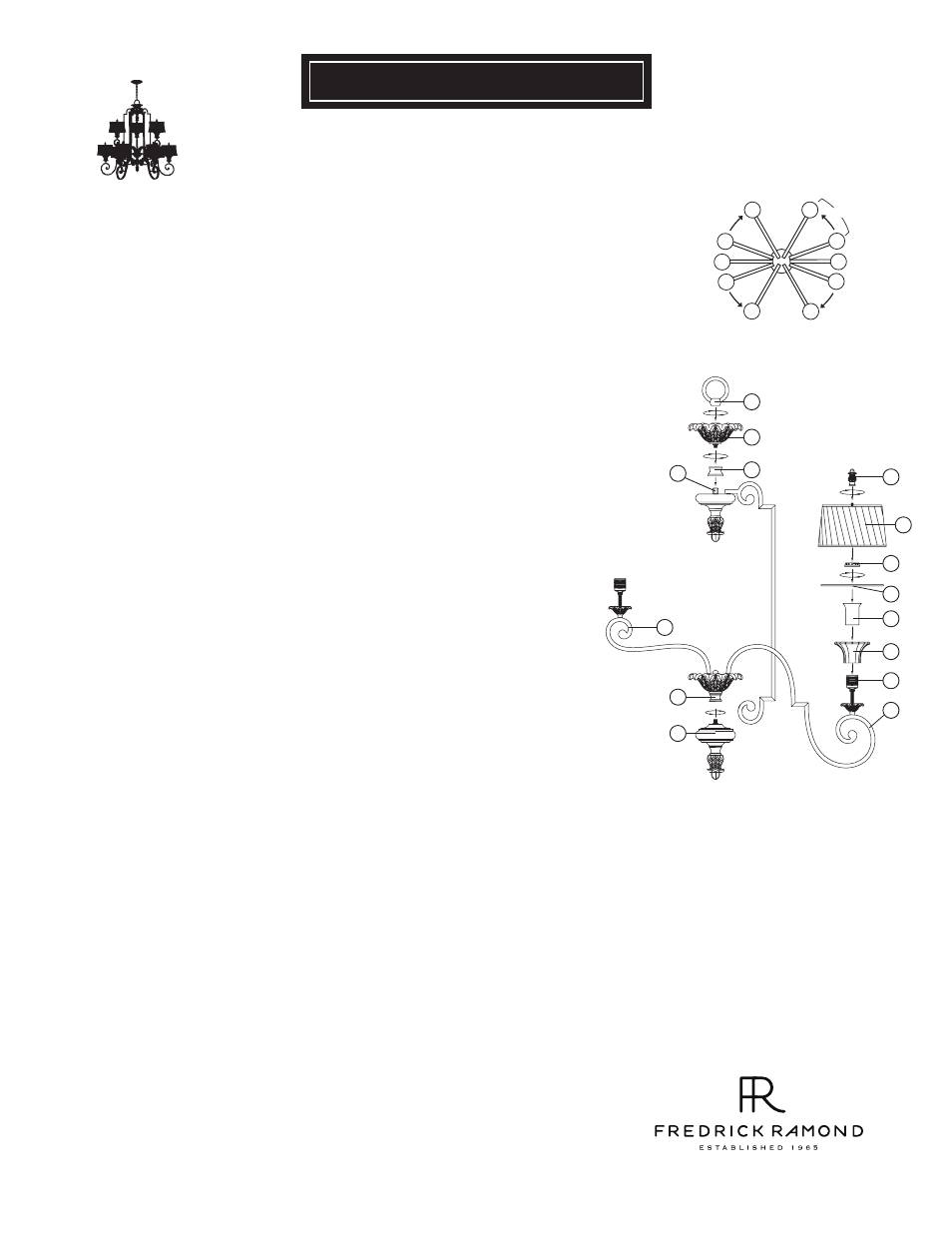

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first assembling the main body,

installing the mounting hardware to the junction box, hanging the fixture and then

installing the glass and shade.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

1

Rotate arms (a) of main body (1) until they are equally spaced 60 degrees apart -

See Drawing 1.

2

Rotate the 3 taller arms (b) until they are 120 degrees apart and equally spaced

between the lower arms (a).

3

Slip neck (2) along wire and over coupler (c) - See Drawing 2.

4

Thread decorative break (3) into coupler (c).

5

Slip loop (4) along wire and thread onto top of decorative break (3).

6

Thread bottom finial (5) onto bottom of main body (1).

STEP 2

Refer to Hanging Instruction Sheet [FRIS19] to hang fixture. Then refer

back to this sheet to continue installation of this fixture.

STEP 3

1

Slip glass bobesche (6) over socket (7) - See Drawing 2.

2

Slip cover sleeve (8) over socket (7) and into glass bobesche (6).

3

Slip center hole of glass lens (9) over socket (7).

4

Thread socket ring (10) onto socket to secure parts (6,8and 9). Hand-tighten

only, over tightening could damage the glass lens (9).

5

Fixture can now be lamped accordingly.

6

Clip shade (11) onto lamp.

7

Thread shade finial (12) onto top of shade (11).

[DRAWING 2]

Bulbs:

60W MED.

6.22.09

800.421.3517 WWW.FREDRICKRAMOND.COM

4

12

11

10

8

6

7

a

9

2

c

1

3

[DRAWING 1]

60°

a

a

a

a

a

a

a

a

a

a

b

5
