Hinkley Lighting MONTEREY FR42500BME User Manual

Monterey

FR42500BME

MONTEREY

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first installing the mounting hardware

to the junction box, making all necessary electrical connections, mounting the

backplate to the wall and then installing the fixture shade.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

Prepare mounting strap (a) by threading nipple into the center hole of

the mounting strap (a), approximately 1/4“- see Drawing 2.
2

Attach mounting strap (a) to junction box (j) using two screws (b) provided.

STEP 2

Make electrical connections from supply wire to fixture lead wires.

Refer to instruction sheet (I.S. 18) and follow all instructions to make all necessary

wiring connections. Then refer back to this sheet to continue installation of this fixture.

STEP 3

To mount backplate to wall, slip center hole of backplate (e) over nipple (c) and

hold fixture in position - see Drawing 2.

Thread decorative knob (d) onto end of nipple (c) and tighten to secure fixture.

STEP 4

To install shade (1) slip crossbar (2) into brackets (3) - see

Drawing 1.

Fixture can now be lamped accordingly.

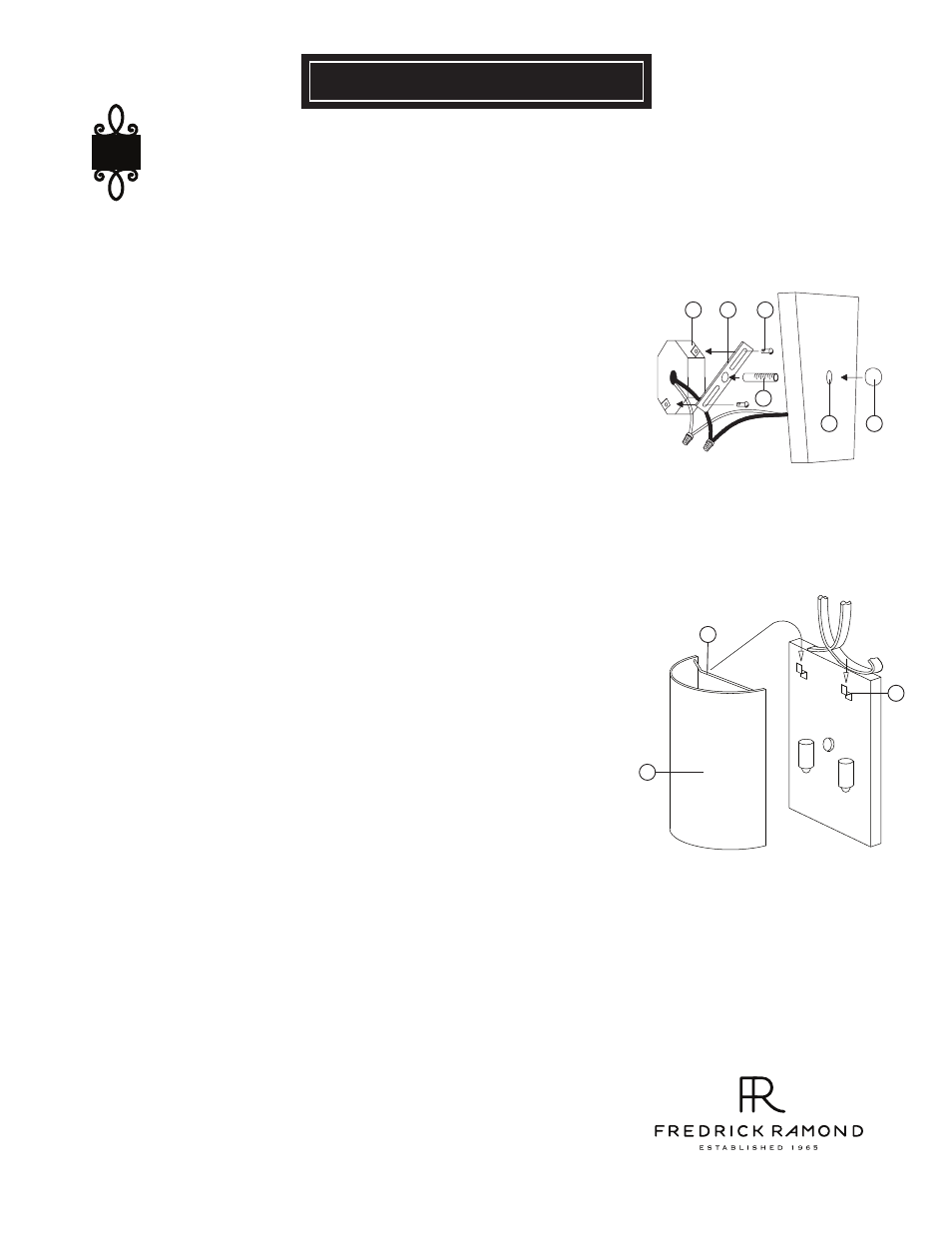

[DRAWING 1]

[DRAWING 2]

Bulbs:

2-60W CAND.

Replacement Parts:

SHADE:

R42502SH

01.01.11

800.421.3517 WWW.FREDRICKRAMOND.COM
