assembly instructions
Family: Saturn Item No. 1904 OI/MT/VK
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To lamp fixture, remove top strap (2), located at the top of the main body assembly
(1) by removing the two ball knob screws (3) from each end of the strap (2) - see
Drawing 2.
2. Fixture can now be lamped accordingly.
3. Replace strap (2) and secure with ball knob screws (3) removed earlier.
4. Thread roof of fixture (4) onto nipple (5).
*** The construction of this fixture will be accomplished by first lamping the fixture,
installing the mounting hardware, making all necessary electrical connections, and
then mounting the fixture to the wall.
start here
1904
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: Maximum wattage for 1904 fixture is 75 watts per bulb.

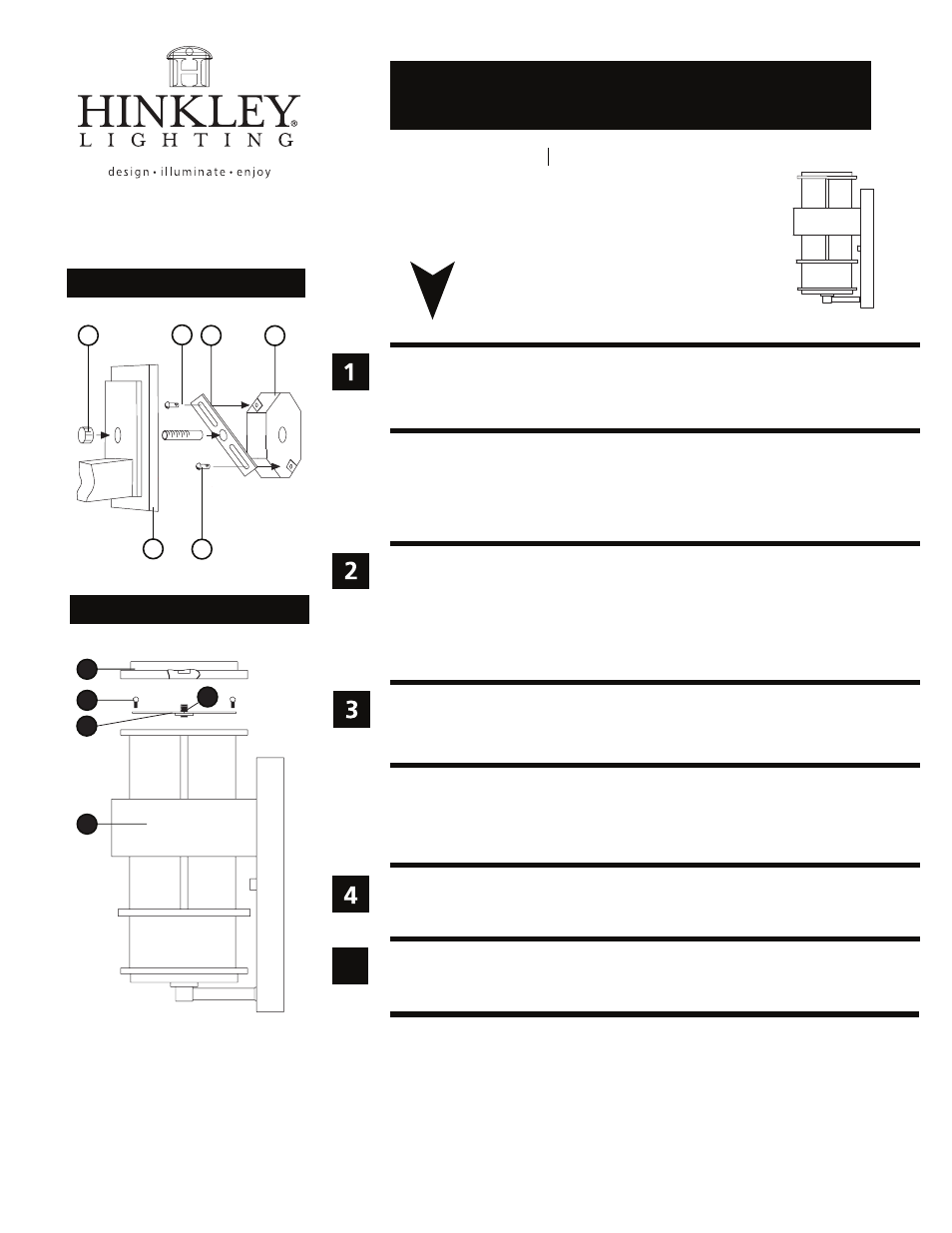

Drawing 1 - Fixture Mounting
Drawing 2 - Glass Installation
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then
refer back to this sheet to continue installation of this fixture.
4
3
1
2
5
5
A J
B
C D
E
1. Prepare mounting strap (A) by threading 1-5/8” nipple
into the center hole of the mounting strap (A), approximately 1/4“.- see Drawing 1.
2. Attach mounting strap (A) to junction box (J) using two 1” screws (C).
1. To mount fixture, slip center hole of backplate (E) over nipple (C) and hold fixture in
position - see Drawing 1.
2. Thread decorative knob (D) onto end of nipple (C) and tighten to secure fixture.
2.7.08
