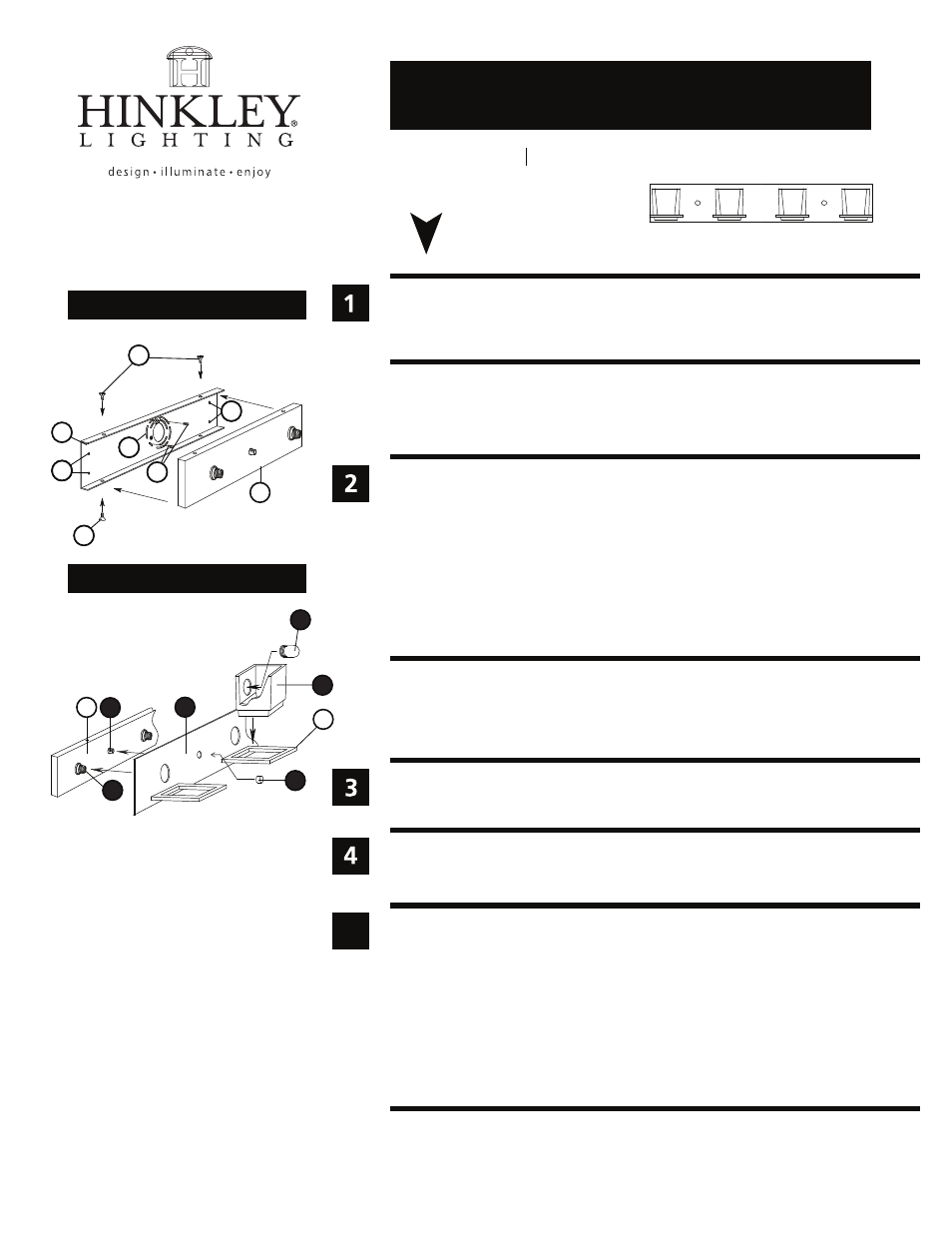

Hinkley Lighting LOLA 5774 - Manual

assembly instructions
Family: Lola Item No. 5774 BN
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting backplate to mounting plate, installing glass, and then attaching
cage assembly.
start here
5774
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Drawing 2 - Fixture Assembly
1. Glass installation is accomplished by first placing glass (1) into square metal holder
(G) attached to mounting plate assembly (2) - see Drawing 2.
2. Carefully lift glass (1) and mounting plate assembly (2) up and slip over socket
assembly (3) and center stem (4). Hold in position against backplate (B).
3. Thread barrel knob (5) onto center stem (4) and tighten to secure mounting plate
and glass to fixture.
4. Fixture can now be lamped accordingly. Bulb should not be touched with fingers, use
of a rag or cloth is recommended.
5. To complete assembly, slip bulb shield (6) over bulb and finger tighten shield onto
socket. Over tightening could make shield difficult to remove for relamping.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
1. Mount the fixture by sliding the back plate (B) over mounting plate (A) - see
Drawing 1.
2. Attach the back plate (B) to mounting plate (A) with screws (C).
4.26.10
Drawing 1 - Fixture Assembly
C C
C C
CF CF
CFF
C A
CFD
CE
B
1
2
5
6
B
G
4
3
1. Remove main mounting plate (A) from fixture back plate (B) by removing the four
flat head screws (C) - see Drawing 1.
2. Slide the wires from the junction box, through the large center hole, making sure
curved slots (D) line up with the threaded holes in the junction box.
3. Using two 8-32 screws (E) attach the main mounting plate (A) to the junction box.
A carpenters level can be used on the folded side of mounting plate (A) to check for
plum.
4. Additional mounting holes (F) are provided on retainer plate and do to weight of
fixture should be used. Use appropriate anchoring device for material to which fixture
will be mounted.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
