Hinkley Lighting TRAFALGAR 1315 - Manual

Family: Trafalgar Item No. 1315 MB/MO
H I N K L E Y L I G H T I N G 12600 Berea Road Cleveland, OH 44111 800.446.5539 / 216.671.3300 www.hinkleylighting.com
assembly instructions
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
*** The construction of this fixture will be accomplished by mounting the mounting
strap to the junction box, making all necessary electrical connections,mounting the
fixture to the wall, and then assembling the main body of the fixture.
Note: Maximum wattage for 1315 fixture is 40 watts per bulb.
start here

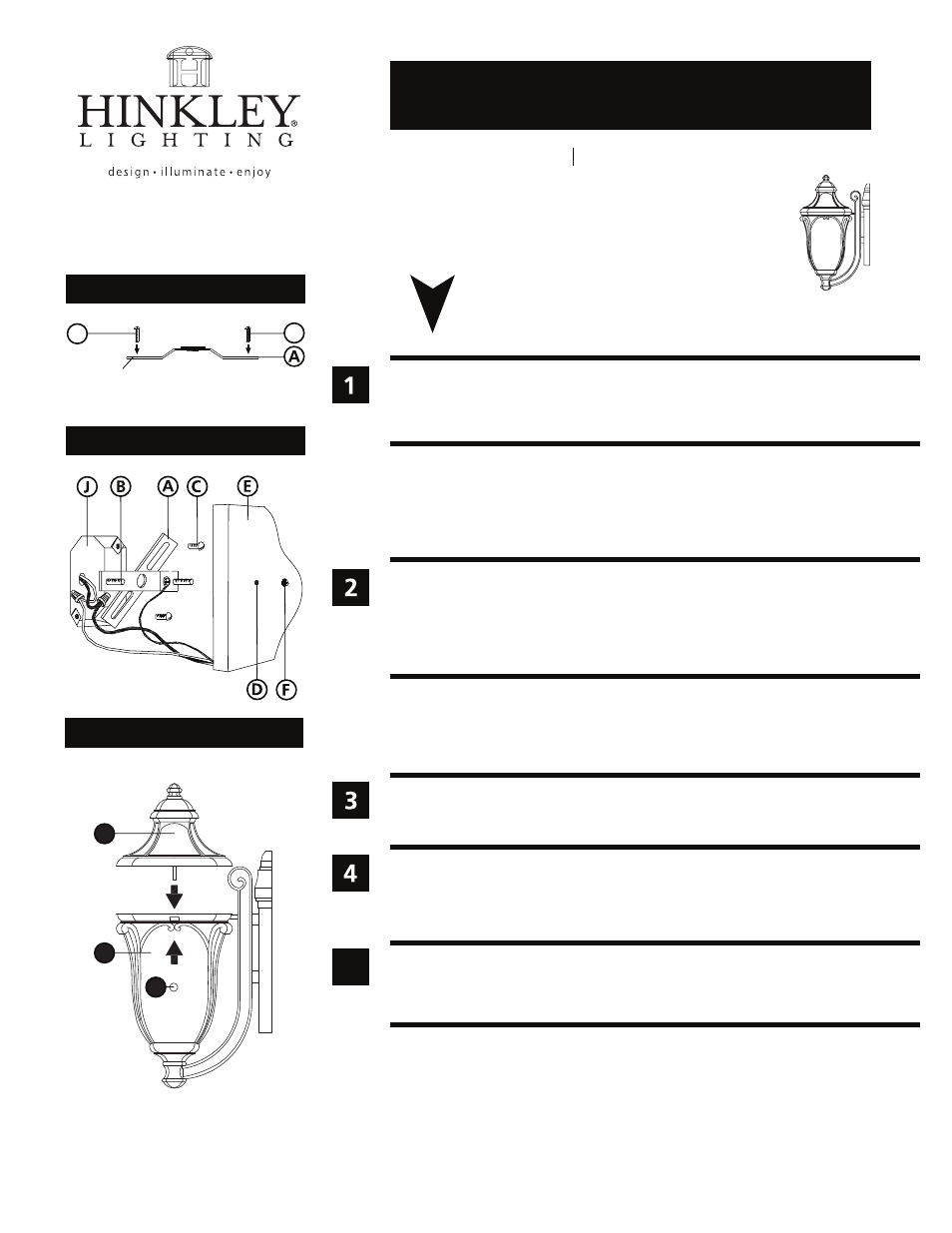

Drawing 3 - Fixture Assembly
13
15
1. Prepare gem strap (A) for mounting, by threading the two screws (B) provided into
the back of the gull wing bracket on gem strap (A) - see Drawing 1.
• Be sure that holes into which the screws are threaded match the spacing of the
mounting holes (D) in the back plate (E) - see Drawings 1 and 2.
3. Mount gem strap (A) to junction box (J) using two 1” screws (C) provided.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet 18 (I.S. 18) and follow instructions to make all necessary wiring connections.
Then refer back to this sheet to complete installation of this fixture.
1. Mount the fixture by slipping the holes (D) in the backplate (E) over the screws (B)
in the mounting strap (A) - see Drawing 2.
2. Hold fixture against wall and thread ball knobs (F) onto end of screw (B) showing
through the backplate (E).
Drawing 1 - Strap Detail
Drawing 2 - Fixture Mounting
B
(side view)
gull wing
bracket
backplate
B
1. Prior to assembling main body, fixture can now be lamped accordingly.
2. To assemble main body, attach the top cover (1) to the cage (3) by securing with ball
knobs (2) - see Drawing 3.
5
1
2
3
2.7.08
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
