Hinkley Lighting CAMERON FR42347PCM - Manual

fR42347PCM
FREDRICK RAYMOND
ASSEMBLY INSTRUCTIONS
Assembly of this fixture will be accomplished by first determining the length of stem
required, attaching the mounting strap to the junction box, making all necessary
electrical connections, hanging the fixture from the ceiling and then installing the
fixture glass.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
1 Determine the overall length you will need the assembled fixture to be.
2 Determine what stems will be needed to achieve the overall length you
require.(Additional stems are available and can be ordered. Ask your local
Fredrick Ramond representative or visit www.fredrickramond.com for
information.
3 Install stems by slipping them onto the supply wire of the fixture, threaded end up,
and threading them together.
STEP 2
1 Prepare mounting strap (a) by threading the two longest screws (b) into the back
of the mounting strap (a), making sure the holes into which the screws are
threaded match the spacing of holes (d) in the backplate (e)
- See Drawing 2.
2 Attach mounting strap (a) to junction box (j) using two screws (c).
3 Make electrical connections from supply wire to fixture lead wires. Refer to
instruction sheet [FRIS18] and follow all instructions to make all necessary
wiring connections. Then refer back to this sheet to continue installation of
this fixture.
4 To mount fixture, slip the two mounting screws (b) through the two mounting
holes (d) in the canopy (e).
5 While holding fixture in place, thread the two ball knobs (f) on to the end of the
mounting screws (b), and tighten.
STEP 3
1 To attach shade (S) line up hole in shade tabs (1) with screw (2) in support arm -see
Drawing 2
2 Slip screw (2) up through bottom of tabs(2) hole and thread ball knob (3)
to secure shade.
3 Fixture can now be lamped accordingly.

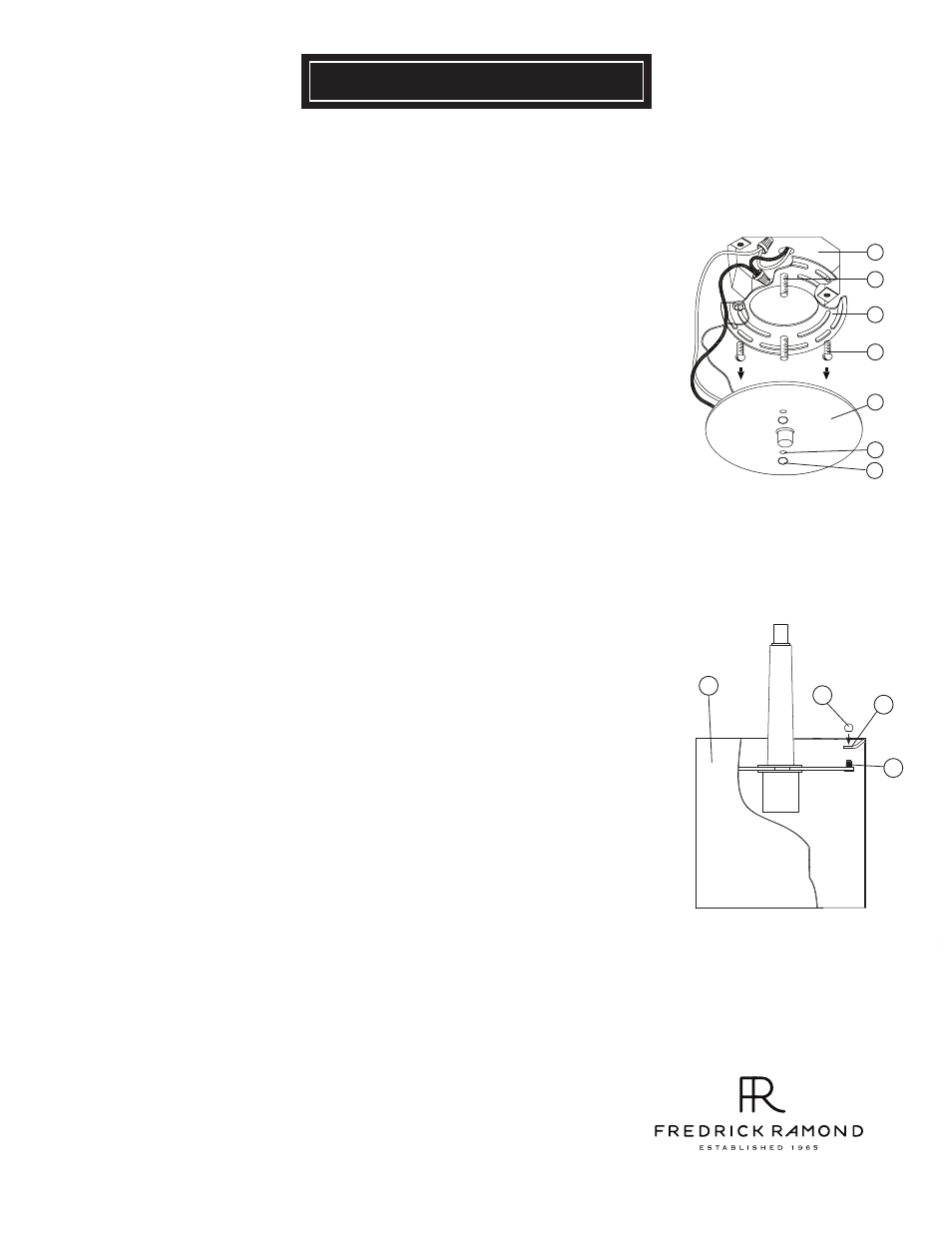

[DRAWING 1]
[DRAWING 2]
j
a
c
e
d
f
b
6.1.11.09
800.421.3517 WWW.FREDRICKRAMOND.COM
1
2
3
S
