assembly instructions

Family: San Clemente Item No. 2441 MB/OI/CB

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. To assemble fixture, thread the (6) end of the center stem (2) into coupler (7)
located in the center of cage assembly (1) - see Drawing 1
2.
Fixture can now be lamped accordingly.
3. Slip roof assembly (3) onto center stem (2) and onto top of cage assembly (1).
4. Slip top finial assembly (4) onto center stem (2).
5. Thread top knob (5) onto end of center stem (2) to secure the roof.

*** The construction of this fixture will be accomplished by first assembling
main body of the fixture, making all necessary electrical connections, and then
mounting the fixture to pre-installed post.

start here

2441

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

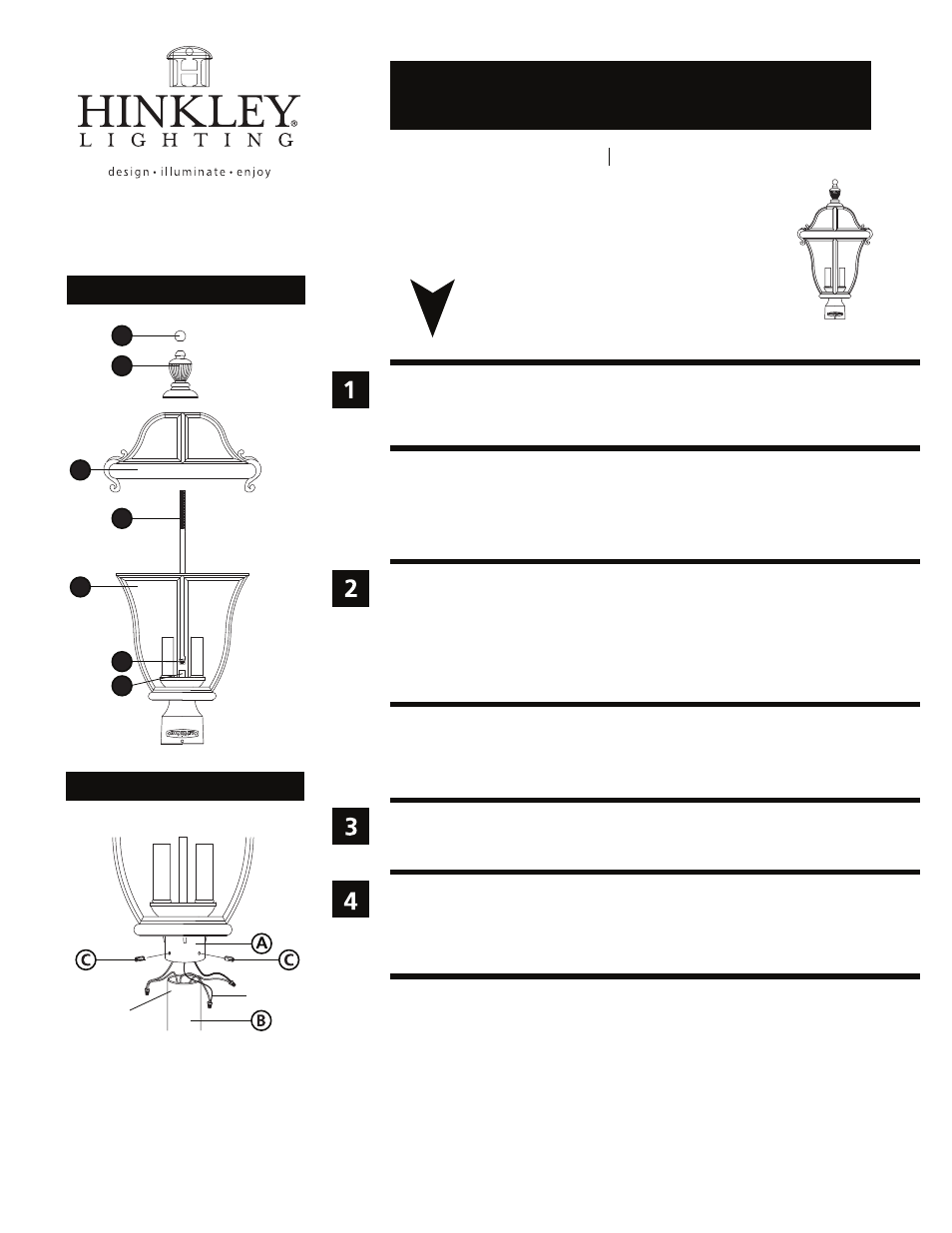

Drawing 2 - Fixture Mounting

Drawing 1 - Fixture Assembly

5

4

2

6
7

3

1

1. To mount fixture, slip post fitter (A) over top of pre-installed post (B) - see Drawing 2.
2. Using the holes in the side of the post fitter as guides, drill three 1/16” diameter
holes in the pole.
3. Now screw in the three sheet metal screws (C) to secure fixture.

ground wires

Mark and

drill holes

prior to

wiring

2.7.08
