Hinkley Lighting KARMA FR41947PAL User Manual

Karma

FR41947

KARMA

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first,

attaching the mounting strap to the junction box, making all necessary

electrical connections, and hanging the fixture from the wall.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

STEP 2

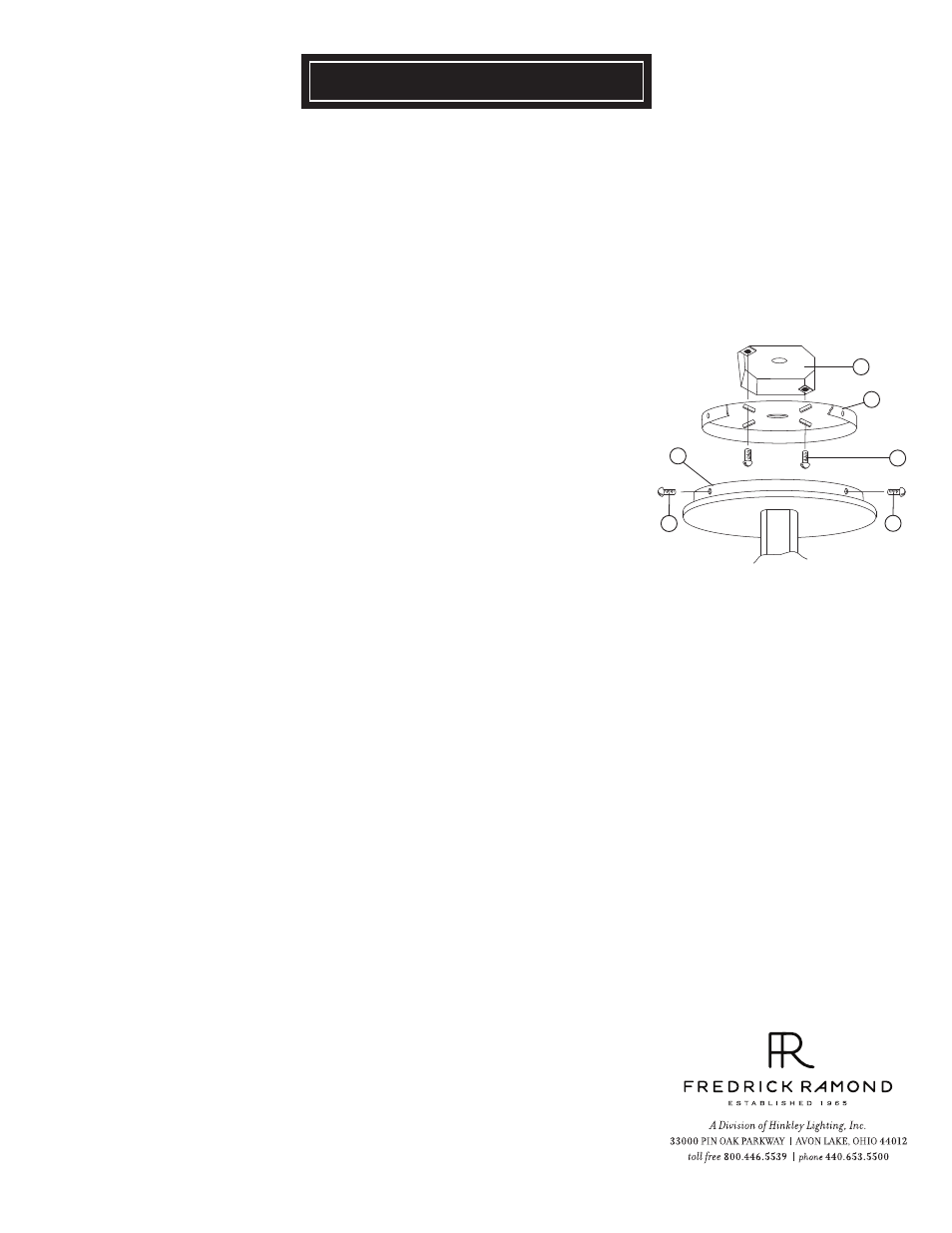

[DRAWING 1]

Bulbs:

60W CAND.

01.01.13

1 Attach mounting plate (a) to junction box (j) rim side away from the wall, with screws

(b) provided

- See Drawing 1.

2 Make all wiring connections following instruction sheet (FRIS 18) provided.

Please follow all necesary precautions.

3 After all connections are made, slip canopy (c) over mounting plate (a) and hold

in poistion while tightening screws (d). NOTE: As screws (d) are tighten canopy

will move backward and tighten up against the wall.
4 Installation is complete and fixture can now be lamped.

5 If mounting to the wall follow same procedures as outlined above.

1 Fixture can be lamped accordingly at this time.
